2-2
4. Disconnect lead wires from compres-
sor terminals.
5. Remove the retaining clips from the
compressor mounts. Remove defec-
tive compressor from cabinet and in-
stall rubber grommets on replacement
compressor.
6. Clean the compressor stubs with an
abrasive cloth such as grit cloth No. 23.
Do not open the compressor stubs.
7. Install the replacement compressor us-
ing the mounting clips previously re-
moved.
8. Connect the compressor leads.
9. Solder a short piece of tubing to the pro-
cess tube (approximately 6 inches
long). Connect the refrigerant tubing
to the compressor stubs using silfos on
copper to copper joints and silver sol-
der and flux on steel to copper joints.

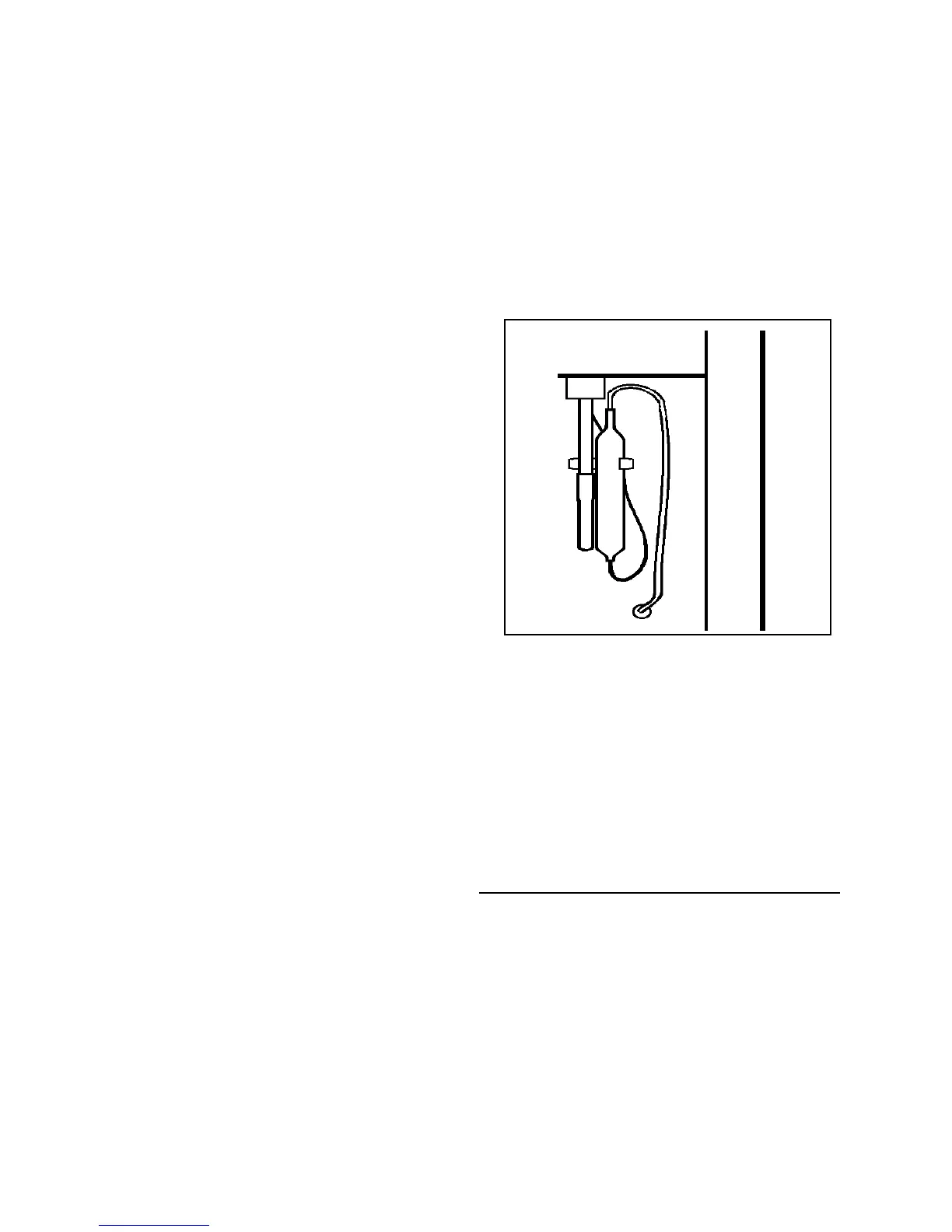

Locate and remove old drier. Install new
drier. The new driver is installed in the fol-
lowing manner:
a. Carefully bend the old drier and tubing
away from electrical parts.
b. Use steel wool or fine emery paper to
clean the capillary tube 3 inches from
the original joint. Also, clean the input
tubing to the drier of 3 inches from the
original joint.
c. Use steel wool or fine emery paper to
clean both ends of the new drier. Use a
knife or file to score the capillary tube 1
inch from the original joint. Use your
finger to break the connection.
d. Make an offset 1/2" from the end of the
cap tube to prevent it from penetrating
too far into the drier.
10. Evacuate, recharge and leak test the
system.
11. Test run the unit to check operation
12. Replace the machine compartment
cover.
CONDENSER REPLACEMENT
The following general information explains
how to successfully replace the condenser
for any model covered in this manual.
e. Cut the inlet tube of the replacement
drier and use pliers to snap off the
scored end.
f. Install the new drier using silver solder
with the proper flux at the Yoder tube
to drier joint. Use silfos at the drier to
capillary tube joint.
