3-11
Yes: (a) Replace LED/Switch board.
No: (b) Replace fountain control board.
WILL NOT DISPENSE ICE OR WATER
1. Press lock button 3 times. If another
LED lights, replace LED/Switch PC
Board.
2. When actuator pad is pressed, does
fountain light come on?
Note: Make sure fountain light bulb is
good!
No: (a) Check actuator switch and
mechanical connections.
(b) Replace PC control board.
Yes:(a) If nothing works (ice door sole-
noid/auger/cube solenoid/water
valve), replace PC control board.
No: (b) If some functions work check for
115 VAC at ice door solenoid/
auger/cube solenoid/water valve
terminals during dispense.
(1) If 115 VAC output exists, replace
component.
(2) If 115 VAC output is not present,
replace control board.
ICE CRUSHER BIN AND SHELF
ASSEMBLY
1. To service the ice/crusher related com-
ponents, turn the ice maker off by lift-
ing the shut off arm. Remove the bin
assembly.

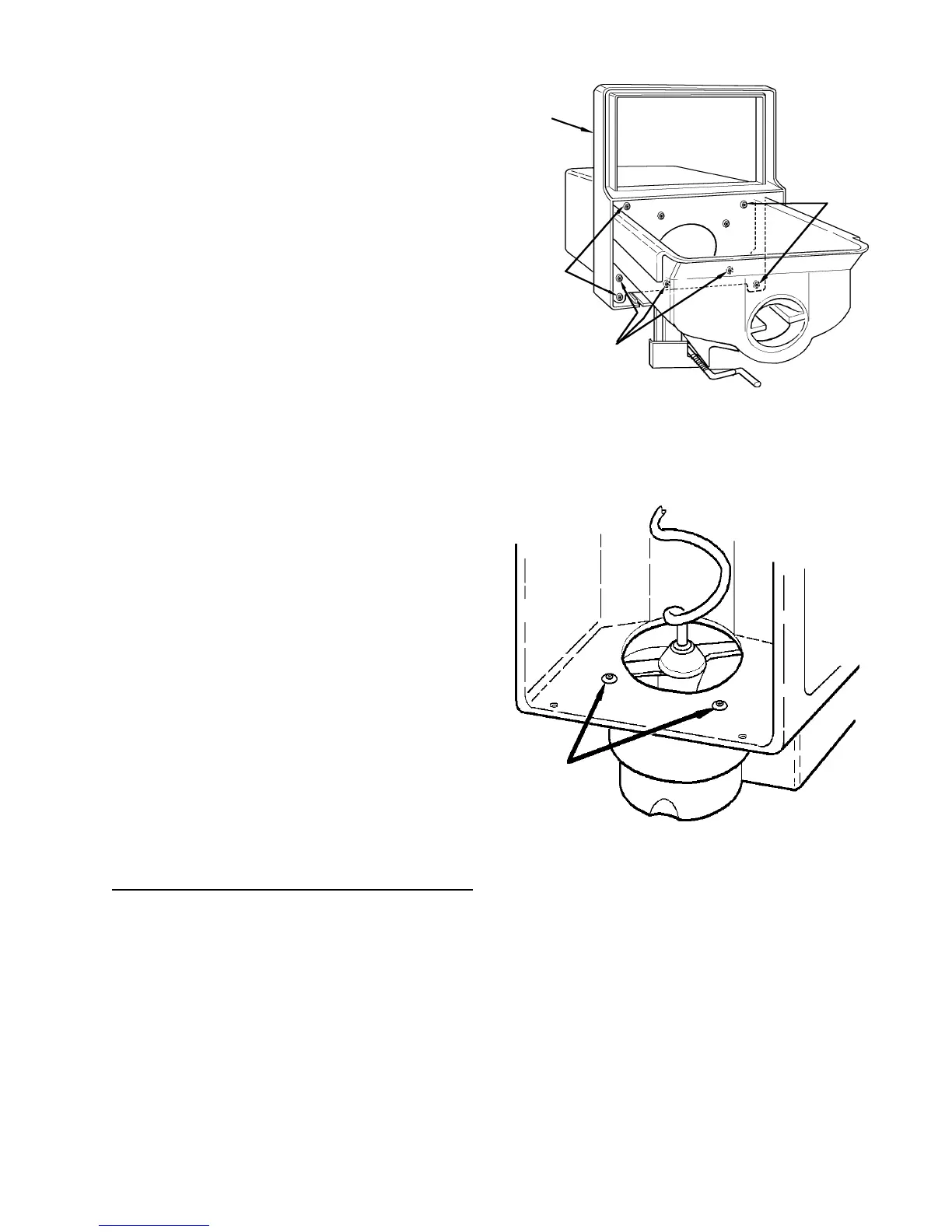

2. Remove the four bin front mounting
screws.
BIN FRONT
MOUNTING
SCREWS
BIN FRONT
CRUSHER HOUSING
MOUNTING SCREWS
3. Place the bin assembly on the crusher
housing.
INSIDE OF BIN
CRUSHER HOUSING
MOUNTING SCREWS
4. Care should be taken when removing
the control rod spring to ensure it does
not snap back on your finger.
BIN FRONT
MOUNTING
SCREWS
To Next Page
