4. Place slide selector in center position.
5. Remove the three fountain bracket
mounting screws. (See drawing in the
lower left column.)
6. Carefully pull the assembly out of the
fountain housing. You now have full ac-
cess to the solenoid, dispenser mecha-
nism, PC delay board, lock switch, light
socket, and the light switch.
7. To repair the assembly, disconnect
electrical quick disconnect.
Checking and Replacing the Crusher
and Water/Cube Switch:
1. Disconnect the unit from the power
source.
2. Perform steps 1 through 3 of Ice & Wa-
ter Fountain Bracket Assembly
Removal.
3. Remove the two slide selector mount-
ing screws. (See drawing in the lower
left column.)
4. Remove the slide selector.
5. Check the continuity of the switch. If
defective, go to step 6.
6. Remove the switch mounting screw.
7. Remove the switch.
8. Remove the wire leads.
9. Install new switch in reverse order of
removal.
Ice and Water Fountain Bracket
Assembly Removal
1. Pull straight out to remove the grill
from the fountain sump.
2. Remove the two escutcheon mounting
screws.
3. Raise the escutcheon up and off the
fountain assembly.

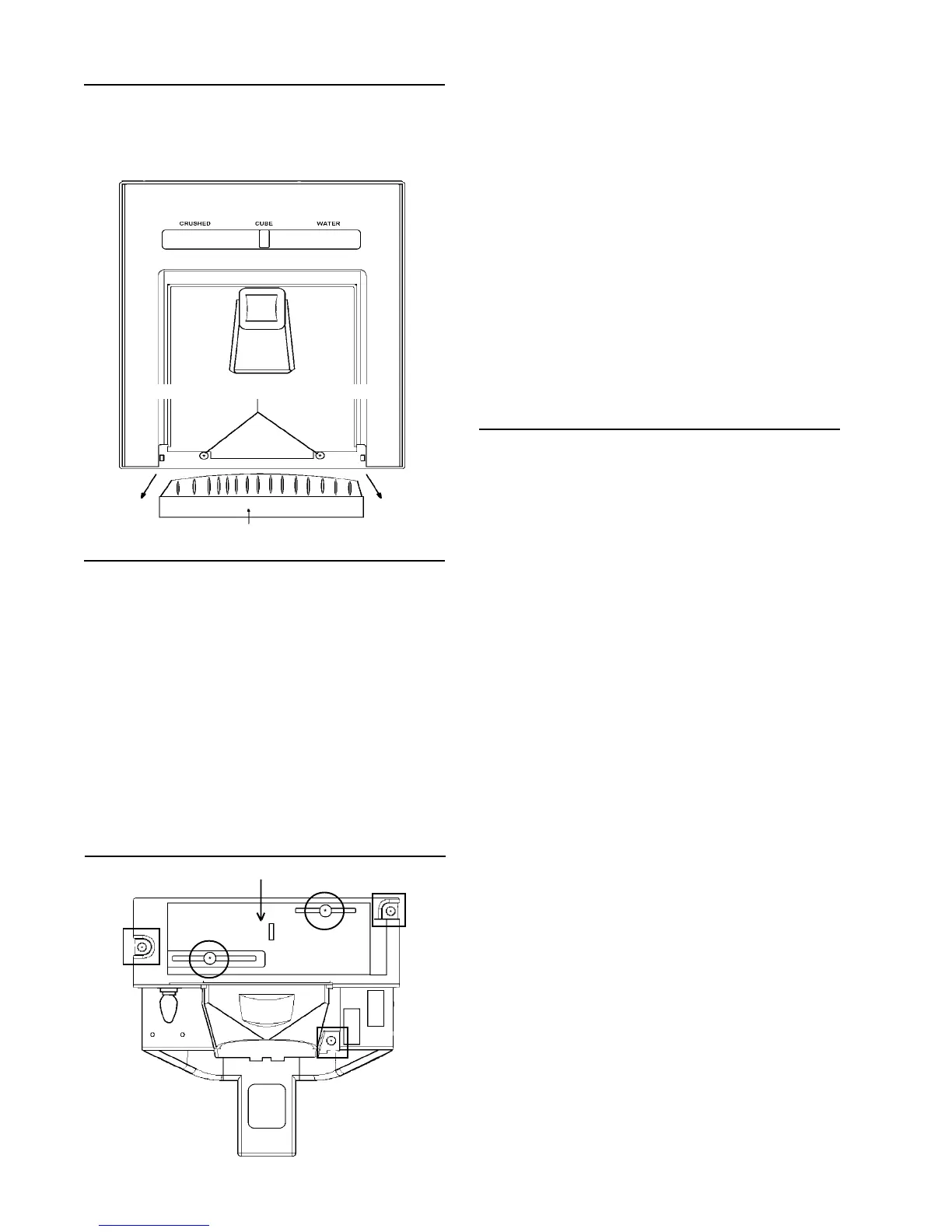

SLIDE SELECTOR CENTERED
ESCUTCHEON MOUNTING SCREWS
GRILL
FOUNTAIN ASSEMBLIES - Manual
Slide Control
To Next Page
