2-18
The condenser fan motor is connected in
parallel with the compressor. If the com-
pressor runs but the motor doesn't, the
motor is either defective or disconnected.
If neither operates, check the cold control,
defrost timer, and the cabinet wiring.
To Check The Condenser Motor
Direct
1. Disconnect the unit from the power
source.
2. Remove the insulated cover from the
rear of the cabinet.
3. Disconnect the condenser fan motor
lead connector on the motor terminals.

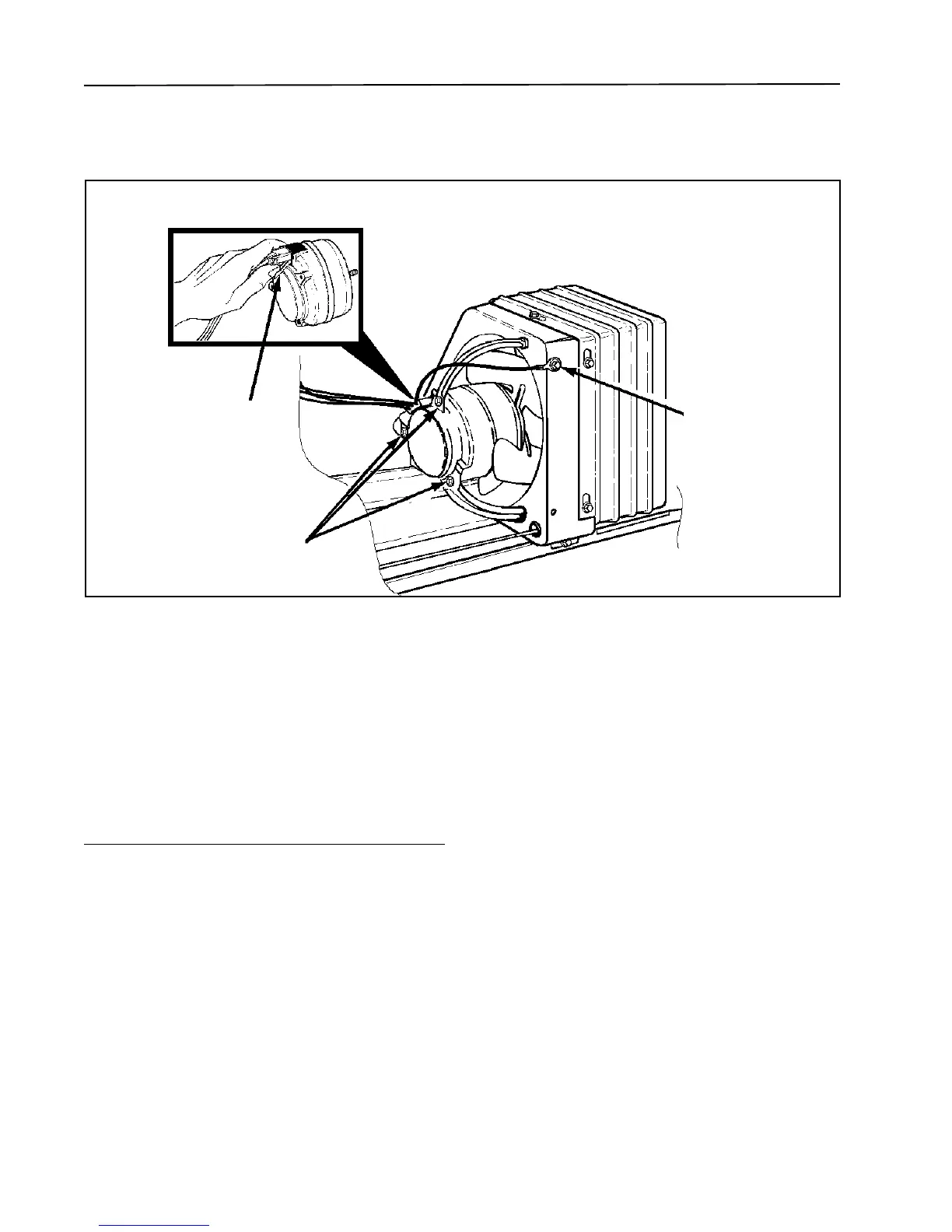

To remove the lead connector from the
condenser fan motor, grasp the connec-
tor with your thumb inserted between the
connector and the locking lever as shown.
Pull the connector away from the motor.
4. Attach a 115v test cord to condenser
motor and plug into a power source. If
the motor fails to operate, it is defec-
tive and must be replaced.
Remove Motor
Wire Harness
Lock Lever
Remove Fan
Motor Bracket
Screws (3)
Remove Ground
Wire Screw
CONDENSER FAN MOTOR
