43. Cabinet
Service
manual
487 03 29 41
8
43
Sliding Door
(continued from the previous page)

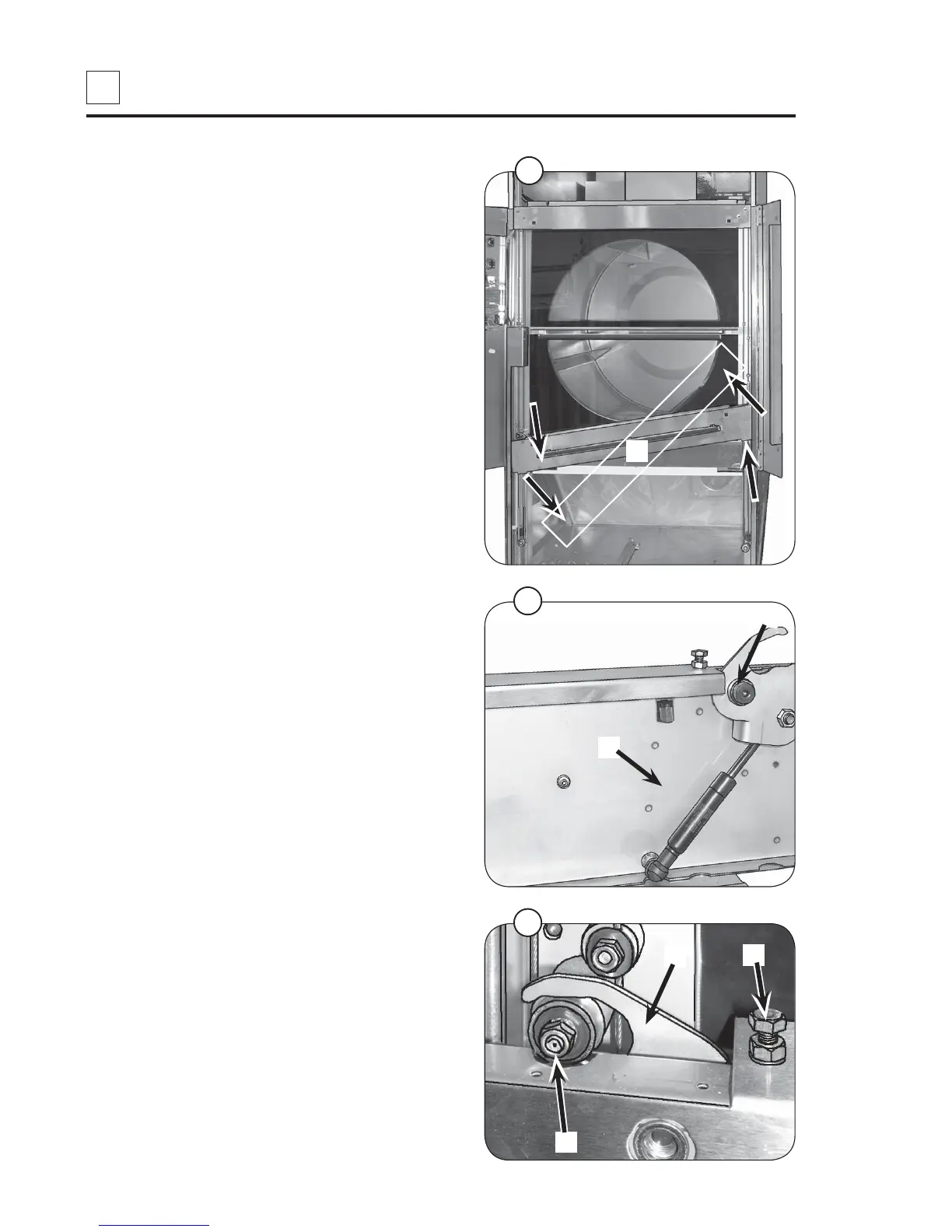

Locking plate and gas cylinder
1. The cross member D is removed by pulling it
towards the clock, fig. 1.
2. Gas cylinder C or locking plate A can now
be replaced, fig. 2.
3. If the guide bearing B does not engage
properly in the locking plate A, the locking
plate’s rear stop can be adjusted with screw F,
fig. 3.
1
D
A
2
3
F
C
B
A
