487 03 29 41
7
43. Cabinet
Service
manual
43
Sliding Door
Locking plate and gas cylinder

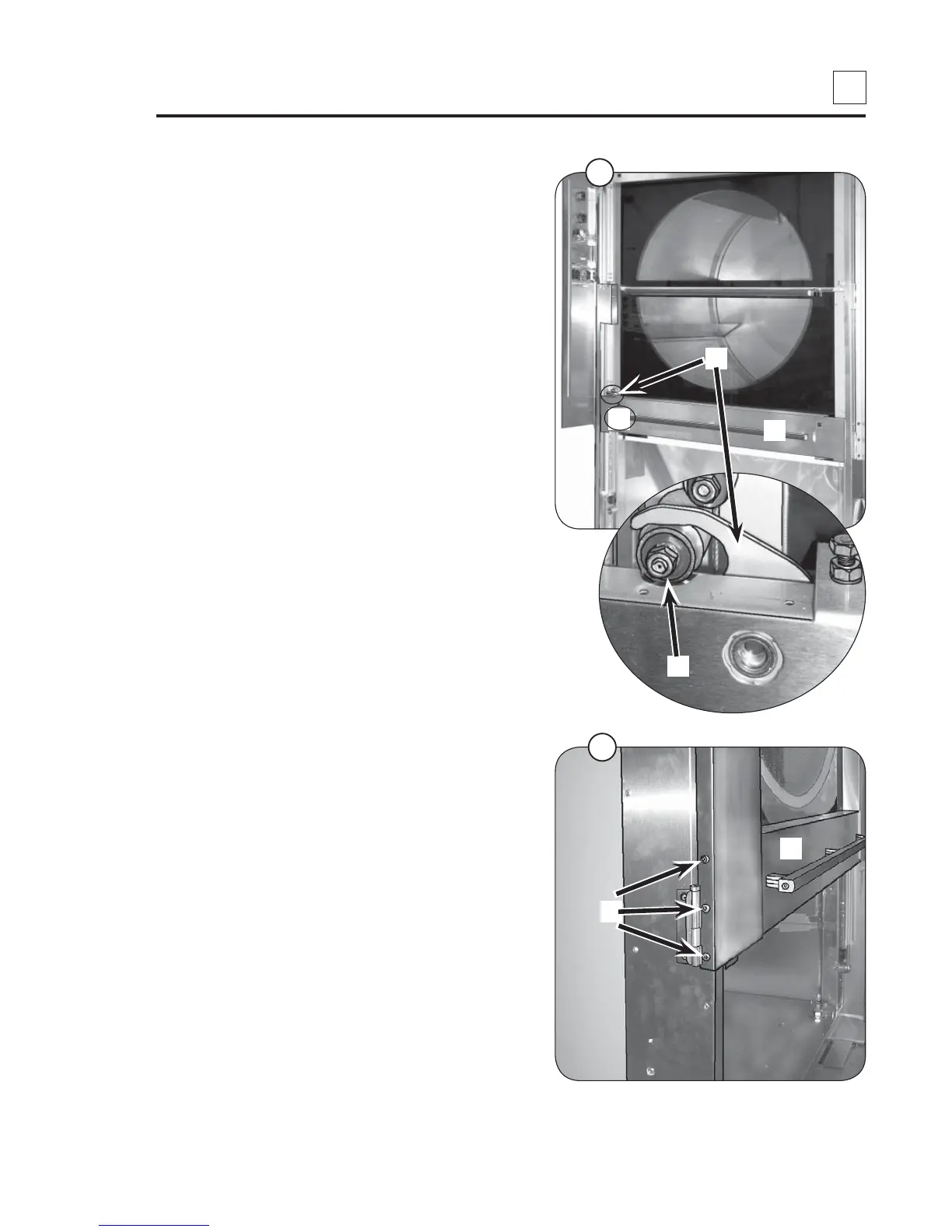

1. The 2 sliding doors are kept closed by a
locking plate A that engages in a guide bearing
B when the 2 sliding doors are closed.
The locking plate is held in position by a gas
cylinder C that is installed on the reverse of the
member, fig. 1.
2. If the locking plate or gas cylinder is
defective, the member D is removed by
undoing the 3 screws E on either side, fig. 2.
Continued on the following page.
1
2
A
D
D
C
E
B
To Next Page
