487 03 29 41
3
21. Controls
Service
manual
21
487 03 29 41
Inside operating box:
User module circuit board
1

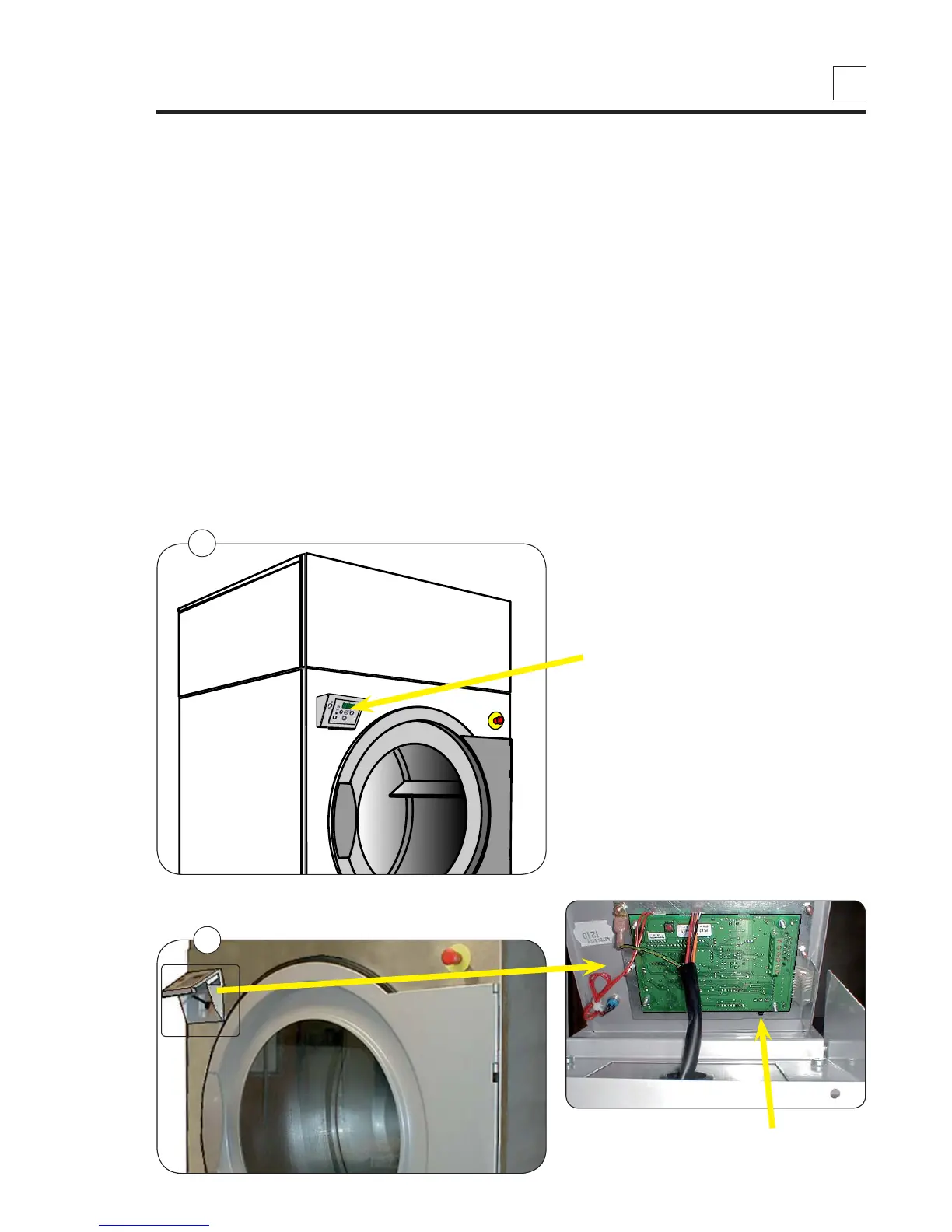

Control locations
Tumble dryer with standard loading door
User module circuit board
Fig. 1 The user module is placed in the operating box.
The user module contains a circuit board with display,
indicator lamps, a connector for the user keypad, and
electronics to communicate commands to the main
circuit board via a serial interface.
Fig. 2 The circuit board also contains a slide switch A
for changing to programming mode.
See Selecta Control Service Manual for programming
the dryer.
A
2
