21. Controls
Service
manual
487 03 29 41
4
21

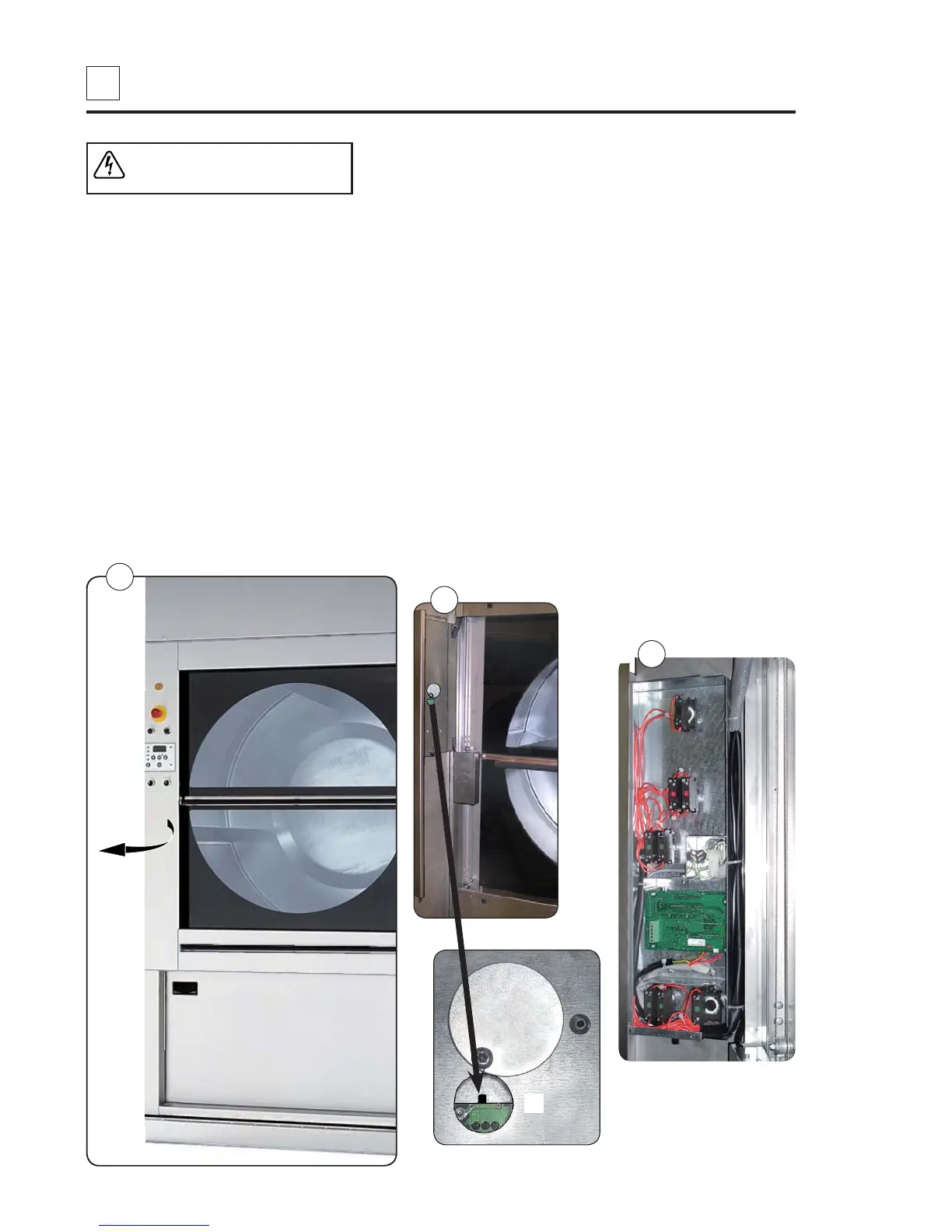

Control locations
Tumble dryer with Sliding Door
Fig. 1 The user module is placed behind the panel.
The user module circuit board contains display, indicator lamps, a connector for the
user keypad, and electronics to communicate commands to the main circuit board
via a serial interface.
Fig. 2 The circuit board also contains a slide switch A for changing to programming
mode.
See Selecta Control Service Manual for programming the dryer.
Fig. 3 When replacing/repairing the circuit board or buttons, the protective screen
must be removed.
Note! Remember to mount protective screen after service.
Remember to disconnect the power!
Warning!
High voltage behind the screen
A
1
2
3
