42. Drum with bearing
Service
manual
42
1
Replacing supporting rollers,
bearings or drum
To serial no.: T3900/TD100 0312/000357
T31200/TD135 0312/000113.
The drum is rear suspended in a bearing where
the bearing housing is mounted in a cross beam
mounted on the inner back plate.
At the front the drum rests on two supporting
rollers which are mounted on a console each.
To replace supporting rollers, bearings or drum
follow the steps below:
2 people with a crane, a truck or another
lifting equipment are recommended for
dismounting the drum.
1. Disconnect the power to the dryer
2. Dismounting front plate:

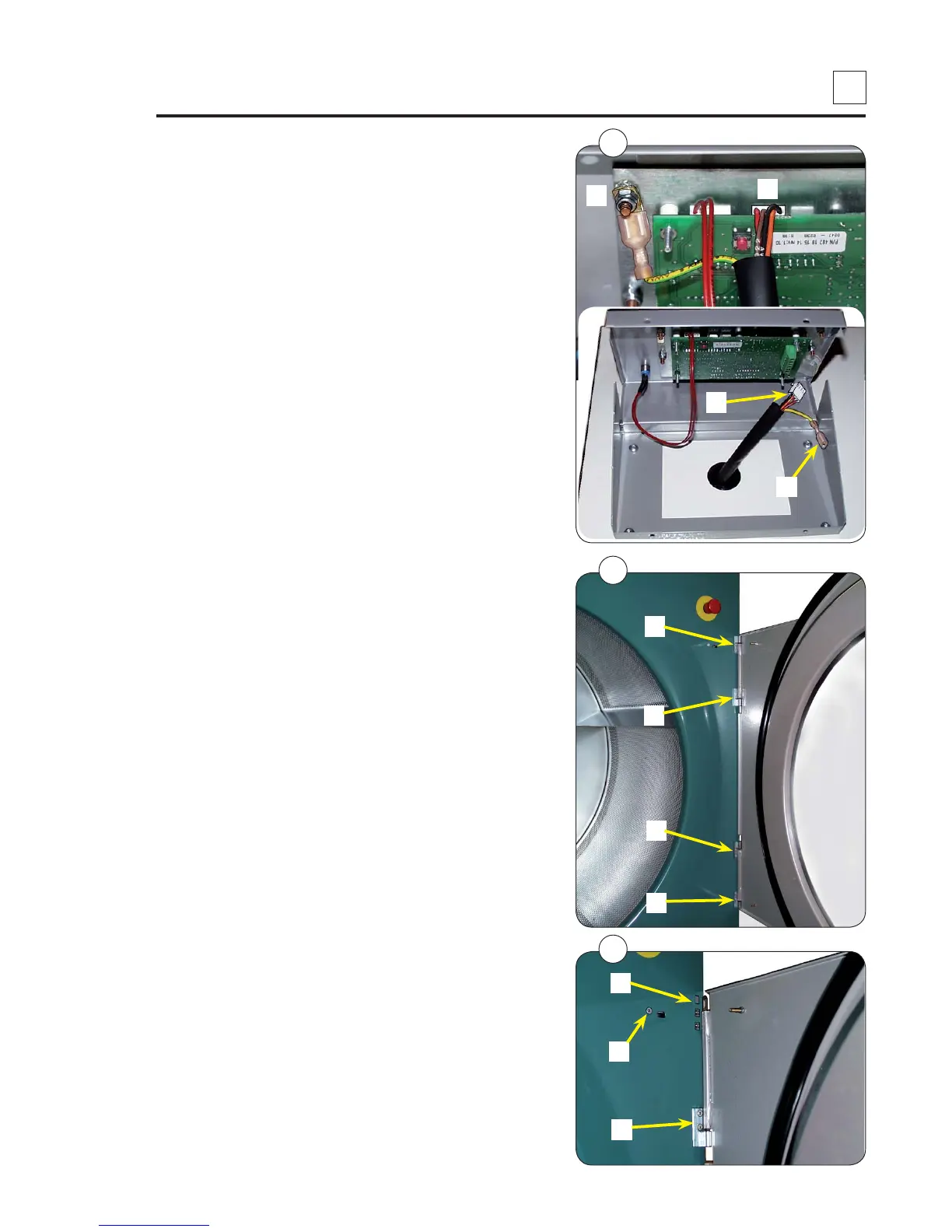

a) Open control box and remove multiple
plug A and earthing conductor B, fig 1.
b) Remove door by dismounting hinges.C,
fig. 2.
c) Lift off the door and dismount hinges D
and screw E, fig 3.
Continued on the following page
A
B
2
C
C
A
B
D
3
C
E
D
D
