Replacing supporting rollers, bearing or drum
(continued from the previous page)

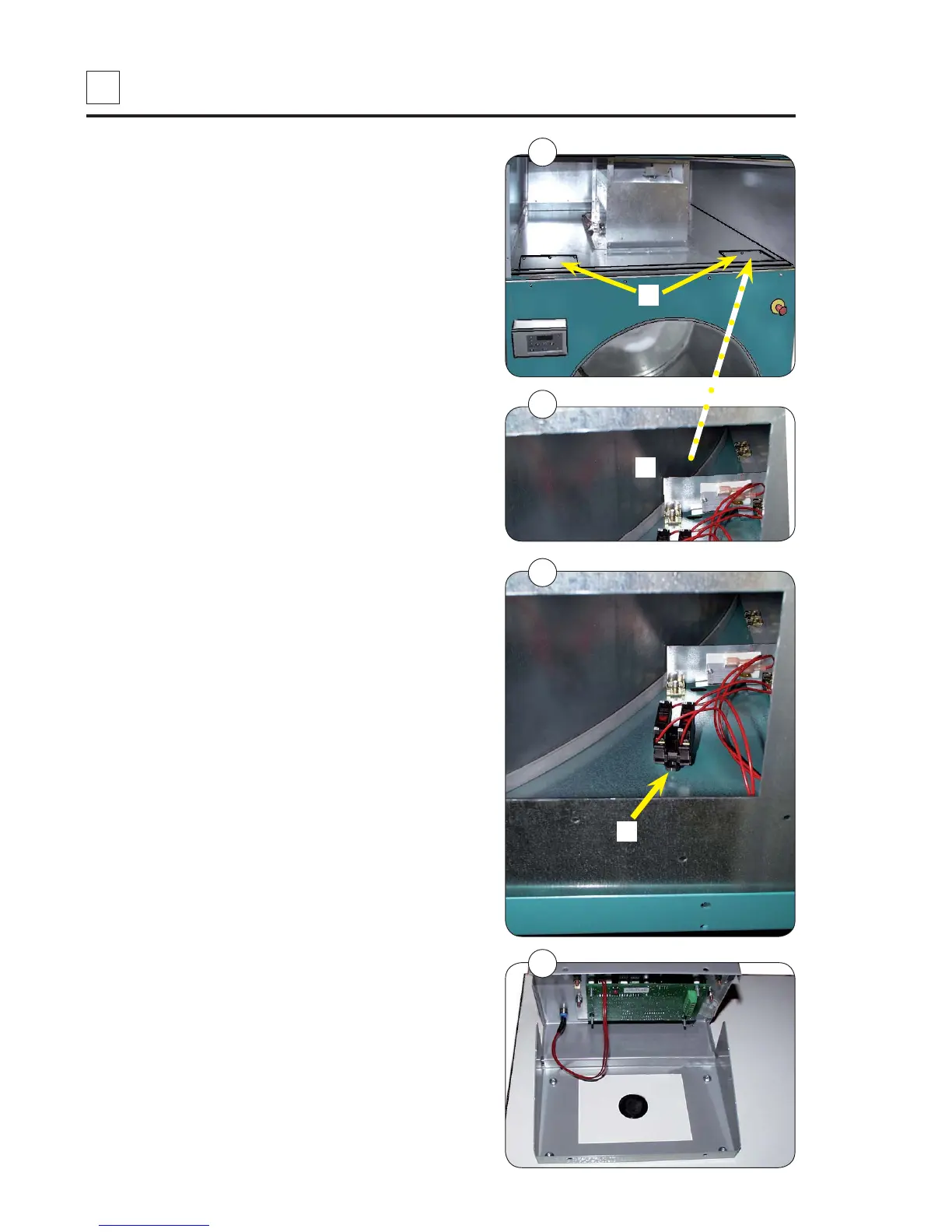

d) Open front shutter.
e) Dismount service cover plates F, fig 4.
Service cover plate for emergency stop
socket, fig 5.
f) Tip a screw driver under the loop G in order
to dismount the emergency stop with wires.
Note! When mounting the loop G it must face
upwards, fig 6.
g) Pull the control box wire behind the front
plate, fig 7.
Continued on the following page.
