42. Drum with bearing
Service
manual
487 03 29 41
8
42

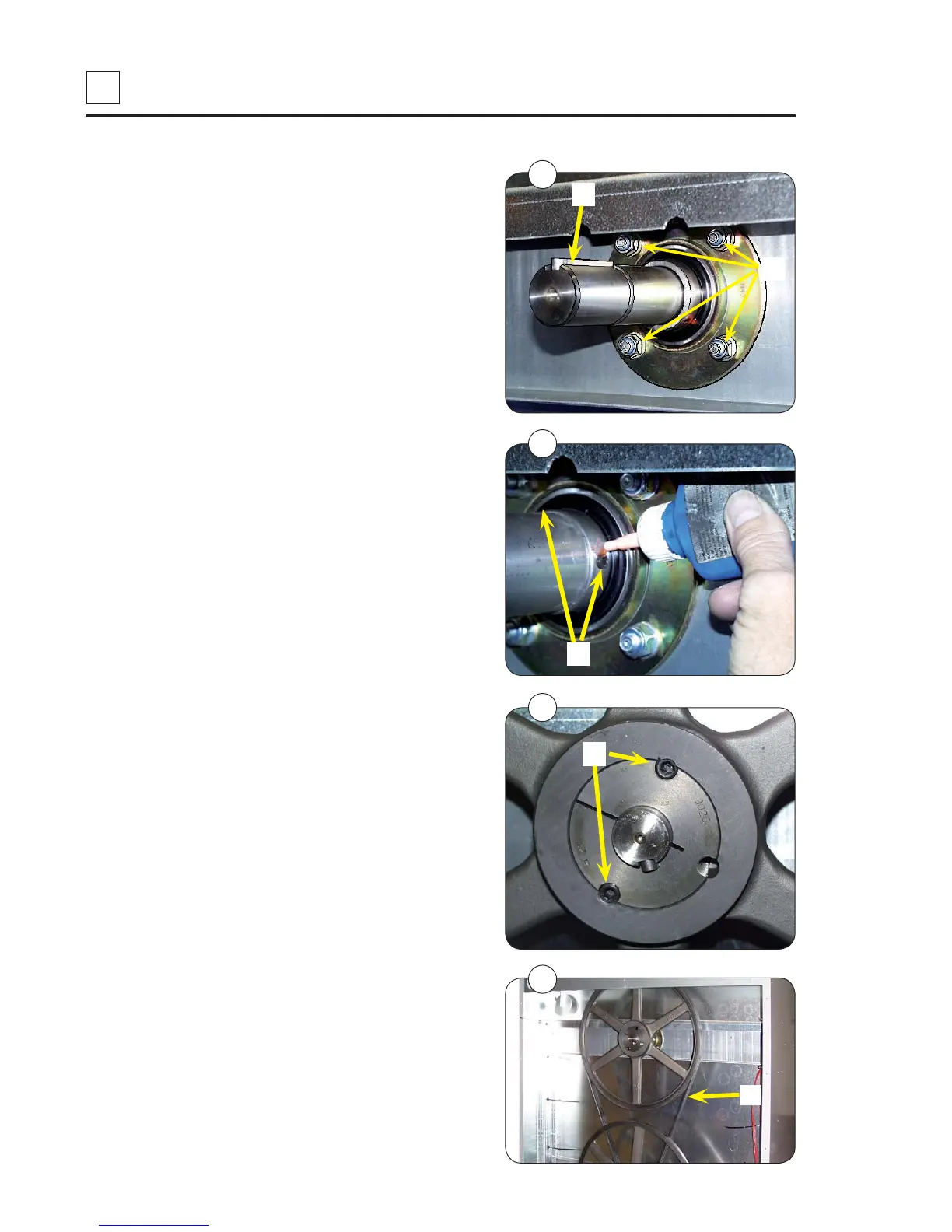

Remount bearing and drum
(continued from the previous page)
9. Remount in the opposite order.
10. Place drum carefully. Use Antifret paste or
similar quality to lubricate the bearing surface.
Note! After mounting the drum tighten the
4 nuts O in the bearing disc using 40 Nm.
11. Mount wedge M, fig 17.
12. Fasten the 2 tailstock screws Q in the outer
ring using Omnifit Seal 40 Nm or similar
quality and tighten them using 16 Nm, fig 18.
13. Mount pulley with clamping sleeve.
14. Tighten the 2 tailstock screws using 90 Nm,
fig 19.
15. Mount V-belts J, fig 20.
Tighten the belt, see section 11.
18
Q
17
M
O
19
K
20
J
