Replacing supporting rollers, bearing or drum
(continued from the previous page)

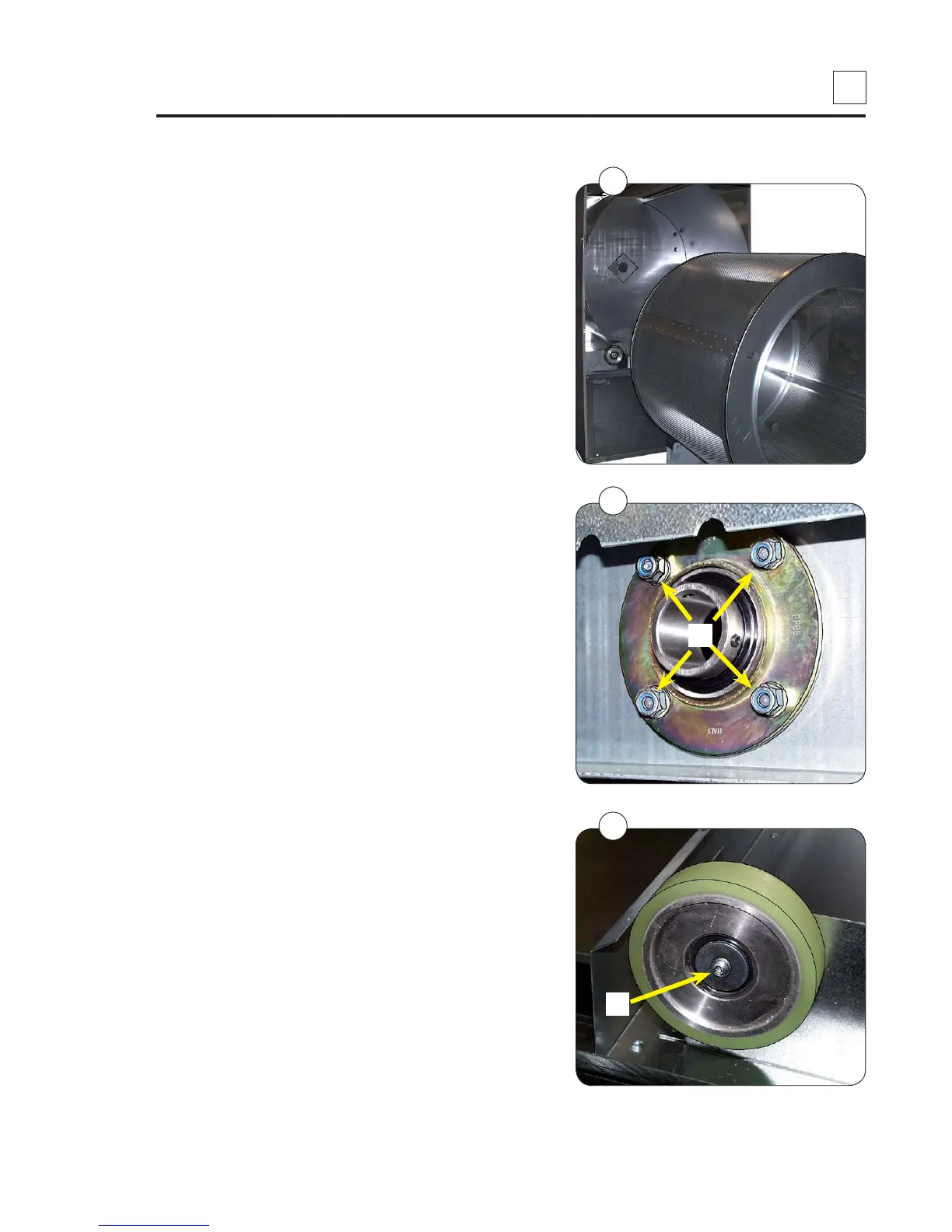

6. Pull the drum out carefully using a crane,
a fork truck or another equipment, fig. 14.
7. Replacing bearing:
a) Dismount defective bearing.
b) Mount new bearing and mount the 4 nuts O
without tightening them, fig. 15.
8. Dismounting/replacing supporting rollers:
a) Dismount screw P with washer and bush,
fig 16.
Note! Supporting rollers are replaceable
without dismounting the drum
Continued on the following page.
