42. Drum with bearing
Service
manual
487 03 29 41
6
42
11
12
13
Replacing supporting rollers, bearing or drum
(continued from the previous page)

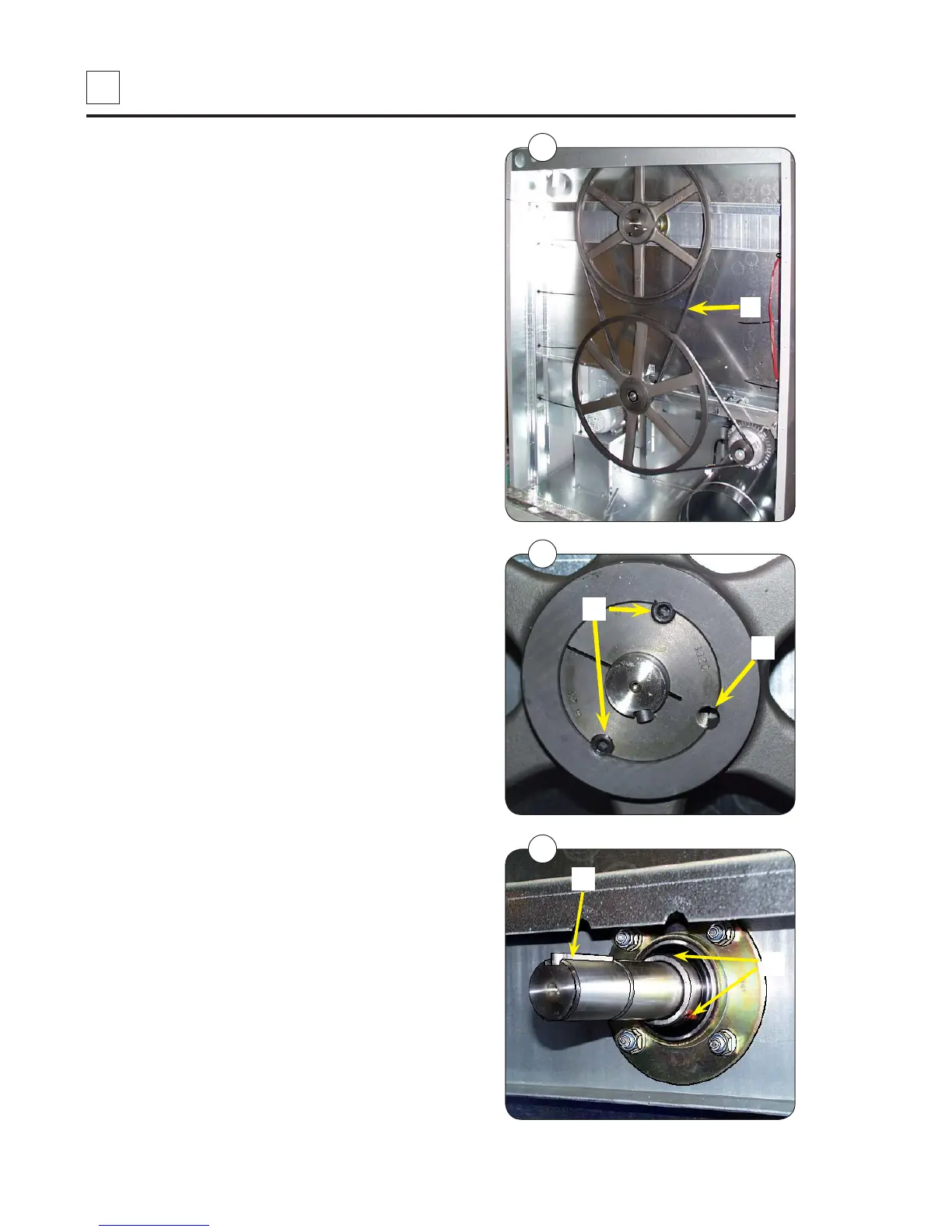

3. Dismount back plate and remove
the 2 V-belts J, fig 11.
4. Remove screws K in order to dismount
the pulley.
Mount one screw in hole L.
The clamping sleeve is loosened when
hole L is being used, fig 12.
5. Dismount pulley, fig 13.
Dismount wedge M.
Loosen the 2 tailstock screws N.
J
K
L
M
N
