Use and maintenance manual
Page 33
Engineering Department PHONE: +39 0532 829 965 - FAX: +39 0532 829 177
E-Mail: support@elenos.com
3. USER INSTRUCTIONS
3.4.10.
RDS Encoder
Programming

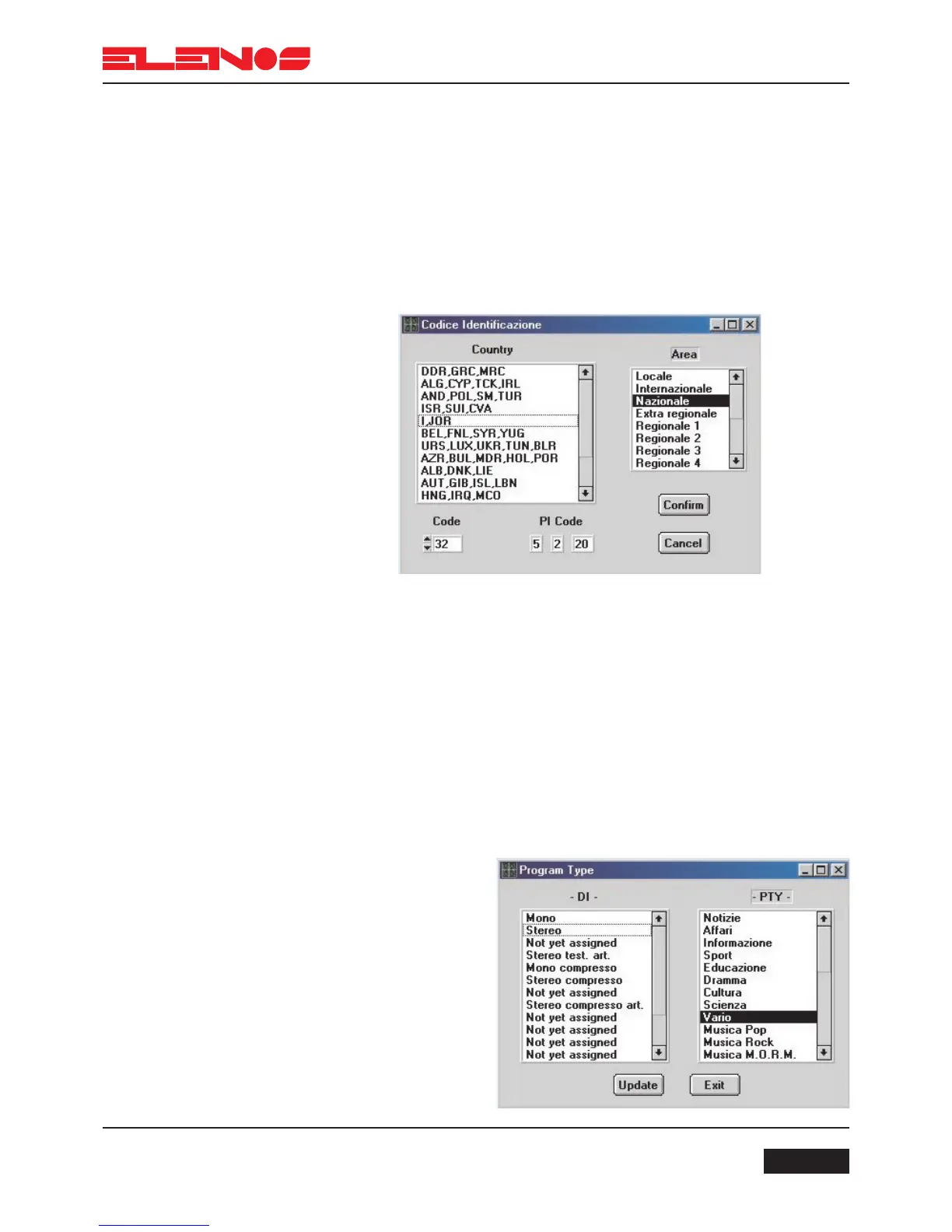

Program identification PI
PI is an identification code comprising 3 fields: COUNTRY + DIFFUSIONE +
CODE.
COUNTRY is a numerical value from 0 to 15 (0,F in hexadecimal) which identi-
fies the country of the broadcaster (Italy - code 5).
DIFFUSIONE is a numerical value from 0 to 15 (0,F in hexadecimal) which iden-
tifies the area of coverage of the broadcast signal (local, regional, national, internatio-
nal).
CODE is a numerical value from 0 to 255 (00,FF in hexadecimal) which identi-
fies the broadcaster; the code is assigned by an authorised organisation.
1. To program PI just click on the corresponding key with the mouse.
2. Double-clicking on the item will automatically enable the relevant codes.
3. Press the CONFIRM key to confirm the choice.
4. To exit without saving, press CANCEL
Program Type and Decoder Identification DI
PTY is a code with 32 values (from 0 to 31) which identifies the type of transmis-
sion being broadcast.
DI identifies 16 different operational modes that the broadcaster can use.
- Click the PTY key with
the mouse to start program-
ming
- To store the selection,
press UPDATE.
- To exit without saving,
press EXIT.
