Elmo MO-1 - Bottom Panel Controls; RGB Output Resolution Dip Switch

19

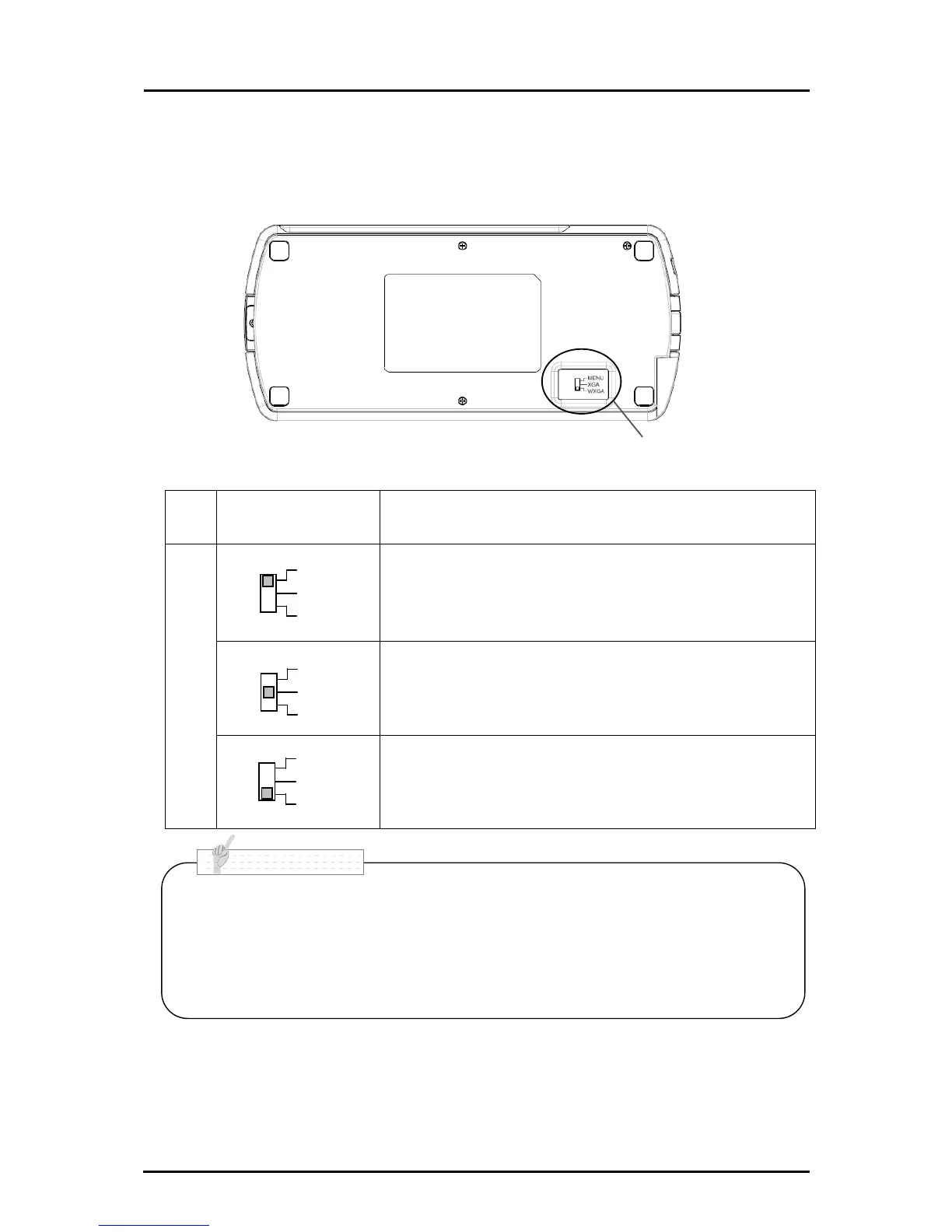

Bottom panel
Output resolution from the RGB OUT terminal can be changed with the dip switch.
Change Resolution
Switch
Function
MENU
Analog RGB output resolution can be changed from
the OSD menu settings.
XGA
Analog RGB output resolution is fixed to XGA.
WXGA
Analog RGB output resolution is fixed to WXGA.
N o t e
・ When the dip switch is set to XGA or WXGA, the resolution setting of the OSD
menu is disabled.
・ Perform the output resolution change with the power supply turned off .
When the power supply turned on, output resolution does not change according to
the dip switch setting.
①
MENU
XGA
WXGA
MENU
XGA
WXGA
MENU
XGA
WXGA
①
