SETTING
UP

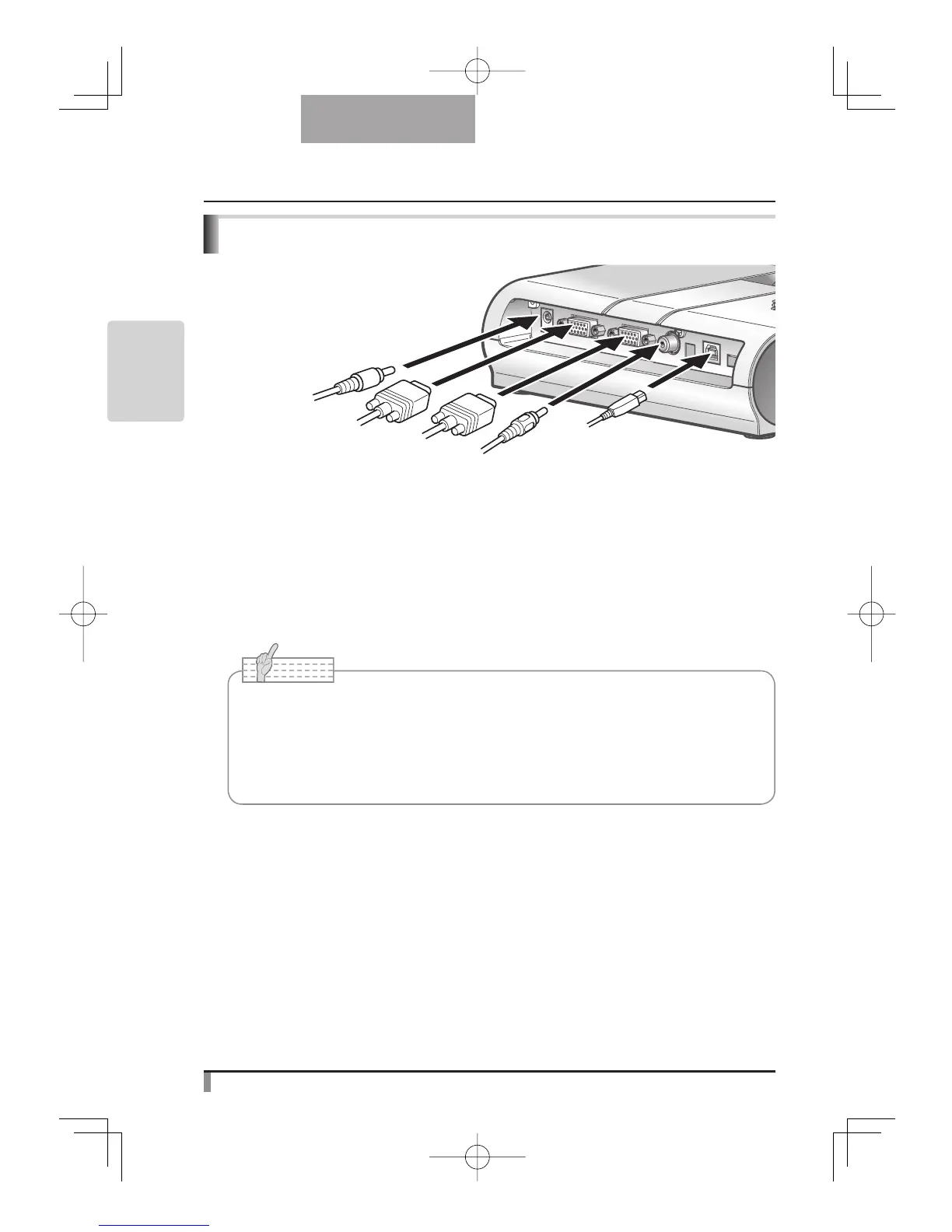

Connecting of AC adapter and Video cable
(1) Connecting to the unit with analog RGB input terminal equipped
Connect the supplied analog RGB cable to the [RGB OUT] terminal on the rear panel.
• The display position may be displaced from the center of the screen. In such case, adjust
the horizontal and vertical positions manually from the connected device.
• Vertical strips may appear on the projector or PC monitor screen. This can be mitigated
by manually adjusting the dot clock from the connected device.
(2) Connecting to the unit with analog RGB output terminal equipped
Connect the supplied analog RGB cable to the [RGB IN] terminal on the rear panel.
(3) VIDEO OUT terminal
• To TV monitor
(2) RGB IN terminal
• To PC
(1) RGB OUT terminal
• To projector
• To PC monitor
(5) DC IN 12V terminal
• To power plug
(4) USB terminal
• To PC
Note
• When using a laptop PC with an external output mode switching, set the laptop PC
side to the external output mode after pushing the manual operation button [PC] of this
equipment.
• In the power OFF standby state, images that have been input into the [RGB IN]
terminal will be output from the [RGB OUT] terminal.
