ELNA eXpressive920 - Printed Circuit Board F

12
Setscrews
Connector A Printed circuit
board F

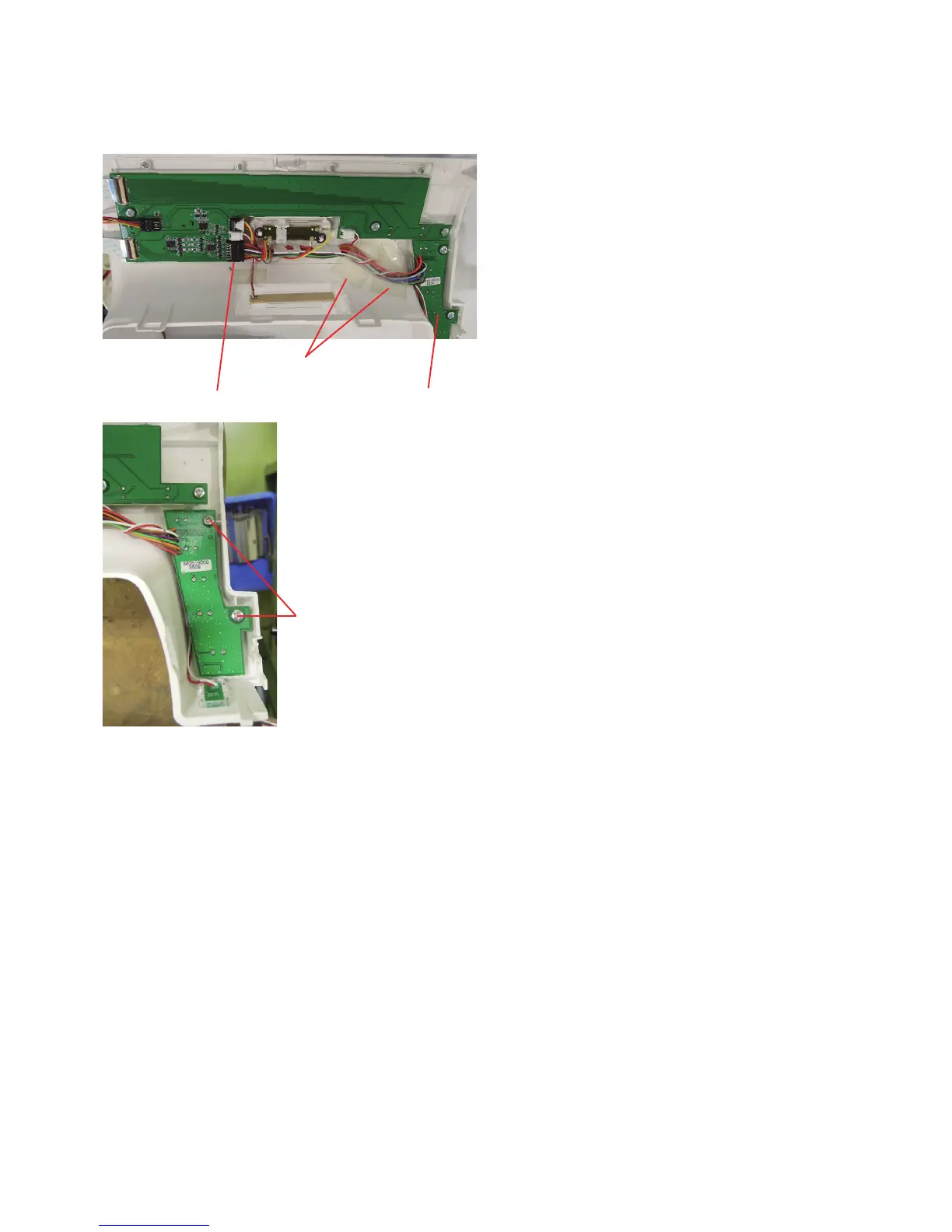

Printed circuit board F
To remove:
1. Remove the front cover (see page 5).
2. Disconnect the connector A from the circuit board K.
Remove the sticky tapes (2 places).
3. Remove the setscrews (2 pcs), and the circuit board F.
To attach:
1. Follow the above procedure in reverse.
2. Fix the connector cords with sticky tapes (Sekisui Chemical
Polyesper Type 900 or 3M 44D-A Electrical Tape)
Replacing Electronic Components
Sticky tape
