ELNA eXpressive920 - Removing Y-Motor

55

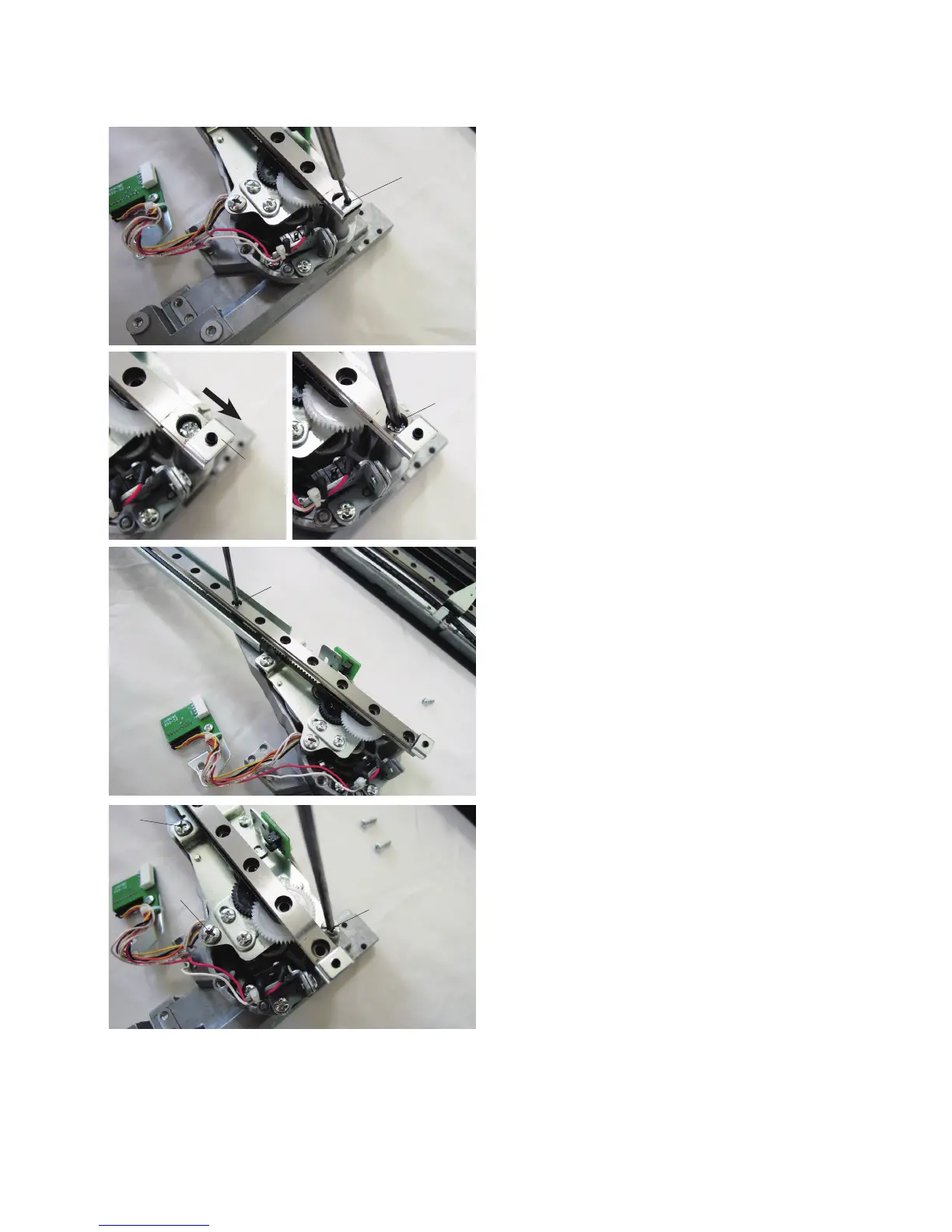

Mechanical Adjustment
•RemovingY-motor
⁄3 Loosen the hexagonal socket screw !1.
!1
!2
!3
⁄4
Slide the stopper !2 in the direction of arrow to access the
setscrew
!3.
Remove the setscrew
!3
!4
⁄5
Remove the setscrew !4, !5, !6 and !7.
!5
!6
!7
