Auxiliary power supply case unit
To remove:
1. Remove the belt cover, top cover, front cover and the rear
cover (see pages 1, 2, 5 and 6).
2. Disconnect the connector of the auxilliary power supply
unit from the printed circuit board A (see page 8).
Cut the tie band of the ferrite core and remove the cords
from the board.
3. Disconnect the connector from the case.
4. Remove the setscrews (2 pcs.).
5. Remove the auxiliary power supply case unit from the
machine.
To attach:
Follow the above procedure in reverse.
Replacing Electronic Components

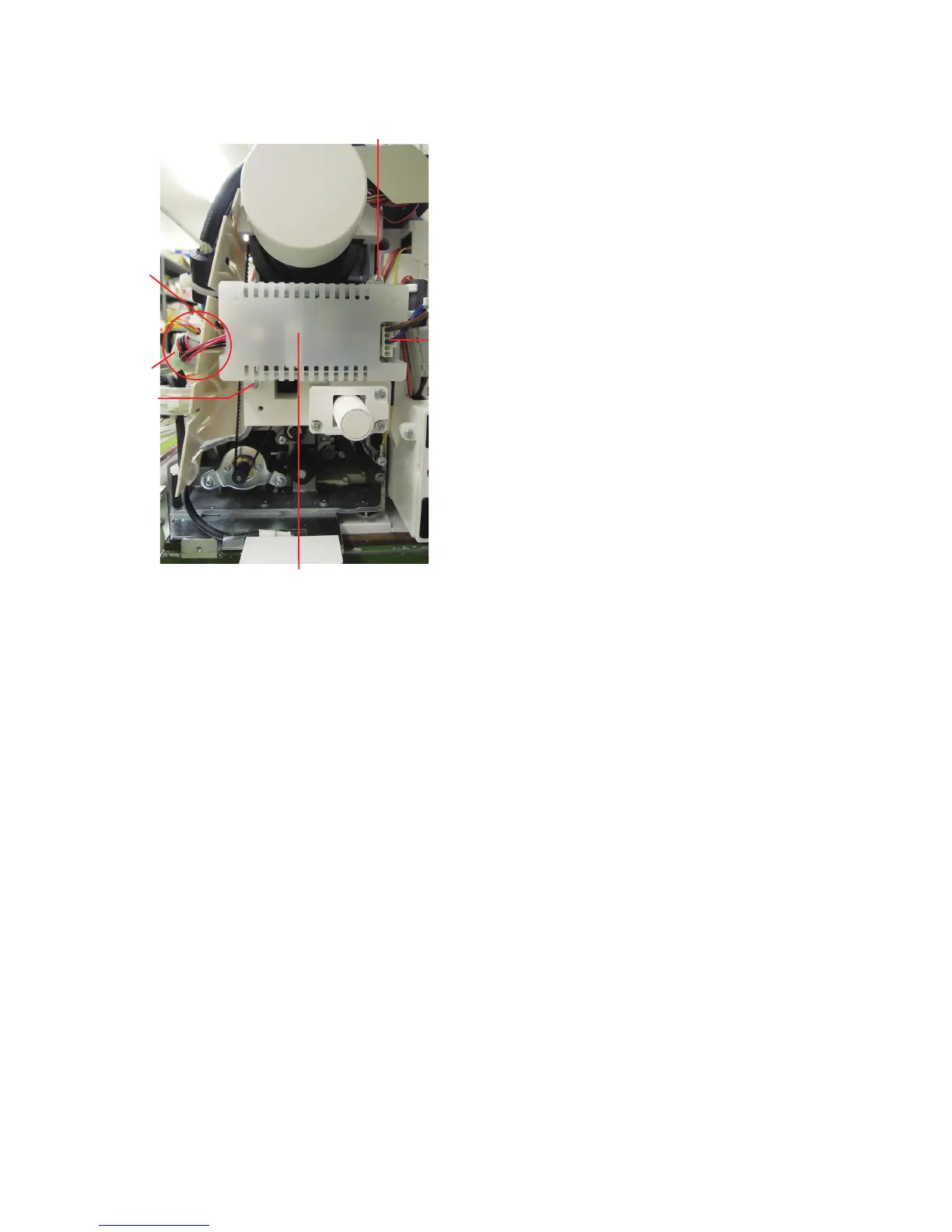

Setscrew
Connector
Auxiliary power supply case unit
Ferrite core
Tie band
Setscrew
