5
Front cover
Hole G

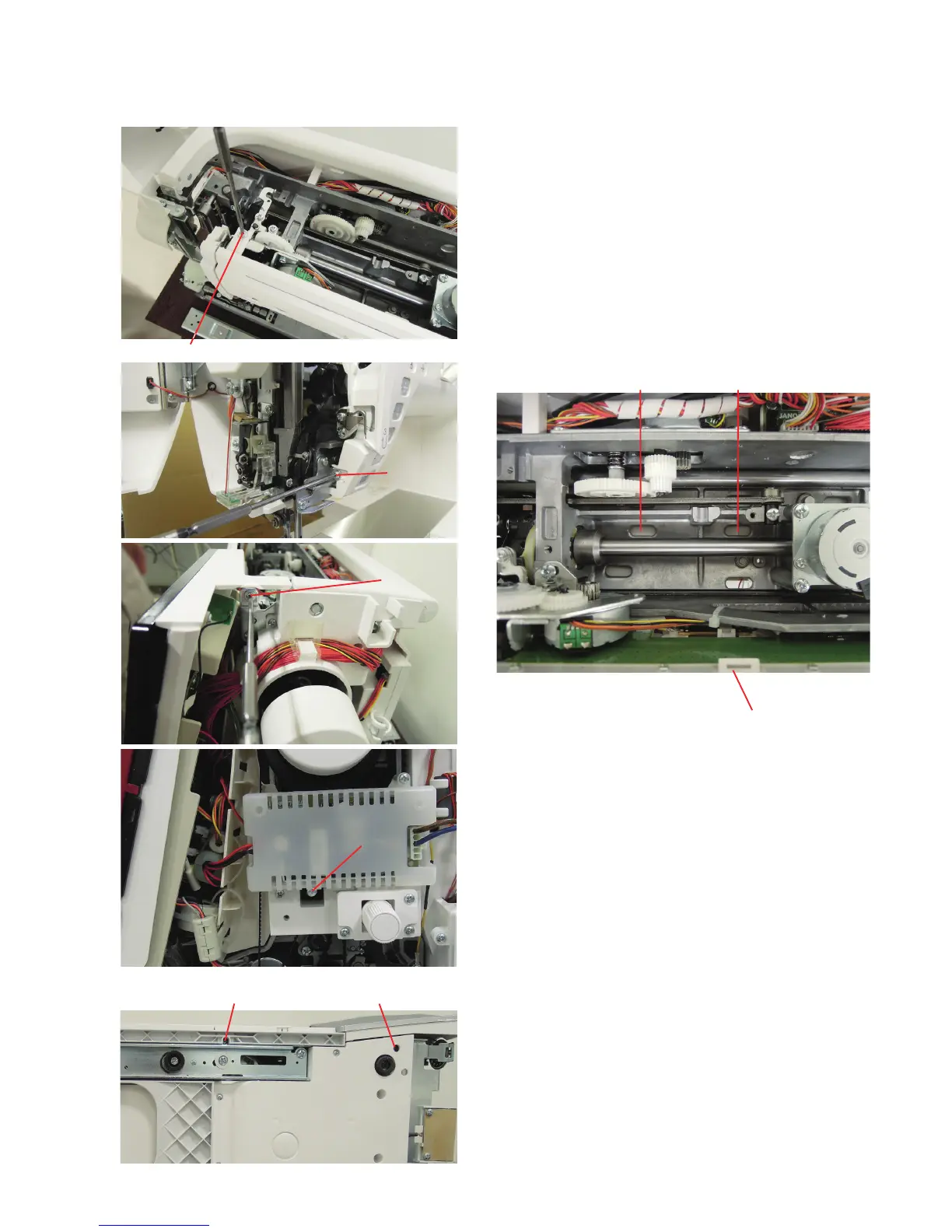

Replacing External Parts (5)
Hole H
Front cover
To remove:
1. Remove the belt cover and top cover (see pages 1 and 2).
2. Loosen the setscrews (A, B, C, D, E and F).
3. Push down the rear cover through the holes (G and H)
with a screwdriver to unhook it from the front cover.
4. Disconnect the all connectors. Remove the front cover.
To attach:
Follow the above procedure in reverse.
Setscrew A
Setscrew B
Setscrew C
Setscrew D
Setscrew E
Setscrew F
To Next Page
