ELNA eXpressive920 - Replacing Printed Circuti Board S1; Replacing Embroidery Unit Detecting Switch

57
Mechanical Adjustment

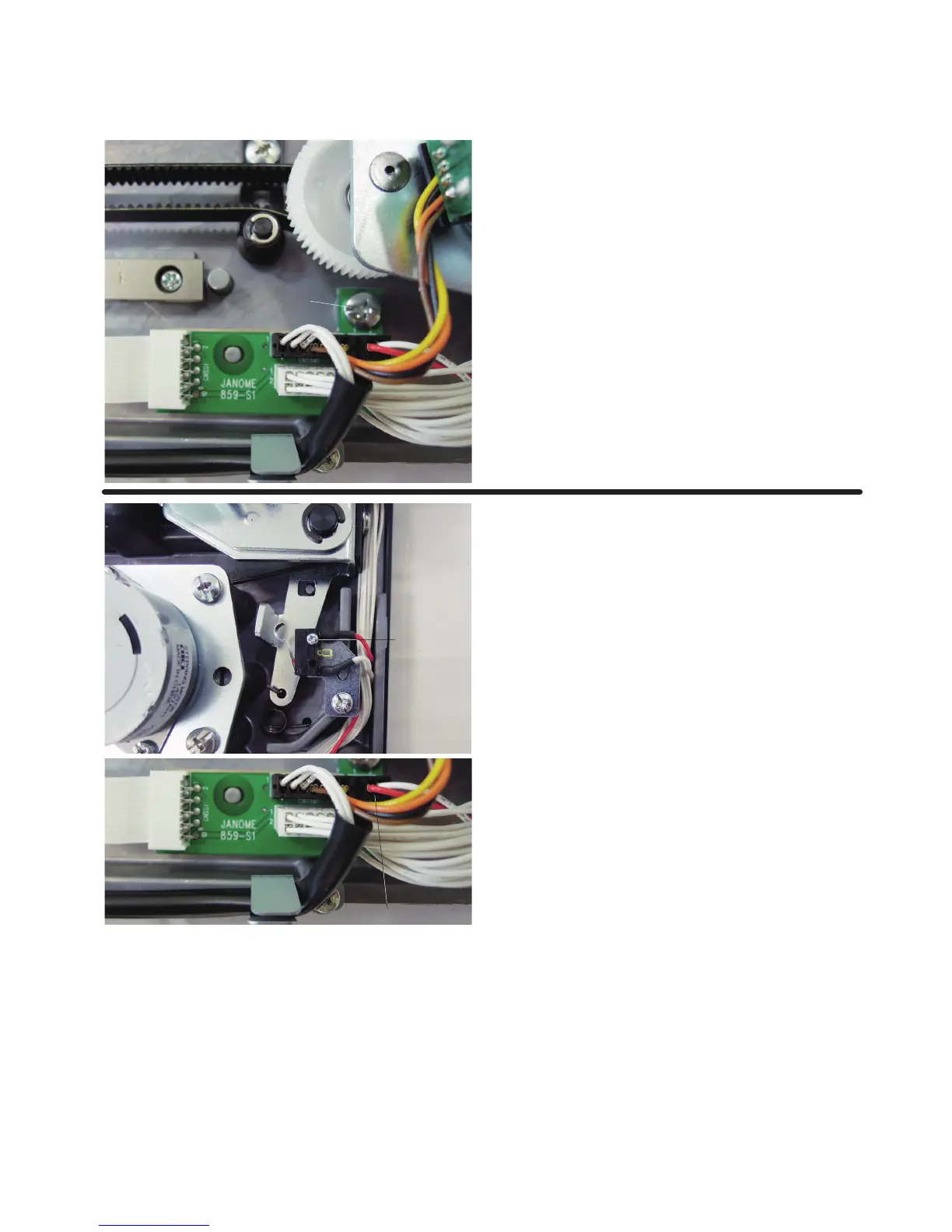

Replacing Printed Circuit Board S1
z Remove the Y-carriage cover (lower) (refer to pages 51-
52).
Remove the setscrew
q.
Disconnect the connectors from the printed circuit board
S1.
Remove the printed circuit board S1.
To attach, follow the above procedure in
reverse.
q
Replacing Embroidery Unit Detecting Switch
z Remove the setscrew q.
q
w
x Disconnect the connector w from the printed circuit board
S1.
Remove the Embroidery unit detecting switch.
