Mechanical Adjustment

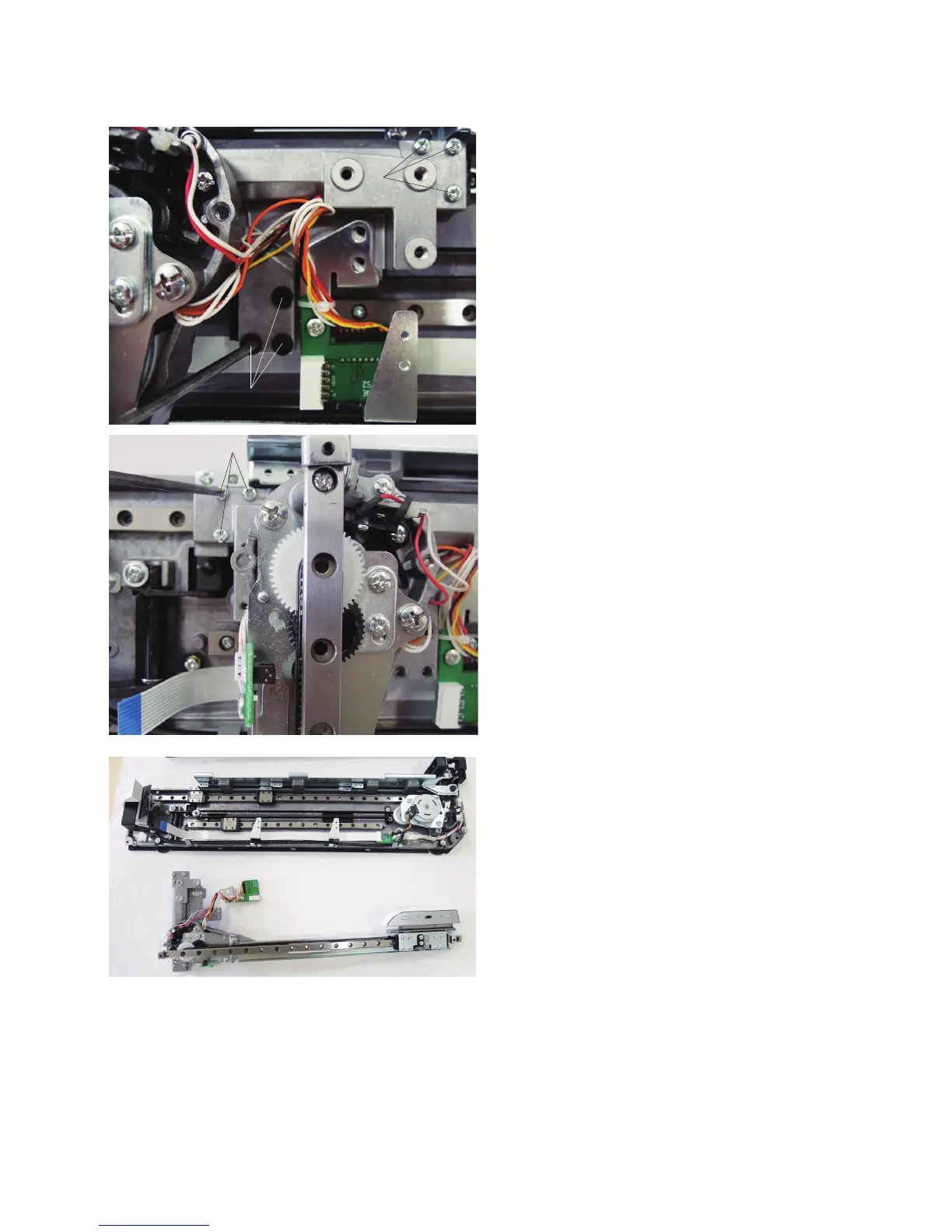

⁄0 Remove the setscrews i (3 pcs.) and o (3 pcs.).
i
o
!0
⁄1
Remove the setscrews !0 (3 pcs.).
⁄2 The Y-carriage is removed.
