Mechanical Adjustment
Supporter spring

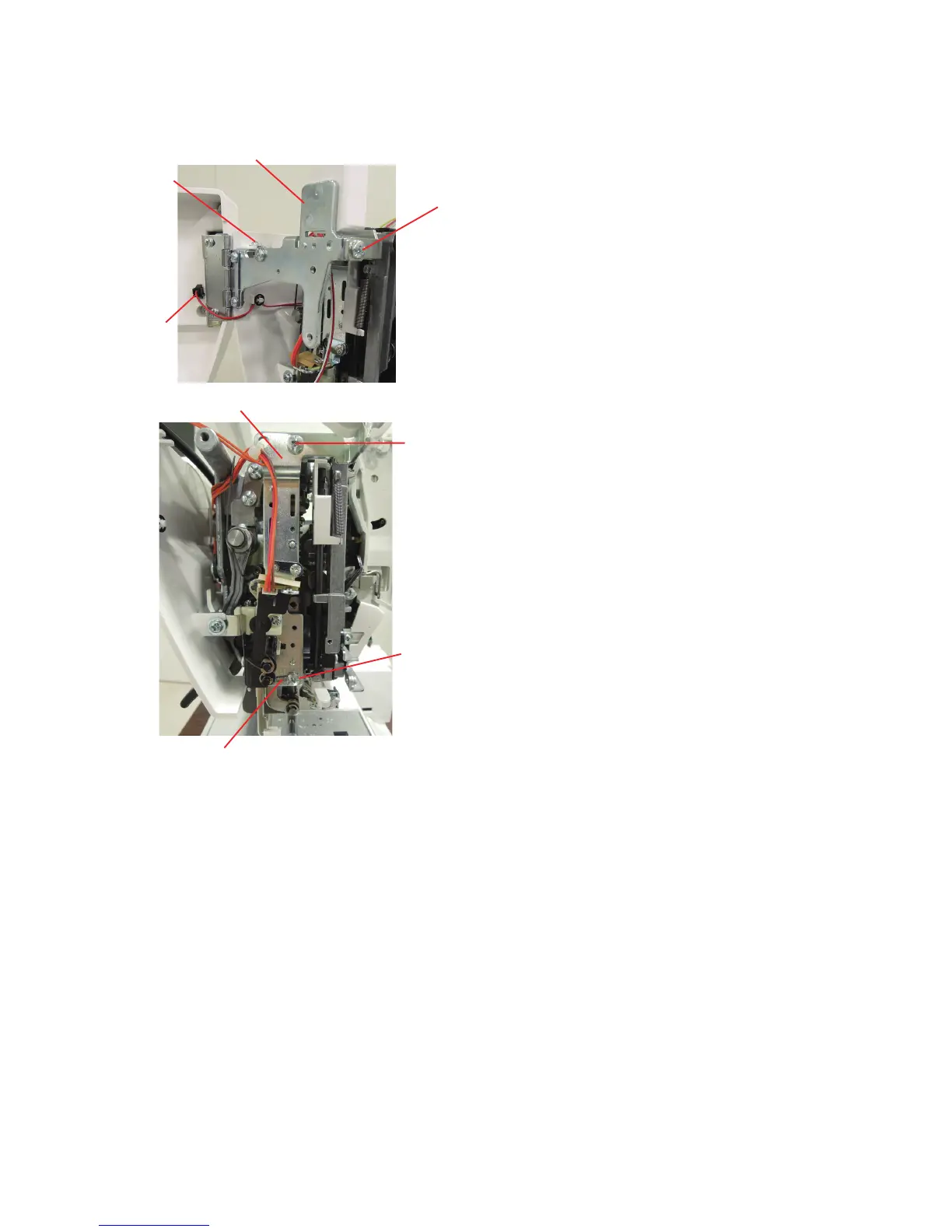

8. Remove the setscrews E and F.
Disconnect the connector and remove the carrying handle
supporter.
Front bracket
Presser foot lifter stopper position (preparation continued)
Carrying handle supporter
9. Remove the supporter spring.
Remove the setscrews G and H.
Remove the front bracket
Setscrew E
Setscrew F
Setscrew G
Setscrew H
Connector
To Next Page
