EMC Connectrix B Series v6.2 ED-DCX-4S-B Hardware Reference Manual
Port Side Exhaust Kit Installation Procedure

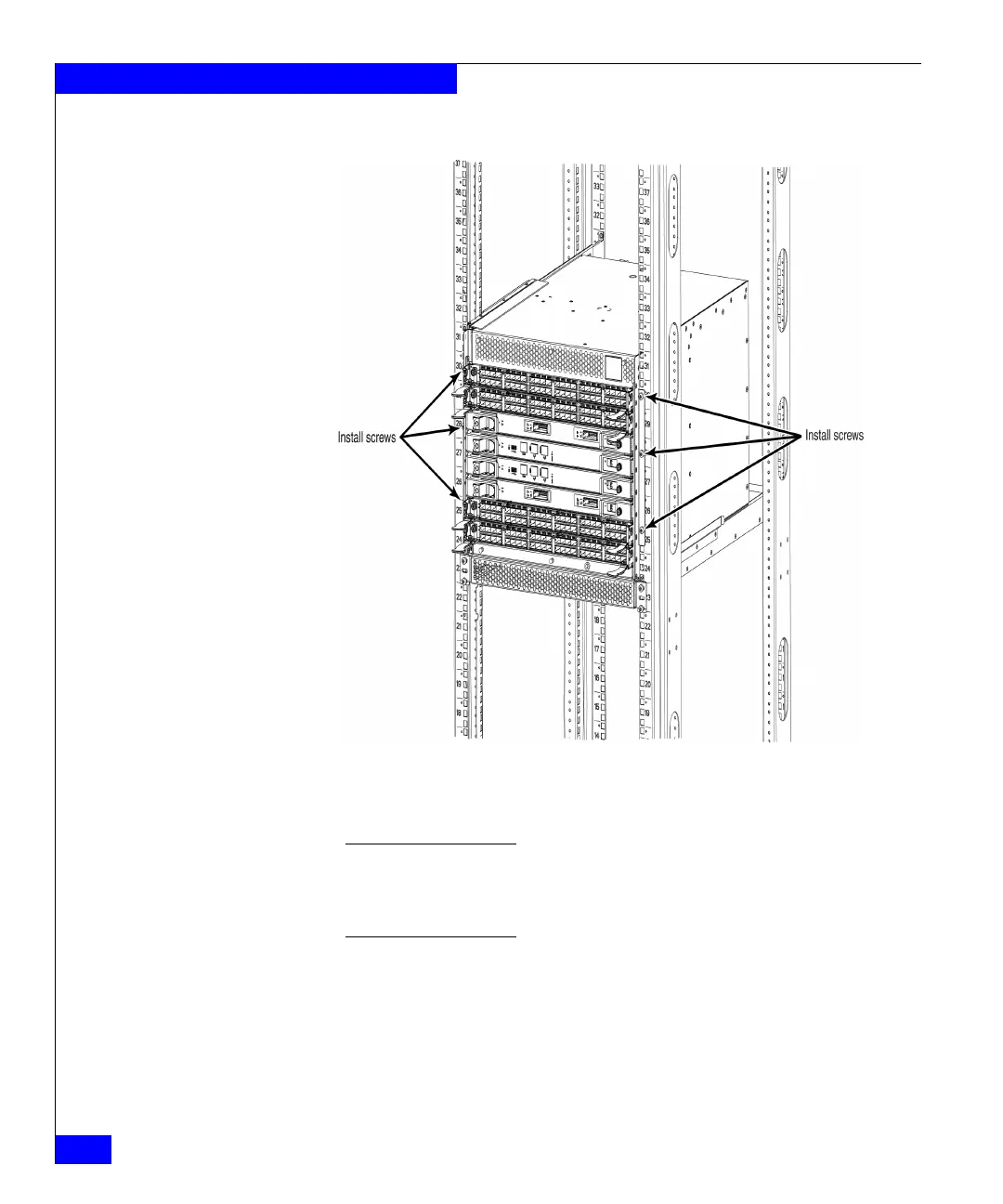

Figure 43 ED-DCX-4S-B with 27 to 31 in. (68.58 to 78.74 cm) Port-Side Exhaust Kit
installed in cabinet
Note: For rails with round holes, use the clip nuts (F in Figure 38 on page 195)
on the rails for securing the 10-32 screws. For rails with square holes, use the
retainer nuts (G in Figure 38 on page 195). Also refer to Figure 39 on
page 197.
6. Install the ED-DCX-4S-B door and required cable management
system. Refer to “RRP: Chassis door” on page 87 and “RRP:
Vertical cable management fingers” on page 89.
