EMC Connectrix B Series User Manual

Installing the ED-DCX-4S-B in Equipment Cabinet
207
Port Side Exhaust Kit Installation Procedure

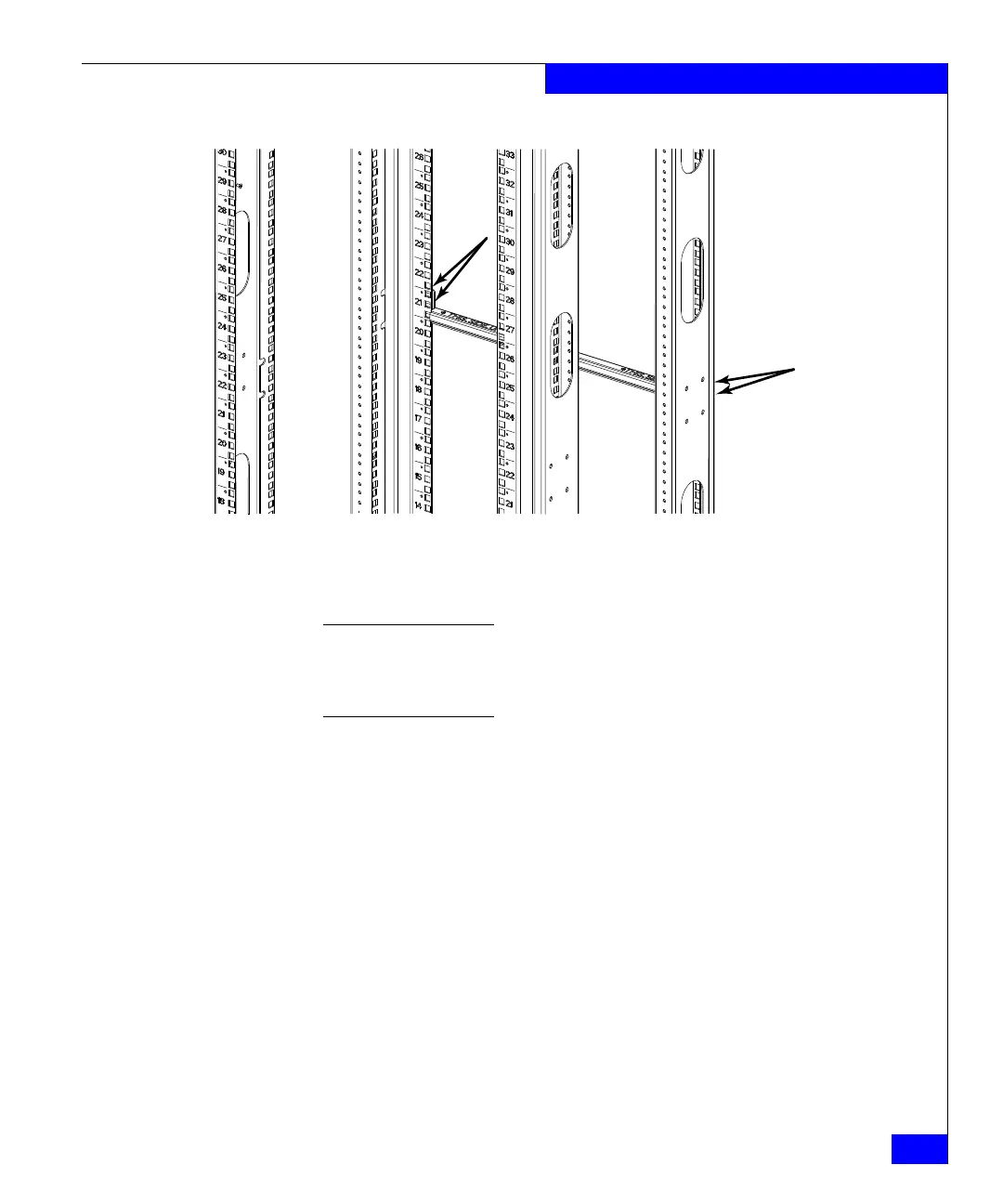

Figure 46 Installing saddle to equipment cabinet
Note: For rails with round holes, use the clip nuts (H in Figure 44 on
page 204) on the rails for securing 10-32 screws. For rails with square holes,
use the retainer nuts (I in Figure 44 on page 204). Also refer to Figure 45 on
page 206.
4. Place the shelf (D in Figure 44 on page 204) on the saddle then
secure it to the cabinet rails using four 10-32 screws with washers
(G in Figure 44 on page 204). Tighten screws according to
specifications under “Torque requirements” on page 204.
Install screws
Install
screws
Port Side
(Exhaust)
