208

EMC Connectrix B Series v6.2 ED-DCX-4S-B Hardware Reference Manual

Port Side Exhaust Kit Installation Procedure

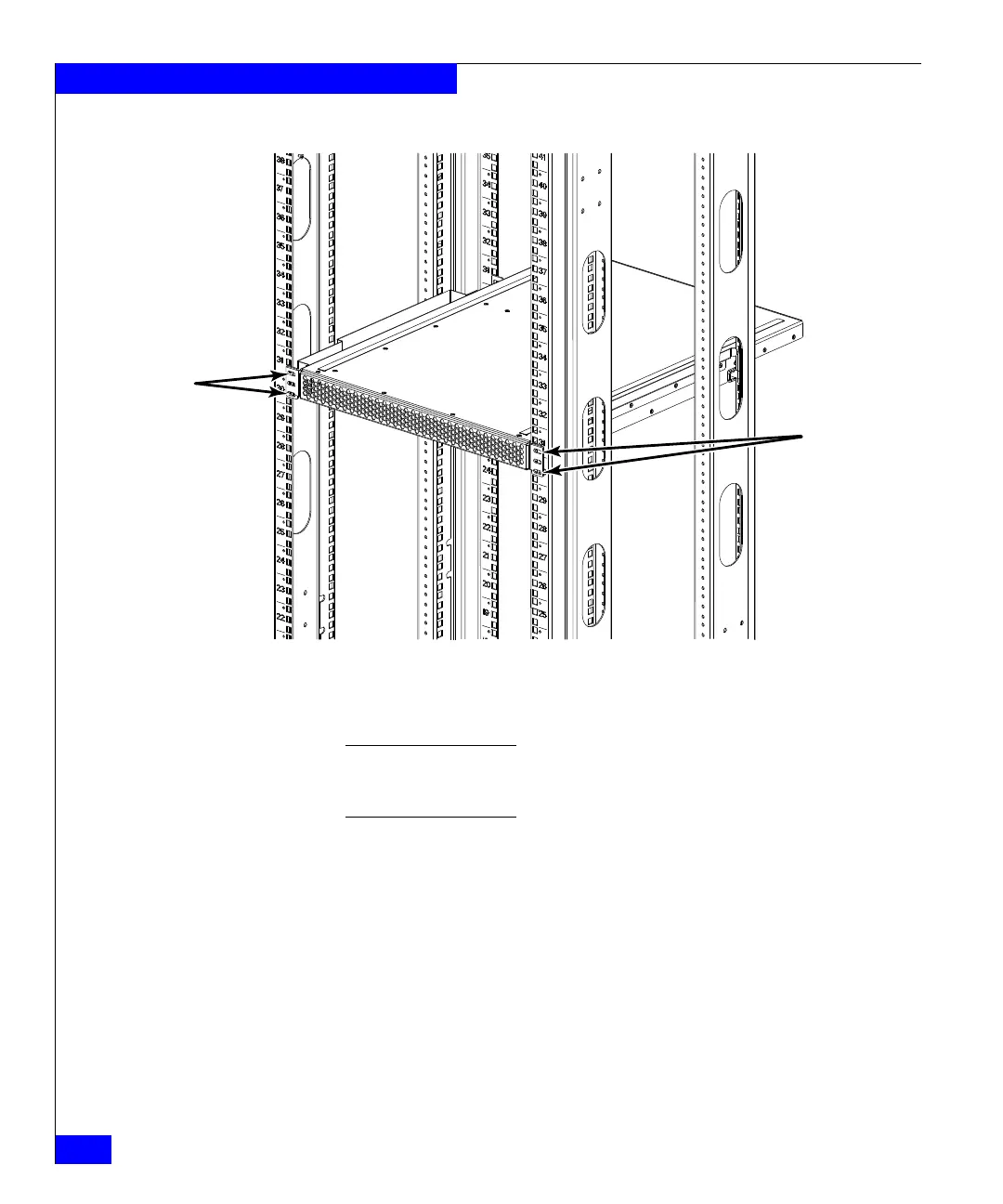

Figure 47 Shelf installed in cabinet

Note: For rails with round holes, use the clip nuts on the front rails for

securing 10-32 screws. For rails with square holes, use the retainer nuts (H

and I in Figure 44 on page 204). Also refer to Figure 45 on page 206.

5. Install the air-duct assembly (C in Figure 44 on page 204) by

inserting it down into the side-slot on the shelf. Ensure that the

tabs of the duct align and engage with the slots in the shelf. Also

refer to Figure 48 on page 209.

Install screws

Port Side

(Exhaust)
