Installing the SPS brackets
Procedure
1. Secure the front of each SPS enclosure together in the SPS tray, attach the SPS front
retaining bracket (available in the rack kit provided separately) with Phillips panhead
screws in 4 places as shown in Figure 10 on page 28.

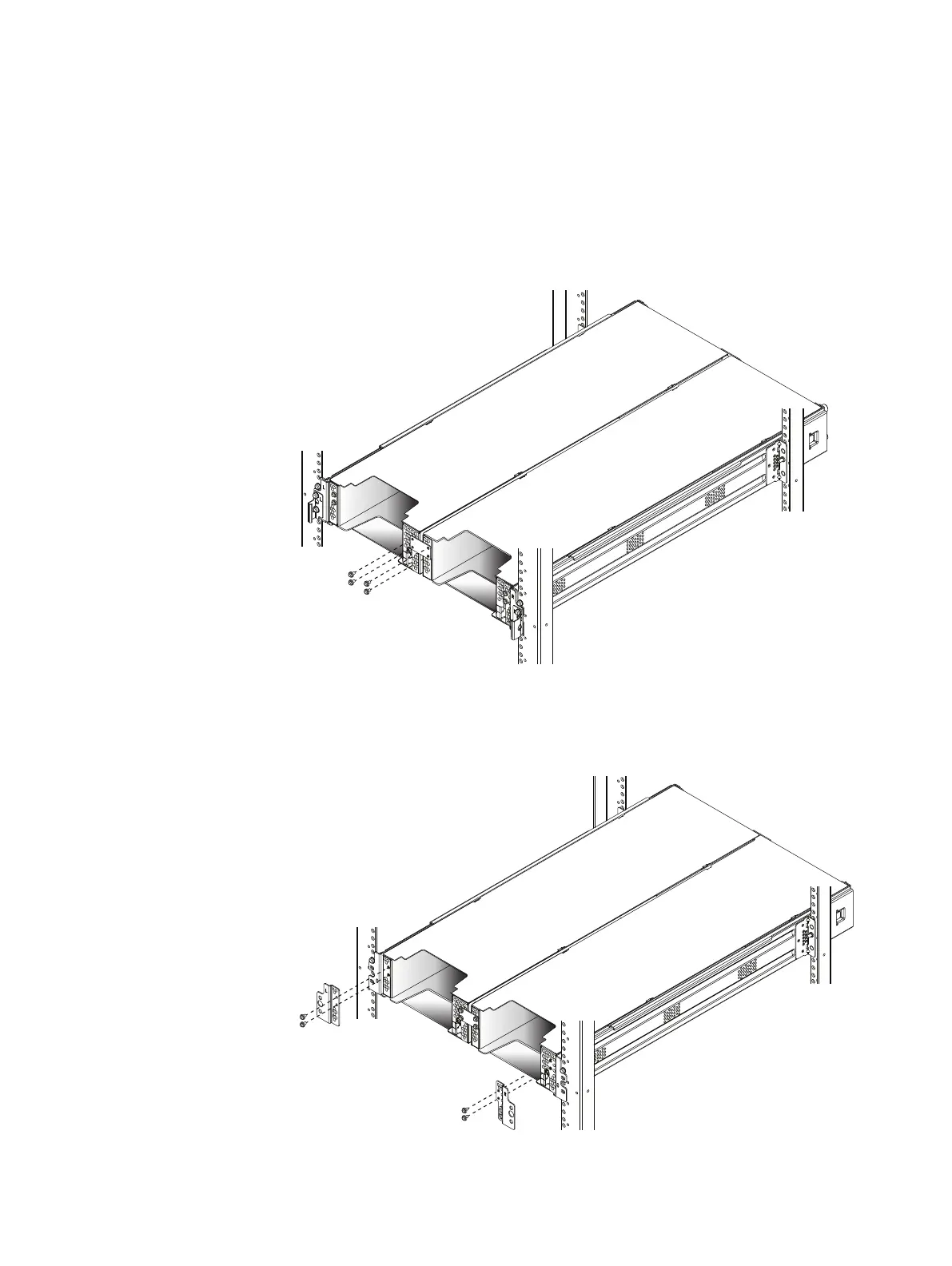

Figure 10 Attaching the SPS retainer bracket
2. Attach the SPS side brackets to each side of the SPS with screws in 4 places, 2 on the
right and 2 on the left as shown in Figure 11 on page 28.
Figure 11 Attaching the SPS side brackets
3. Attach the SPS bezel brackets to each side of the SPS with screws in 4 places, 2 on
the right and 2 on the left as shown in Figure 12 on page 29.
Assemble components in your cabinet
28 EMC VNX Series VNX8000 Block Installation Guide
