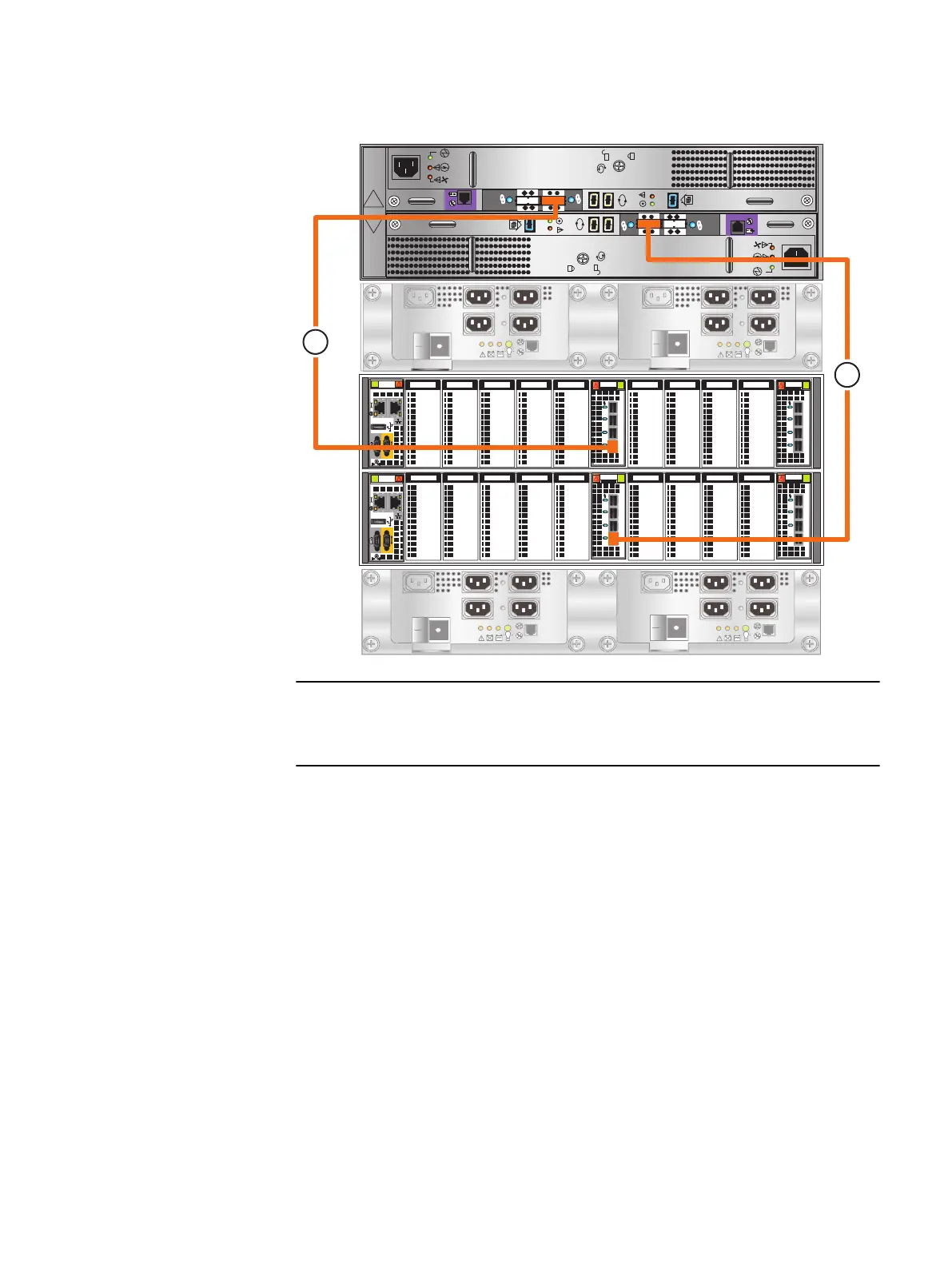

Figure 33 SAS cabling to a 3U DAE 0
A
B
#
X4
6Gb SAS
#
X4
6Gb SAS
B
A
0 1 2 3
0 1 2 3
0 1 2 3
0 1 2 3
1
2
Identify the cables by the cable labels and the connectors. The cables and ports are
not colored. Bus 0 is identified with orange labels.
Figure 33 on page 45 shows a 3U DAE 0. If your system has a 2U DAE 0, see the
location of the ports in Add additional storage on page 55.
Other storage in the system can be connected to the other ports in the SAS module in
slot 5. For information on that storage and its cabling, see Add additional storage on
page 55. Also see the information on DAE cabling in the
VNX8000 Hardware
Information Guide
.
Cable your system
Cabling the SPs to DAE 0 45
