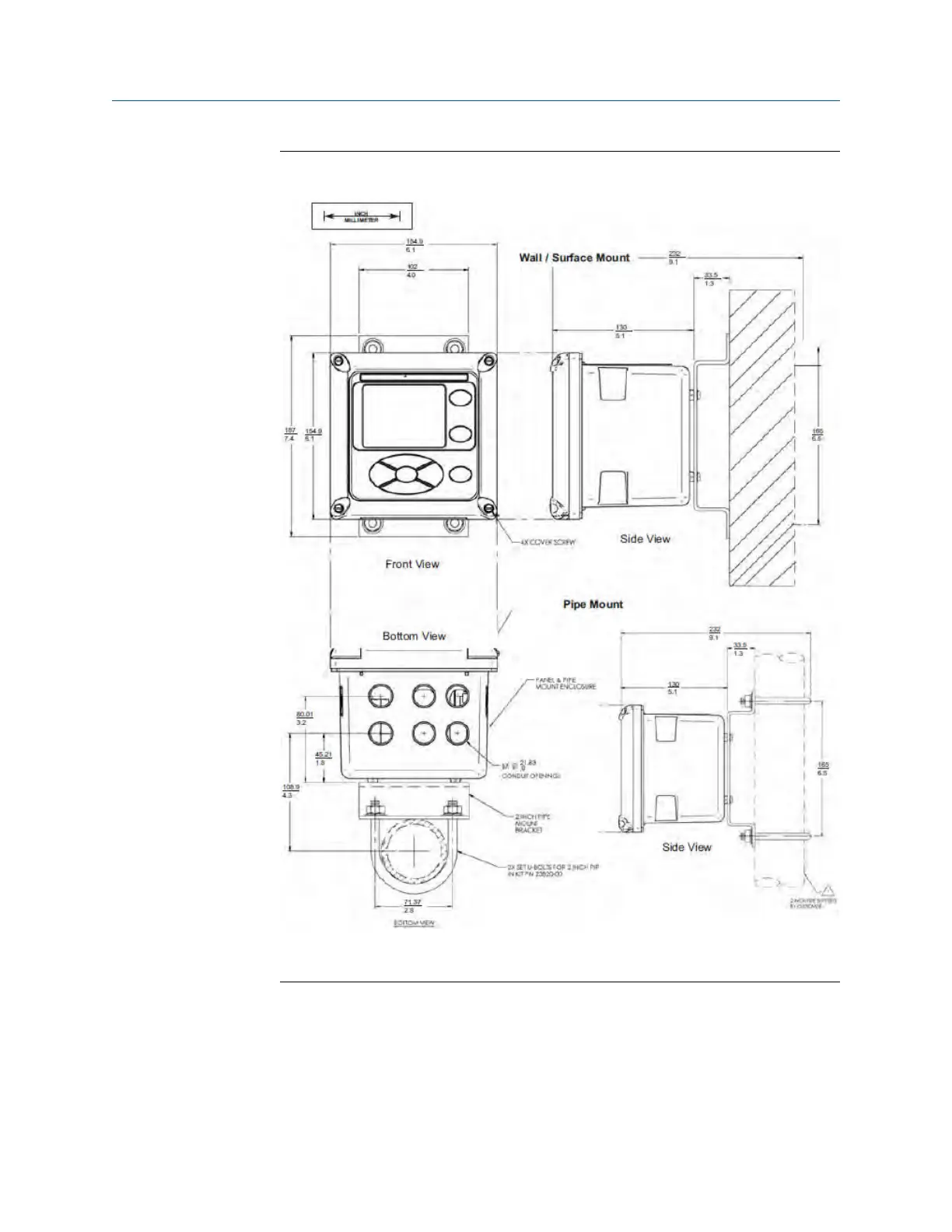

Pipe and Wall Mounting DimensionsFigure 3-2:
(Mounting bracket PN 23820-00)
2. See Section 4.1 for more information about the conduit openings.
3.
See Section 4.2 for wiring instructions.
3.2.3 Install the sample conditioning enclosure
Follow the steps below to install the sample conditioning enclosure.
Installation
Instruction Manual 13
