For best EMI/RFI protection, use shielded output signal cable enclosed in earth-grounded
metal conduit.
Keep output signal wiring separate from power wiring. Do not run signal and power or
relay wiring in the same conduit or close together in a cable tray.
4.3.3 Alarm wiring
The alarm relay terminal strip is located just below the power connector on the power
supply board.
See Figure 4-3.

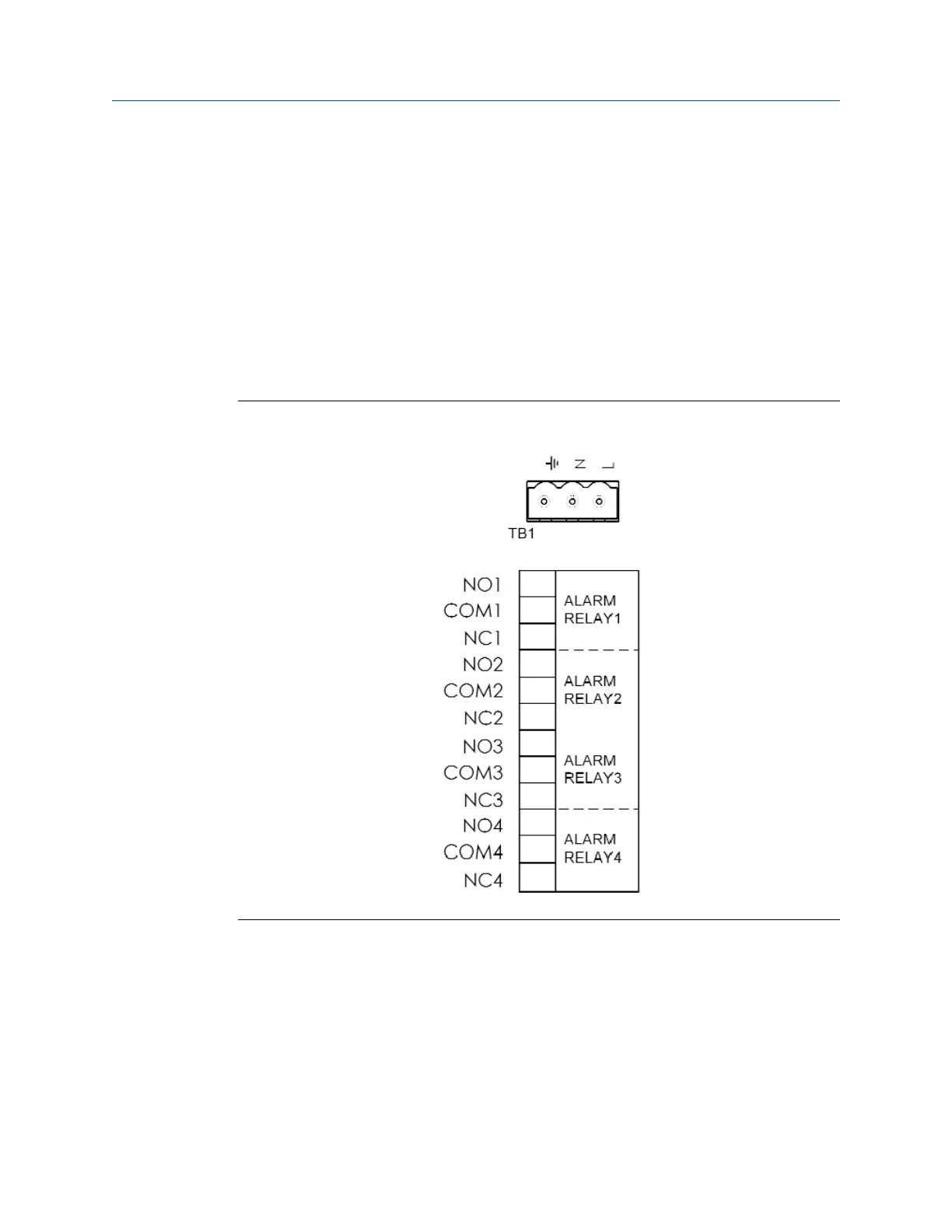

Alarm relay connectionsFigure 4-3:
Keep alarm relay wiring separate from signal wiring. Do not run signal and power or relay
wiring in the same conduit or close together in a cable tray.
4.4 Sensor wiring
If it is necessary to replace the sensor cable, refer to the instructions below.
1.
Shut off power to the transmitter.
Wiring
22 Rosemount TCL
