4.5 Apply power to the transmitter and complete
Quick Start
For Rosemount Total Chlorine System with Rosemount 1056 Transmitter
1. Once all wiring connections are secured and verified, apply power to the
transmitter.
When the transmitter is powered up for the first time, Quick Start screens appear..
Using Quick Start is easy.
a. A backlit field shows the position of the cursor.
b. To move the cursor left or right, use the keys to the left or right of the ENTER key.
To scroll up or down or to increase or decrease the value of a digit, use the keys
above and below the ENTER key. Use the left and right keys to move the decimal
point.
c. Press ENTER to store a setting. Press EXIT to leave without storing changes.
Pressing EXIT also returns the display to the initial Quick Start screen.
d. A vertical black bar with a downward pointing arrow on the right side of the
screen means there are more items to display. Continue scrolling down to
display all the items. When you reach the bottom of the list, the arrow points up.

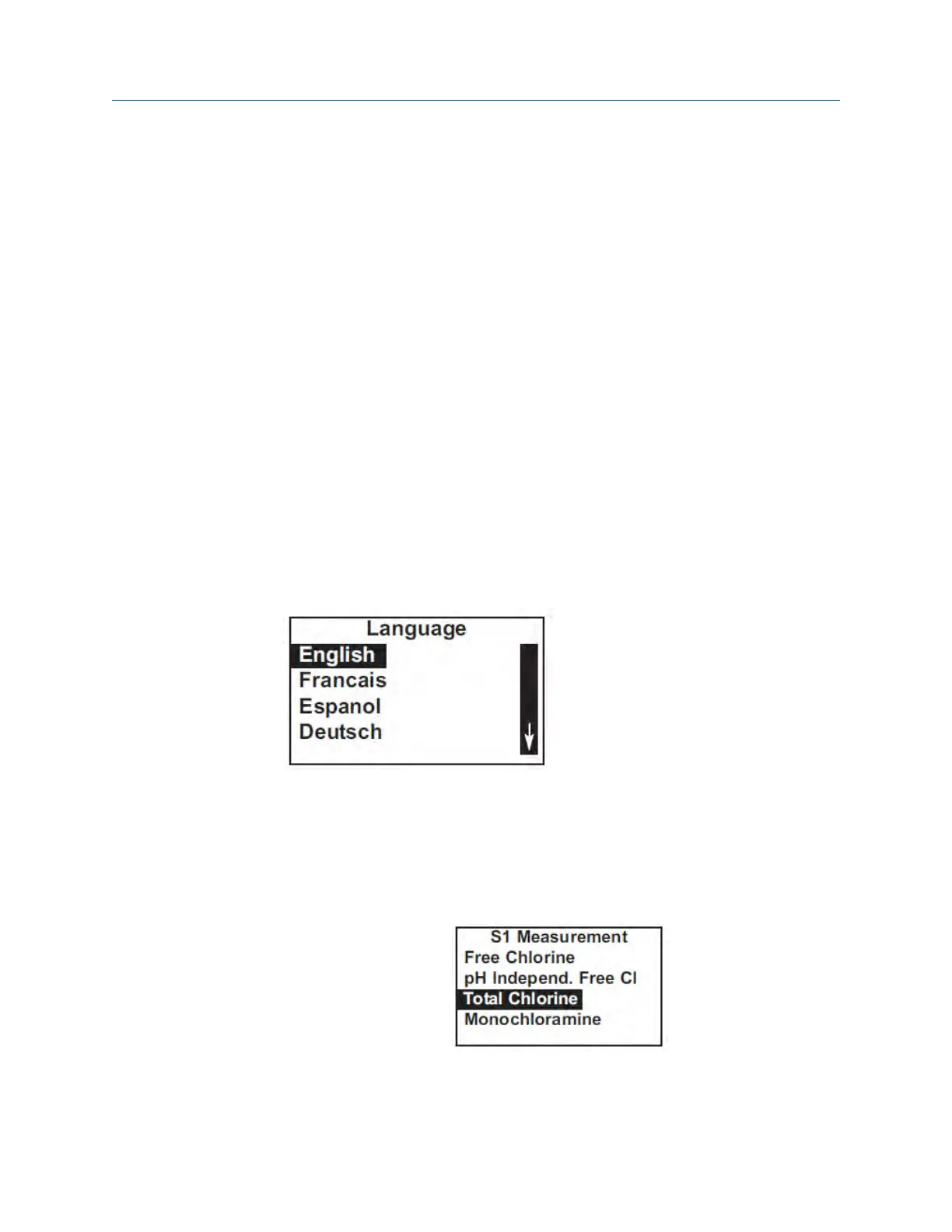

2. Choose the desired language. Scroll down to display more choices.
3. The next step is to configure sensor 1. Sensor 1 is the total chlorine sensor. The
screen has two control boxes.
a.
For measurement, choose Total chlorine.
b. Choose the desired units, mg/L or ppm.
4. Choose Total Chlorine for sensor 1 (S1).
5. Choose the desired units for chlorine.
Wiring
24 Rosemount TCL
