6. Scroll through the list of items and select the parameter you wish to be displayed.
7.
Once you are done making changes, press EXIT twice to return to the display menu.
8. Press MENU and then EXIT to return to the main display.

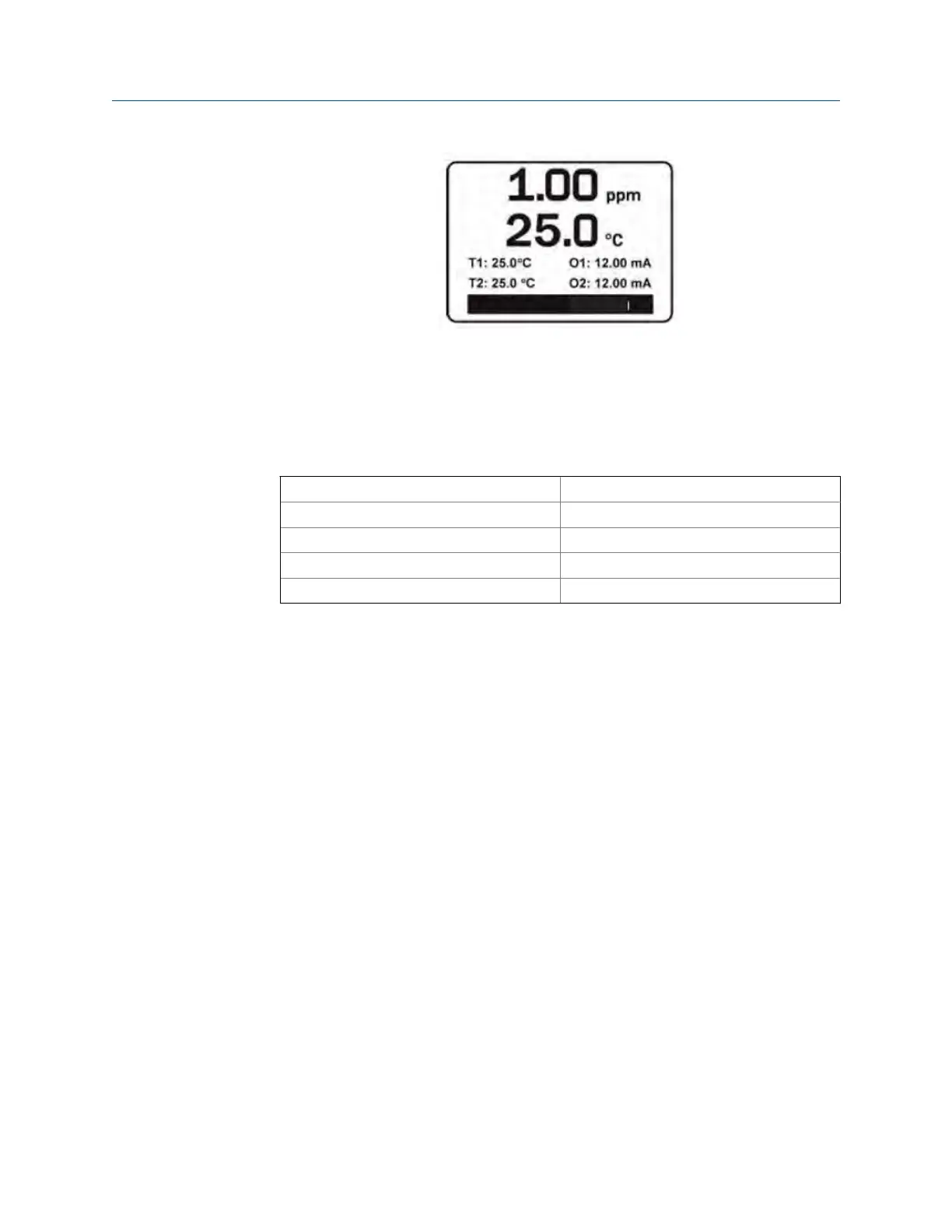

The following abbreviations are used in the quadrant display.
O output
T temperature (live)
Tm temperature (manual)
M measurement
I Sensor current (Cl)
If you have a dual input Rosemount 1056 Transmitter, other abbreviations might
appear. Consult the Rosemount 1056 Transmitter manual for more details.
9.
Choose Language to change the language used in the display.
10. Choose Warning to disable or enable warning messages.
11. Choose Contrast to change the display contrast.
12. To change the contrast, choose either lighter or darker and press ENTER.
Every time you press ENTER, the display becomes lighter or darker.
Display and operation
Instruction Manual 37
