Emotron FDU Series User Manual

170 CG Drives & Automation 01-7491-01r0

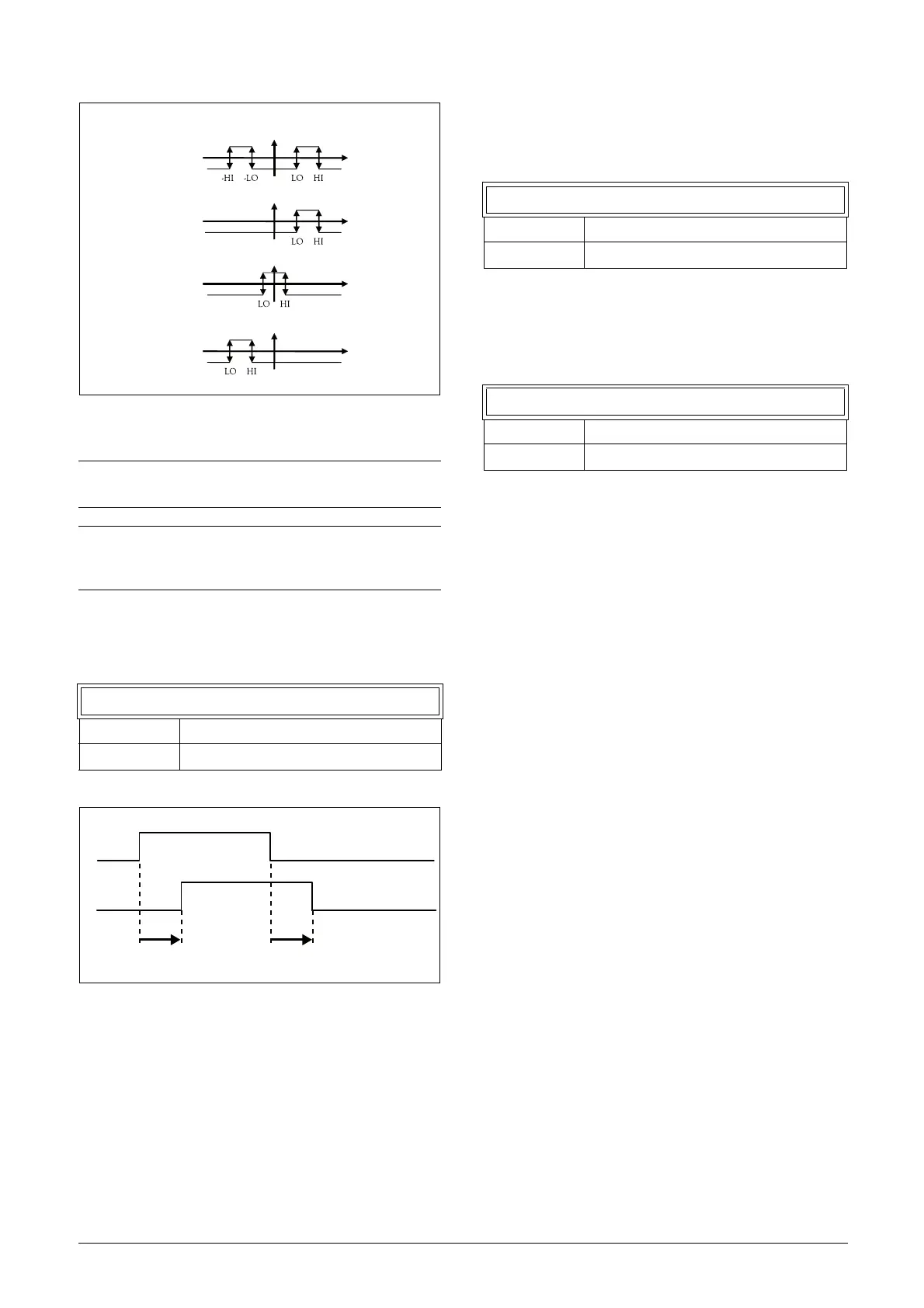

Fig. 141 Principle functionality of comparator features for
“Type [6114] =Window ” and “Polar [6115]”.
Analogue Comparator 1 Set Delay [6116]
The output signal for the analogue comparator 1 is delayed
with the set value in this menu. See fig. 142.
Fig. 142 Set/reset delay for output signal.
Analogue Comparator 1 Reset Delay
[6117]
The reset of the output signal for the analogue comparator 1
is delayed with the set time in this menu. See fig. 142.
Analogue Comparator 1 Timer Value
[6118]
The actual timer value for analogue comparator 1 is viewed
in this menu.
Setup Analogue Comparators 2-4
[612] - [614]
Refer to the descriptions for Analogue Comparator 1. See
Chapter 15. page 227 regarding defaults.
NOTE: When “Unipolar “ is selected, absolute value
of signal is used.
NOTE: When “Bipolar” is selected in [6115] then:
1. Functionality is not symmetrical .
2. Ranges for high/low are bipolar
6116 CA1 Set Dly
Default: 0 s
Range: 0 - 36000 s
Type [6114] = Window
[6115] Unipolar
[6115] Bipolar
[6115] Bipolar
[6115] Bipolar
[6112] HI > 0
[6113] LO > 0
[6112] HI > 0
[6113] LO > 0
[6112] HI > 0
[6113] LO < 0
[6112] HI < 0
[6113] LO < 0
An.Value
[6111]
An.Value
[6111]
An.Value
[6111]
An.Value
[6111]
CA1
CA1
CA1
CA1
Set delay Reset delay
6117 CA1 Res Dly
Default: 0 s
Range: 0 - 36000 s
6118 CA1 Tmr Val
Default: 0 s
Range: 0 - 36000 s
