Encore N150 User Manual

23
www.encore-usa.com
¾

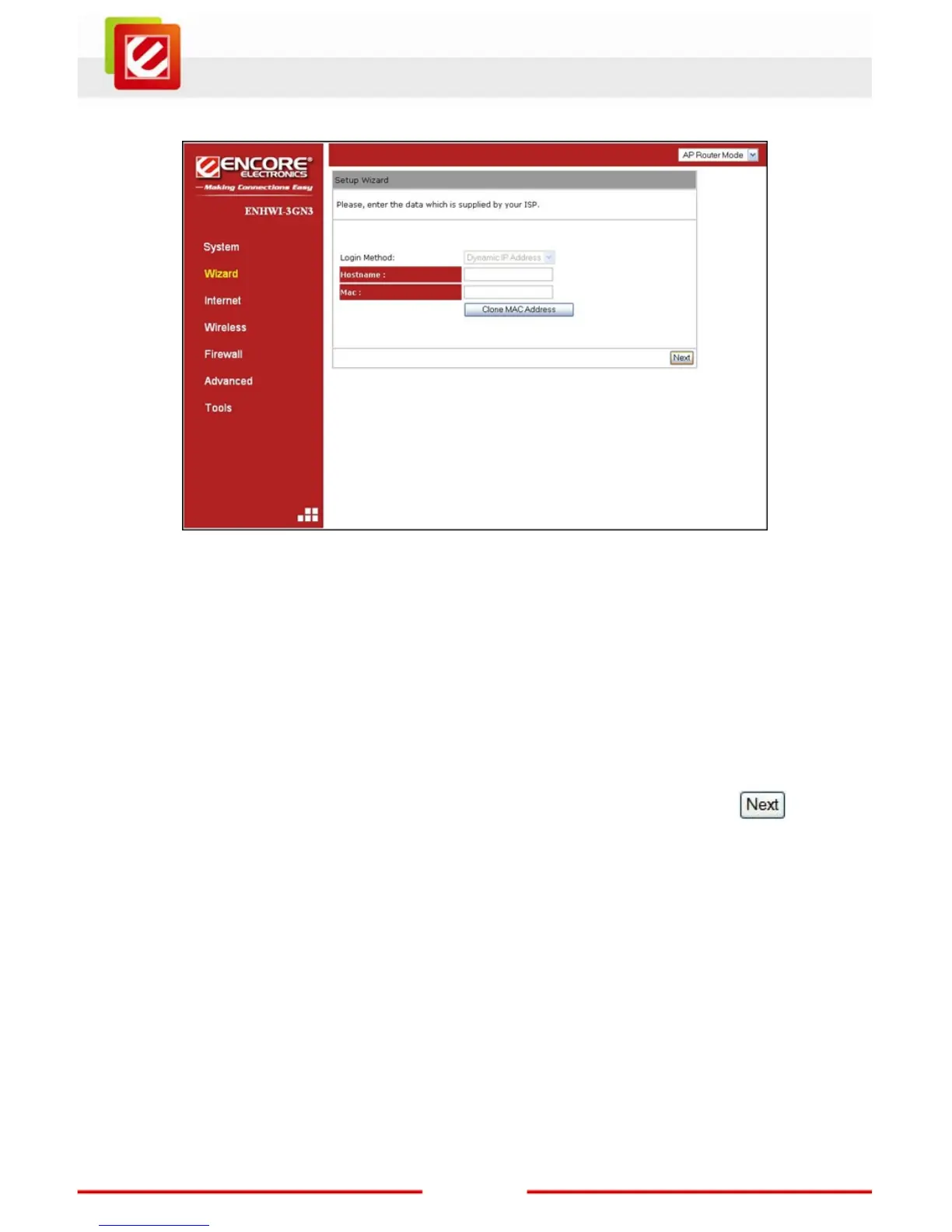

Here, you can configure the host name and MAC address of the ENHWI-3GN3. The “Clone
MAC Address” button clones the MAC address of your PC and use it as the MAC address
of your ENHWI-3GN3 router instead of the real MAC address of the router.
Note:
If you are unsure about this, skip this portion by clicking the “Next” button.
The Smart Wizard has finished setting up the WAN Configuration portion. Click
to
proceed to other portions.

Encore N150 Specifications

General

Ethernet LAN	Yes
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Receiver sensitivity	IEEE802.11n - MCS0@ -91dBm, MCS7@ -74dBm IEEE802.11g - 6Mbps@ -90dBm, 54Mbps@ -70dBm IEEE802.11b - 1Mbps@ -90dBm, 11Mbps@ -87dBm
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Interface	RJ-45, USB
Indoor range	100m
Outdoor range	300m
Frequency range	2.400 - 2.484 GHz
Power supply type	DC
Dimensions (WxDxH)	97 x 128 x 25 mm
Power requirements	12V
USB ports quantity	0
WLAN data transfer rates supported	157.5 Mbit/s
Non-operating relative humidity (non-condensing)	15 - 95 %
Channels quantity	13 channels
Media access protocol	CSMA/CA, ACK
Supported network protocols	TCP/IP, PPPoE/PPTP/L2TP, HTTP
Security algorithms	128-bit WEP, 64-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Antennas quantity	1
Antenna gain level (max)	2 dBi
Ethernet LAN (RJ-45) ports	4
Certification	FCC, CE, RoHS
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 45 °C

Weight and Dimensions

Weight	- g
