Cerabar M, Deltabar M, Deltapilot M / 4...20 mA HART Installation
Endress+Hauser 23
3.4.2 Wall and pipe-mounting (option)
Endress+Hauser offers a mounting bracket for installing the device on pipes or walls. A bracket with
mounting accessories is included with the device if ordered.
!
Note!
When using a valve block, the block's dimensions must be taken into account.

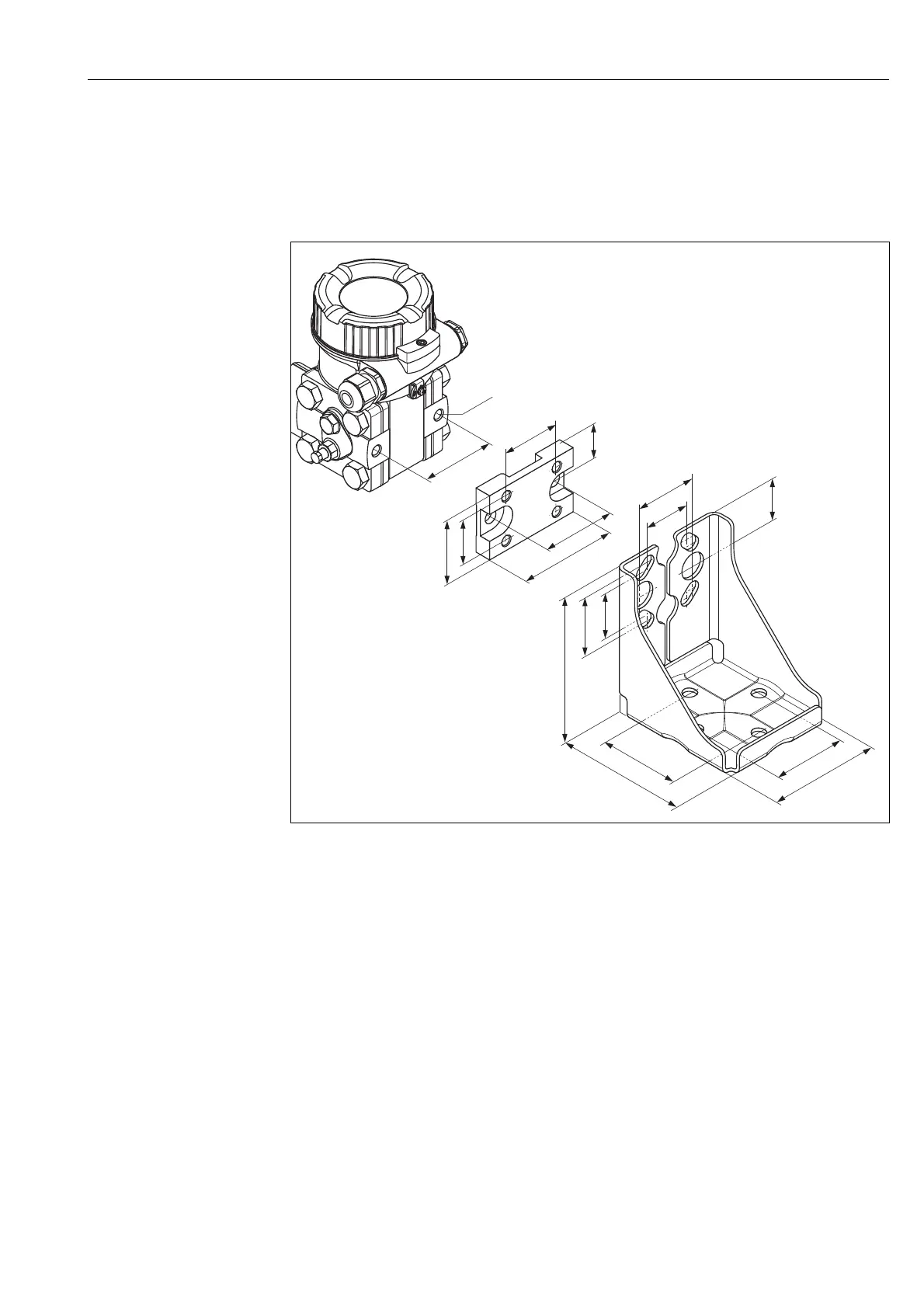

P01-PMD55xxx-06-xx-xx-xx-004
Mounting bracket for wall and pipe mounting
1 Adaption plate (+ six screws and six washers)
2 Mounting bracket (+ bracket for pipe mounting and two nuts)
Please note the following when mounting:
• To prevent the mounting screws from scoring, lubricate them with a multi-purpose grease prior
to mounting.
• In the case of pipe mounting, the nuts on the bracket must be tightened uniformly with a torque
of at least 30 Nm (22.13 lbf ft).
2
1
41.3
90
66.4
54
60
30
66.4
M10
7/16
106
74
74
124
135
37.5
54
54
41.3
41.3
