Operating elements Operating keys and elements on the electronic insert
DAT module All the specific data of the measuring cell are saved in the DAT module. When the device is switched on, these
data are read out of the DAT module and into the electronic insert memory.
The DAT module can be ordered as a spare part (order number: 542585-0000). However, the measuring cell
number must be stated when ordering.
Handheld terminals – HART With the handheld terminal Universal-HART-Communicator DXR275 or DXR375, all the parameters can be
configured anywhere along the 4 to 20 mA line via menu operation.
P01-DB5xxxxx-19-xx-xx-xx-006

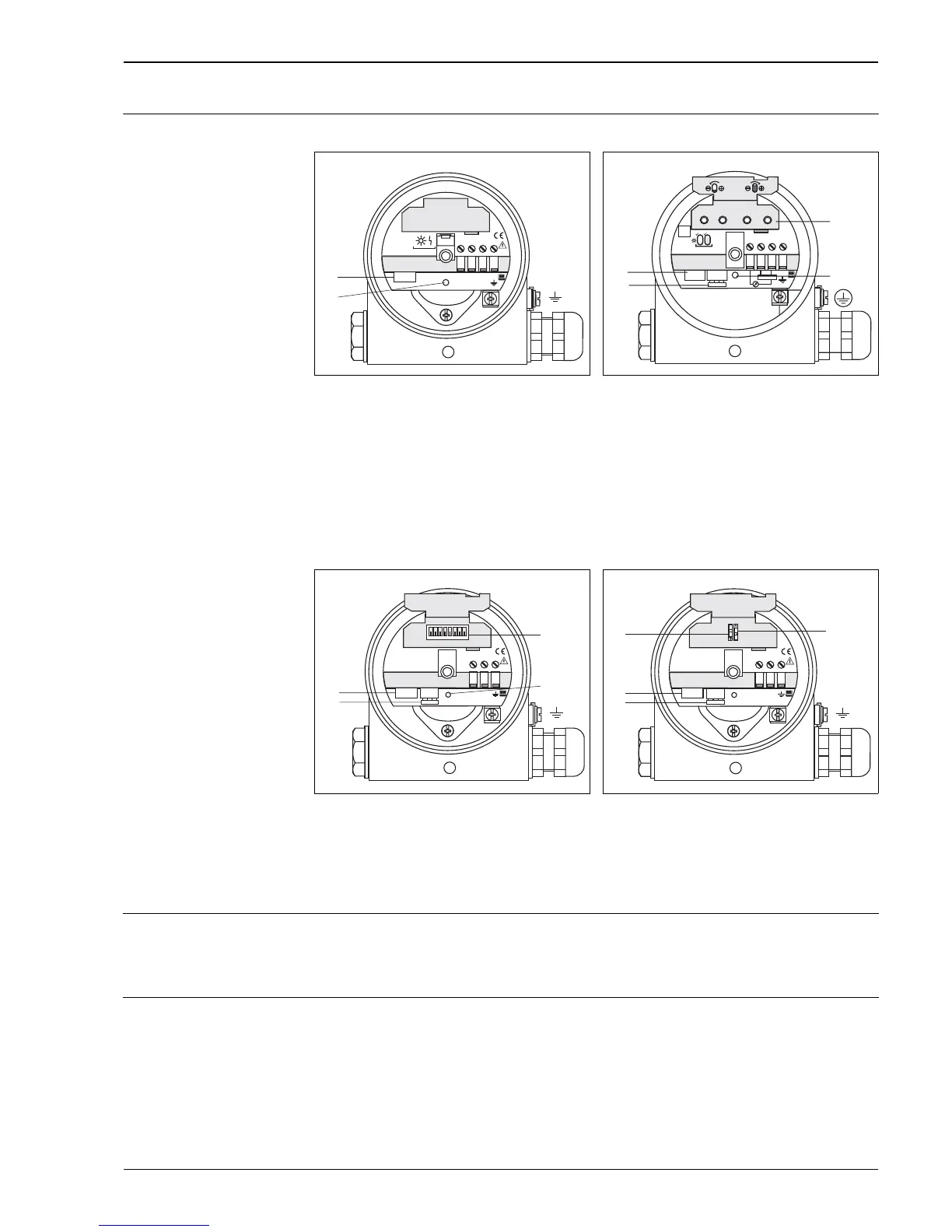

Electronic insert FEB11(P) – 0.2 to 1.2 mA and
electronic insert FEB17(P) – PFM
1 Red LED to indicate a fault
2 Slot for the DAT module
P01-DB5xxxxx-19-xx-xx-xx-003
Electronic insert FEB22(P) – 4 to 20 mA HART
1 Operating keys for empty and full calibration,
calibration with partially full tanks,
lock/unlock operation and reset
2 Green LED flashes when accepting the value for
empty and full calibration, during a reset and if
operation is locked or unlocked
3 Slot for optional FHB20 display and operating
module
4 Slot for the DAT module
P01-DB5xxxxx-19-xx-xx-xx-004
Electronic insert FEB24(P) – PROFIBUS PA
1 DIP switches for bus address
2 Red LED to indicate a warning or a fault
3 Slot for optional FHB20 display and operating
module
4 Slot for the DAT module
P01-DB5xxxxx-19-xx-xx-xx-005
Electronic insert FEB26 – FOUNDATION Fieldbus
1 DIP switch to lock/unlock operation
2 Slot for optional FHB20 display and operating
module
3 Slot for the DAT module
4 DIP switch for switching simulation mode on/off
