Deltapilot S
Endress+Hauser 15
Power supply
Electrical connection Note!
• When using the measuring device in hazardous areas, installation must comply with the corresponding
national standards and regulations and the Safety Instructions (XAs) or Installation or Control Drawings
(ZDs). → See also Page 59 ff, "Safety Instructions" and "Installation/Control Drawings" sections.
• Protective circuits against reverse polarity and HF influences are integrated.
• The housing must be grounded for electronic inserts with an integrated overvoltage protection.
• The system is optimally shielded against interference influences if the shielding is connected on both sides.
If you have to reckon with potential equalization currents in the system, only ground the shielding at one
end, preferably at the Deltapilot S probe.

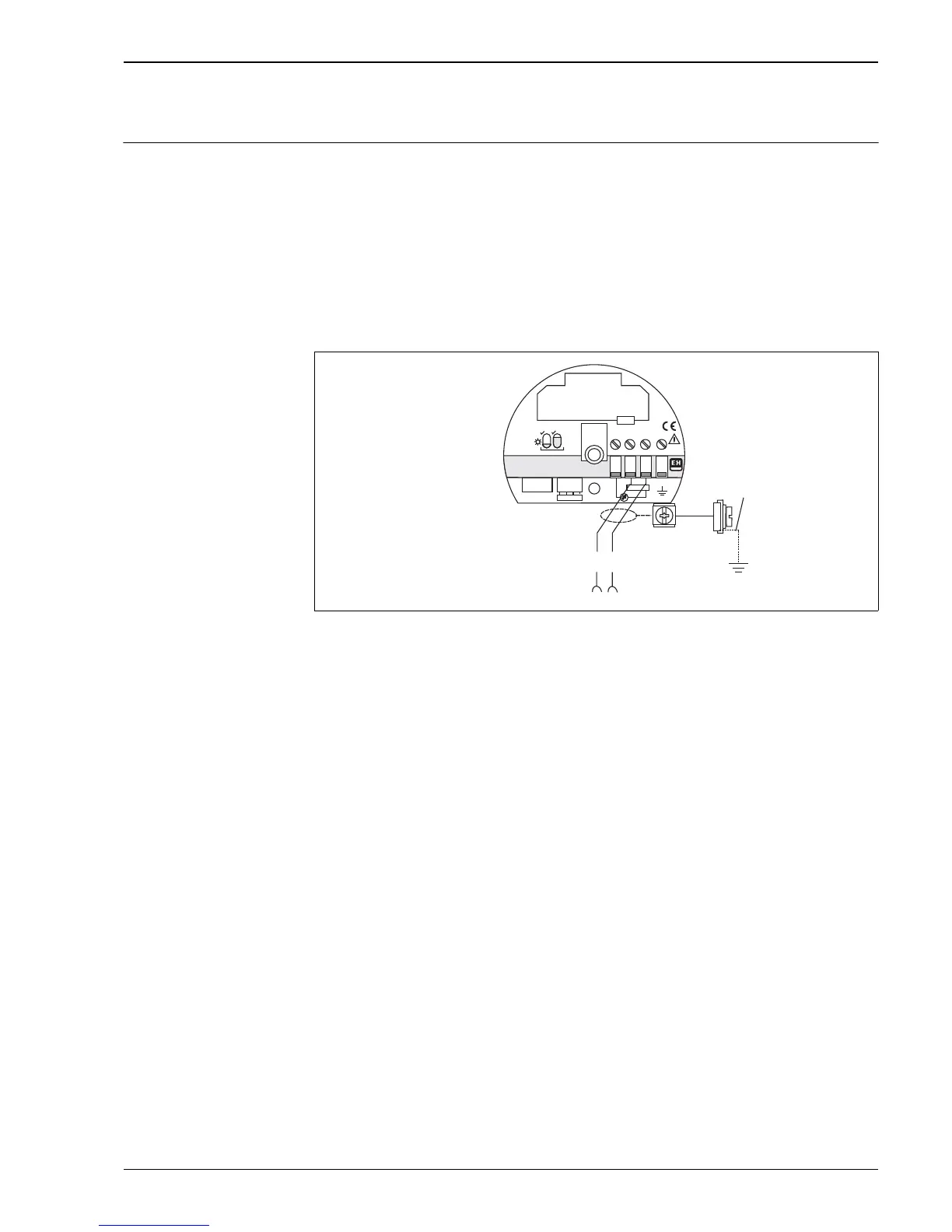

4 to 20 mA HART electronics – FEB22(P)
P01-DB5xxxxx-04-xx-xx-xx-005
0.2 to 1.2 mA analog electronics – FEB11(P)
The twin-core cable must be connected to terminals 2 (–) and 3 (+).
PFM electronics – FEB17(P)
The twin-core cable must be connected to terminals 2 (–) and 3 (+).
PRODFIBUS PA electronics – FEB24(P)
The twin-core cable must be connected to the "PA+" and "PA–" terminal.
More information on laying out and grounding the network is provided in Operating Instructions BA034S
"PROFIBUS DP/PA: Guidelines for planning and commissioning".
FOUNDATION Fieldbus electronics – FEB26
The twin-core cable must be connected to the "FF+" and "FF–" terminal.
More information on laying out and grounding the network is provided in Operating Instructions BA013S
"FOUNDATION Fieldbus Overview".
+
+
1
2
3
4
–
–
4…20 mA
DAT
FHB 20
FEB22P
FEB
22(P)
+
–
U
+
–
2
3
