Deltapilot S
Endress+Hauser 21
Operating conditions (process)
Process temperature range
For devices for use in hazardous areas, see Safety Instructions (XAs), Installation or Control Drawing (ZDs).
Process temperature limits • DB51(A), DB52(A) and DB53(A): –40 to +85°C (–40 to +185°F)
• The DB50L and DB50S versions can be exposed to +135°C (+275°F) for a brief period (maximum
30 minutes) for cleaning purposes.
Process pressure limits → For overload and vacuum resistance see Page 12, "Measuring range" section.
Mechanical construction

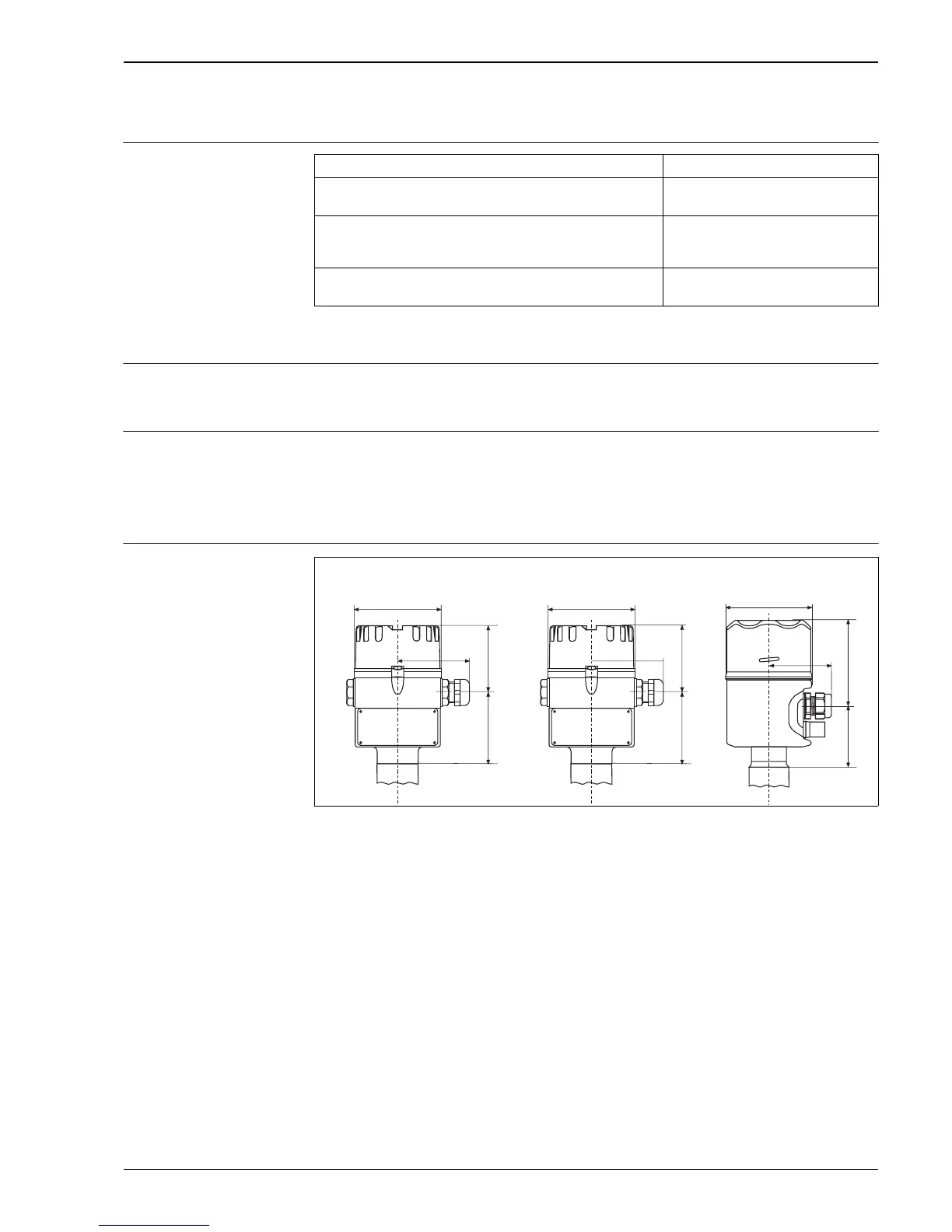

Dimensions of housing
P01-DB5xxxxx-06-xx-xx-xx-008
Deltapilot S housing versions
1 Aluminum housing
2 Polyester housing
3 Stainless steel housing
Dimensions written in italics apply to devices with a cover including a sight glass. Devices with the FHB20 onsite display
are always supplied with a cover with a sight glass.
Device Process temperature range
– DB50(A)
– DB50L, DB50S
–10 to +100°C (+14 to +212°F)
– DB51(A)
– DB52(A) with FEP extension cable
– DB53(A) with FEP extension cable
–10 to +80°C (+14 to +176°F)
– DB52(A) with PE extension cable
– DB53(A) with PE extension cable
–10 to +70°C (+14 to +158°F)
63
~66
68
ø86
~
75
68
ø86
~
75
ø86
➀
➁
➂
68
89
76
76
72
88
