Deltapilot S
22 Endress+Hauser

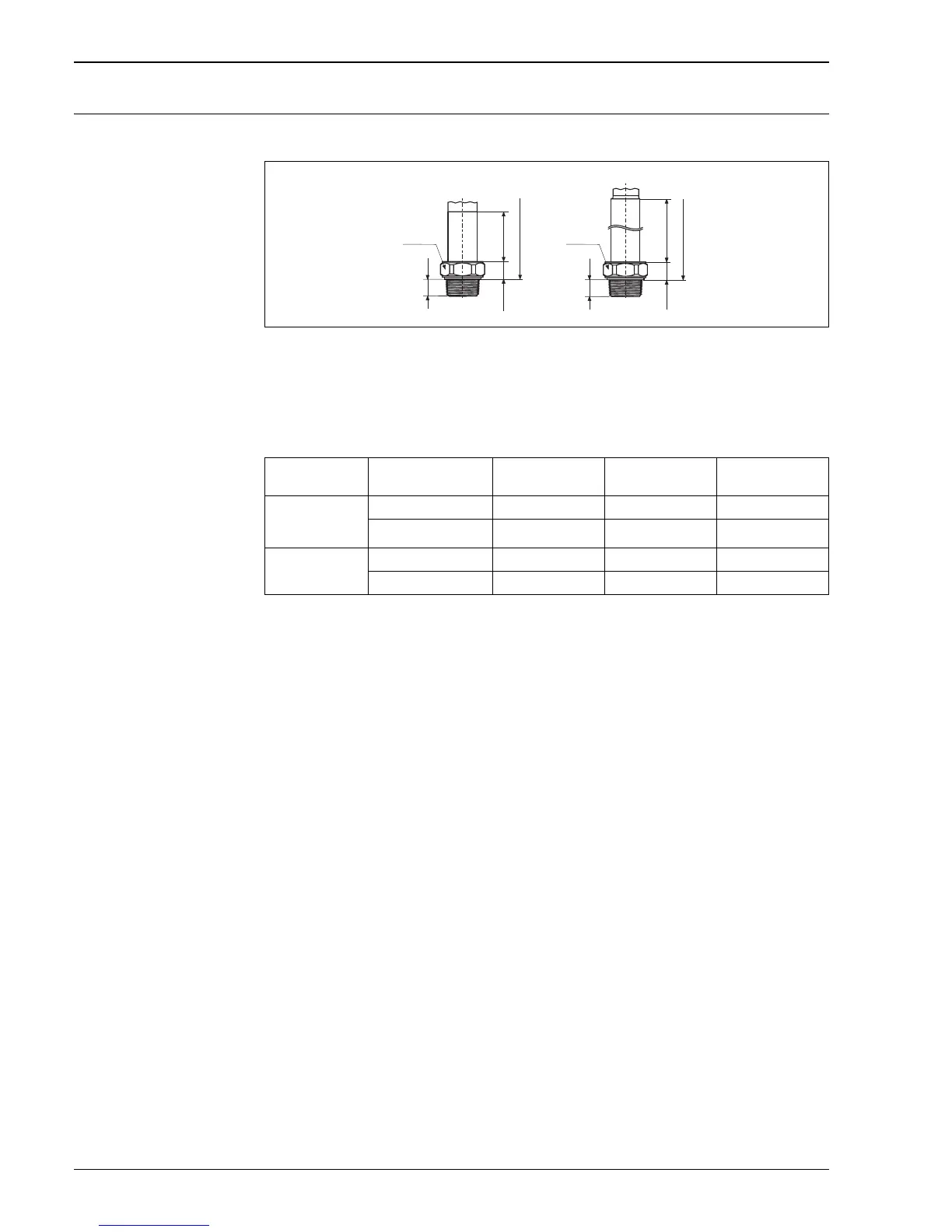

Process connections DB50 and
DB50A (compact version)
Threaded connection ISO 228 and NPT
P01-DB5xxxxx-06-xx-xx-xx-023
DB50(A) with thread
1 DB50(A) with thread G 1 1/2 or 1 1/2 NPT without flame barrier
2 DB50(A) with thread G 1 1/2 or 1 1/1 NPT with flame barrier
(flame barrier for use in hazardous areas, Zone 0)
Installation height H, devices with a thread
➁
146
22.5
25
H
➀
46.7
22.5
25
H
25
SW 60 SW 60
Cover Aluminum housing
[mm]
Polyester housing
[mm]
Stainless steel
housing [mm]
Without a flame
barrier
Flat 205.2 213.2 204.2
High (with sight glass)
1
1) Devices with the FHB20 display and operating module are always supplied with a high cover or with a cover with a
sight glass.
226.2 213.2 220.2
With a flame barrier Flat 304.5 312.5 204.2
High (with sight glass)
1
325.5 312.5 231.5
