Deltapilot S
Endress+Hauser 17
Residual ripple 4 to 20 mA HART
• Max. ripple (measured at 500 Ω) 47 to 125 kHz: U
ss
≤ 200 mV
• Max. noise (measured at 500 Ω) 500 Hz to 10 kHz: U
eff
≤ = 2.2 mV
0.1 to 1.2 mA analog
In the range 1 Hz to 100 kHz: max. failsafe value U
SS
≤ 1 V
Performance characteristics
Reference operating
conditions
• As per DIN 16086
• Calibration temperature: +25°C (+77°F)

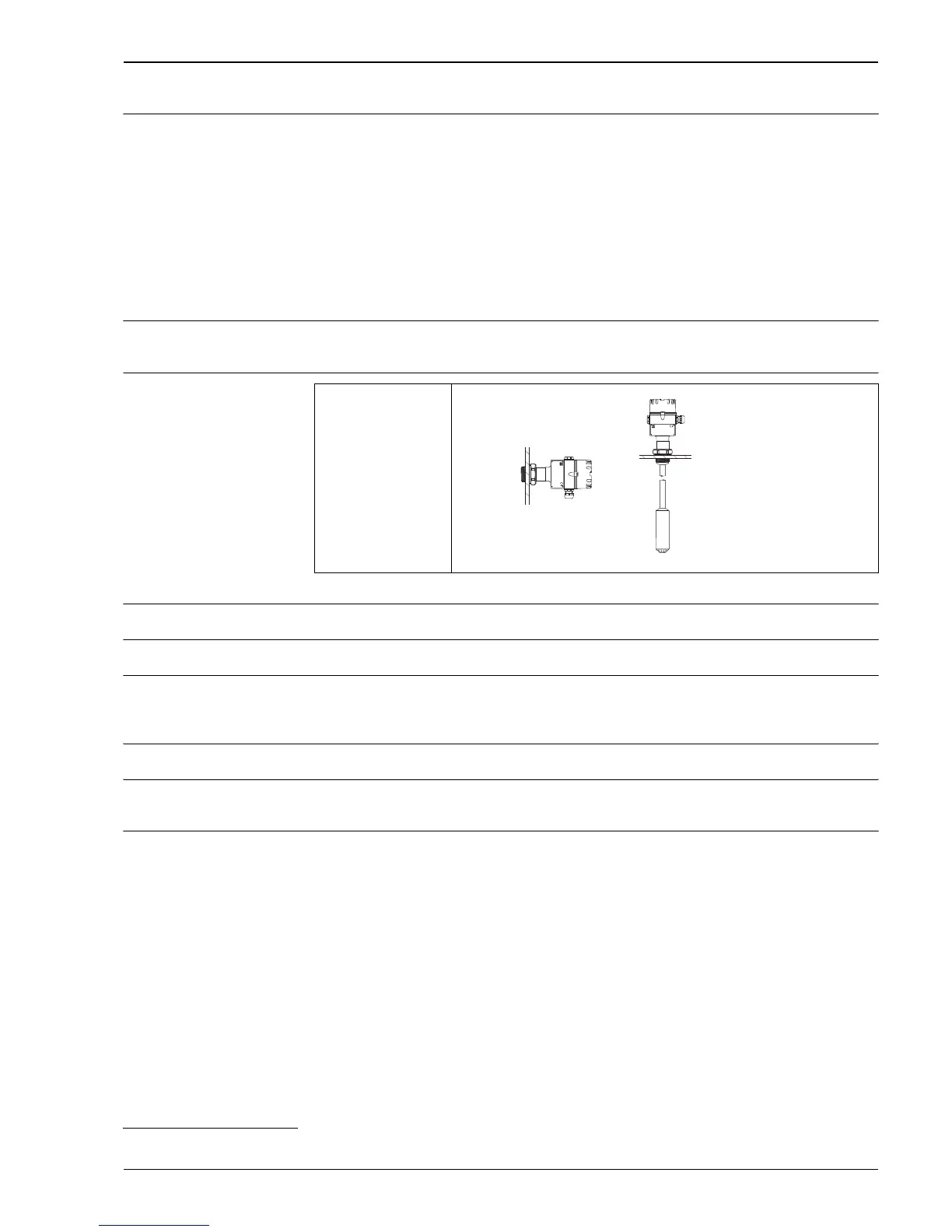

Position during calibration
Zero-point increase 90% of measuring range
Long-term stability ±0.1% of URL
1
per 6 months
Linearity Linearity as per the limit point method:
– ±0.2% of the set span
1
– Optional: ±0.1% of the set span
1
Hysteresis ±0.1% of URL
1
Influence of ambient
temperature
±0.01%/10 K of URL
1
Influence of medium
temperature
±0.1%/10 K of URL
1
➀ DB50(A), DB50L,
DB50S
➁ DB51(A), DB 52(A),
DB53(A)
P01-DB5xxxxx-11-xx-xx-xx-009
ENDRESS+HAUSER DELTAPILOT S
ENDRESS+HAUSER
DELTAPILOT S
➀
➁
1) For an explanation of terms, see Page 13
