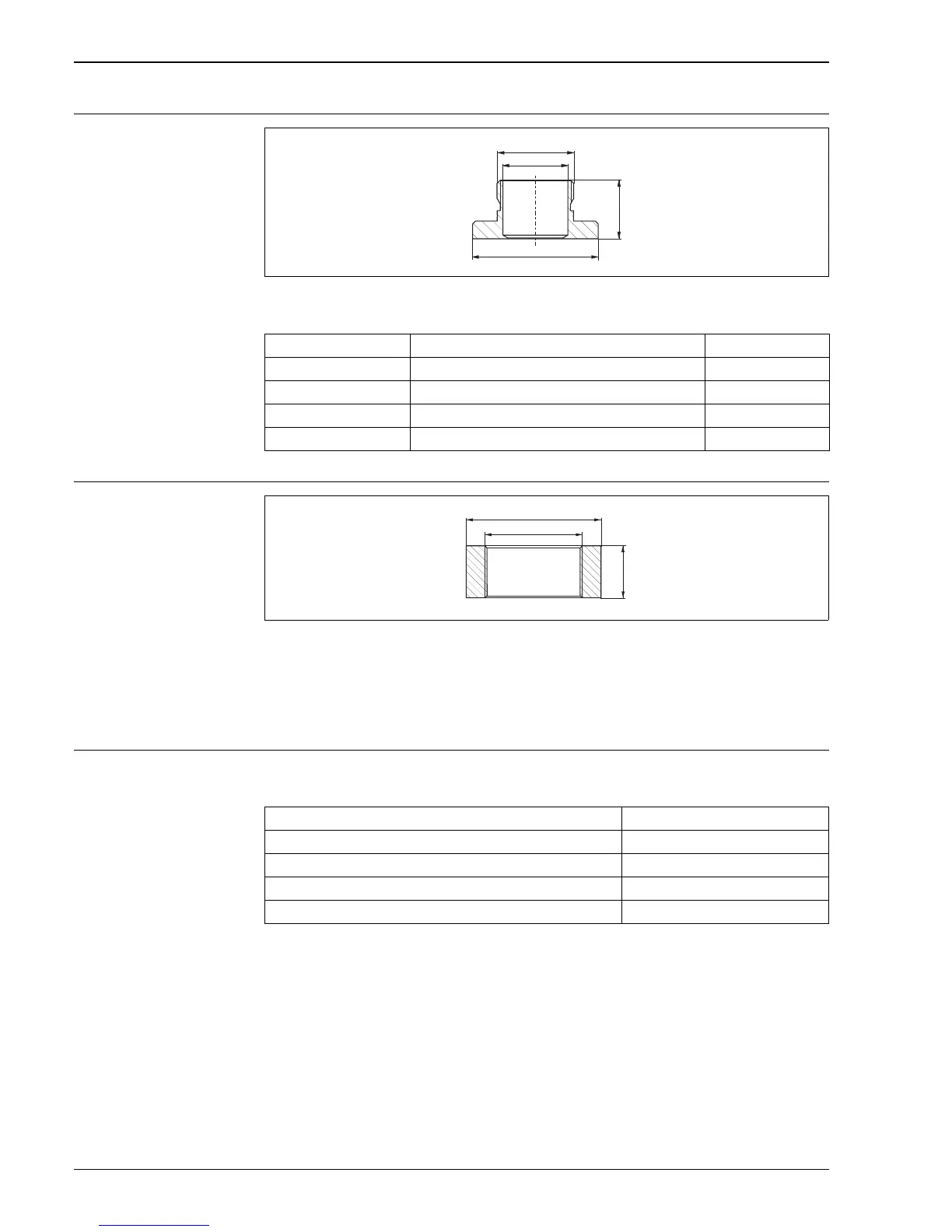

Welding neck adapter for
universal process adapter
P01-PMC45xxx-06-xx-xx-xx-000
Welding neck adapter for flush mounting a Deltapilot S DB50L/DB50S with a universal process adapter
Welding neck adapter thread
ISO G 1 1/2
P01-PMx4xxxx-06-09-xx-xx-000
Welding neck adapter for flush mounting a Deltapilot S DB50 with thread ISO 228 G 1 1/2 A
Order number: 52024469, order number with 3.1 inspection certificate: 52024470
Note!
• Endress+Hauser offers a pressure sensor dummy for the welding necks with order numbers 52024469 and
52024470. Order number for pressure sensor dummy: 52024471
Adapter You can use the following adapters to mount a DB50L with a universal process connection in a DRD, dairy
fitting or Clamp connection:
ø44
39.5
Rd 52 x 1/6
D
Diameter D Material Order number
65 mm AISI 316L 214880-0002
65 mm AISI 316L with inspection certificate EN 10204 3.1 material 52010174
85 mm AISI 316L 52006262
85 mm AISI 316L with inspection certificate EN 10204 3.1 material 52010173
ø65
25
G 1 1/2
Version Order number
DRD 65 mm, AISI 304 (1.4301) 917656-0001
Dairy fitting DIN 11851 DN 40, AISI 304 (1.4301) 917656-0002
Dairy fitting DIN 11851 DN 50, AISI 304 (1.4301) 917656-0000
Tri-Clamp ISO 2852 DN 40-51 (2")/DIN 32676 DN 50, AISI 304 (1.4301) 917650-0002
