Deltapilot S
Endress+Hauser 19
Housing adapter with
mounting bracket for humid,
damp and difficult-to-access
mounting locations
With the housing adapter and mounting bracket, you have the option of mounting the housing with the
electronic insert away from the measuring point. The allows problem-free measurement
• under particularly difficult measuring conditions (in confined or difficult-to-access mounting locations)
• in the event of extreme fluctuations in temperature at the tank wall.
You can operate and control the device quickly and comfortably away from the measuring point by means of
the FHB20 display and operating module or via remote operation. IP 68 ingress protection applies for the
housing adapter.
The mounting bracket is suitable for pipe and wall mounting.
P01-DB5xxxxx-11-xx-xx-xx-006

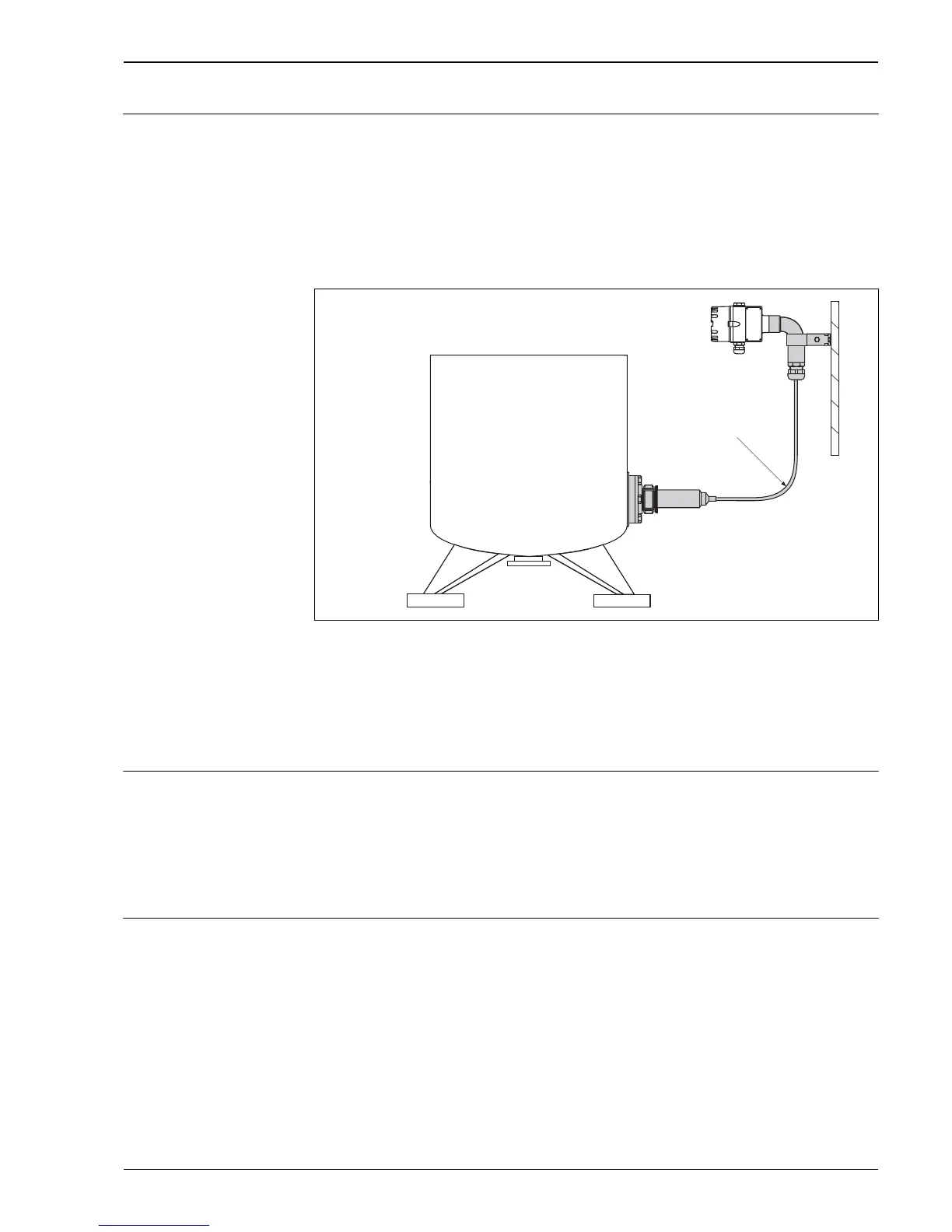

Measuring point with housing adapter and mounting bracket
1 Housing adapter
2 Mounting bracket for pipe and wall mounting
3Pipe bend
Note!
• When mounting, observe a bending radius of at least 200 mm.
Special measuring cells for
substances with hydrogen
formation
In the case of materials in which hydrogen formation occurs (e.g. digested sludge), hydrogen atoms can diffuse
through the metal diaphragm. This can result in incorrect measurement results.
For such instances, Endress+Hauser offers diaphragms with a gold-rhodium coating.
→ Order through 50 "Measuring cell version", type Z "Additional specification". In addition, for version "Z",
quote the order number 52009331.
Note!
• To reduce the formation of hydrogen, you should refrain from using galvanized assemblies.
Special measuring cell for
acids, alkalis or sea water
For acids, alkalis or sea water, Endress+Hauser offers diaphragms with a gold-platinum coating.
→ Order through 50 "Measuring cell version", type Z "Additional specification". In addition, indicate the order
number 52009332 for Version 'Z'.
