Deltapilot S
30 Endress+Hauser

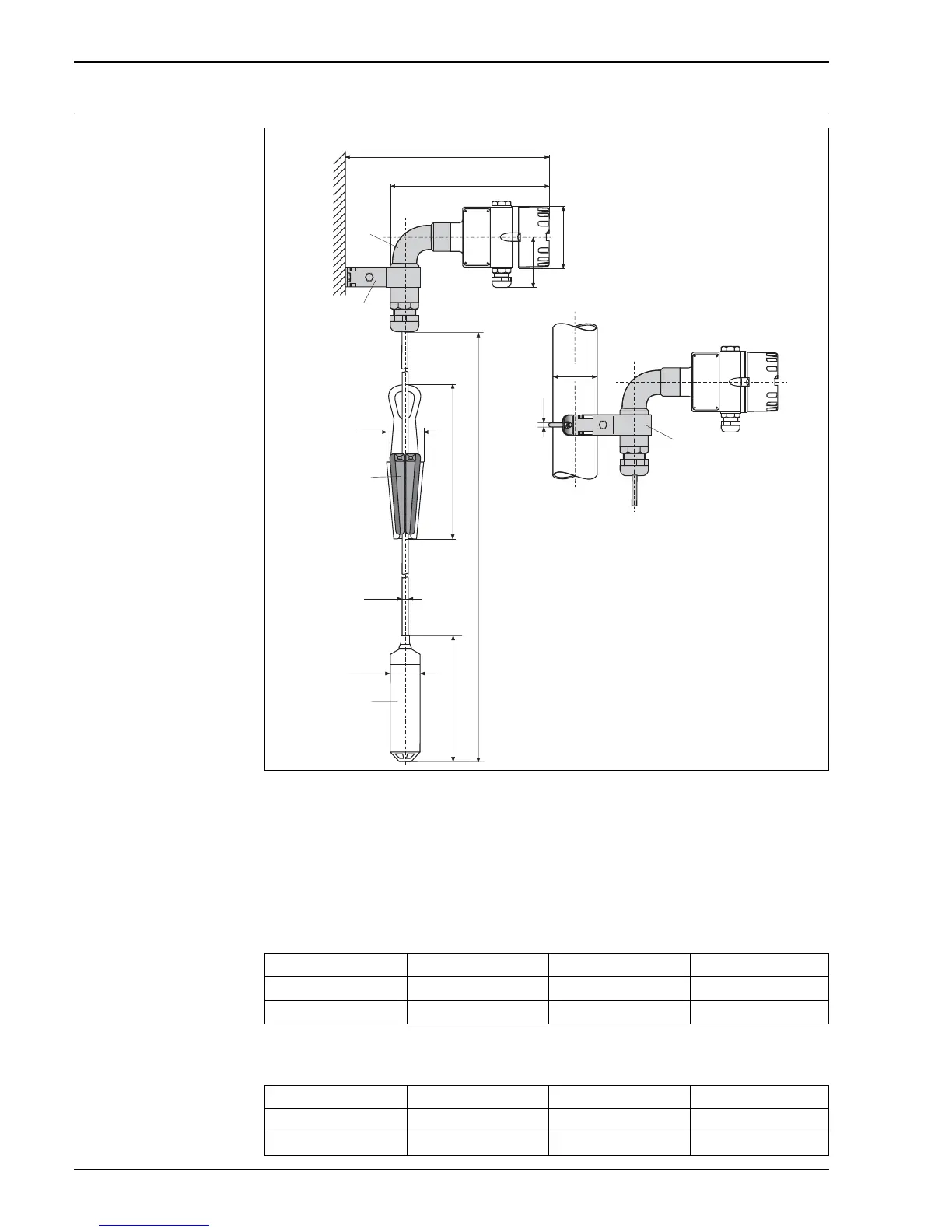

Dimensions of Deltapilot S
DB53 and DB53A (suspension
clamp and mounting bracket)
P01-DB5xxxxx-06-xx-xx-xx-007
DB53 with suspension clamp and mounting bracket
1Pipe bend
2 Mounting bracket for pipe and wall mounting
3 Suspension clamp
4Measuring cell tube
LProbe length:
Without approval, EEx nA II T6: 0.5 to 200 m (20 to 7874 inch)
EEx ia IIC T6, FM IS, CSA IS: 0.5 to 100 m (20 to 3937 inch)
Dimension A
Dimension H
~66
~280
H max. 241
A max. 286
ø86
~
75
ø42.5
2"
ø6
L
ø10.4
240
➁
➀
➂
➃
➁
Cover Aluminum housing Polyester housing Stainless steel housing
Flat 265 mm 273 mm 264 mm
High (with sight glass) 286 mm 273 mm 280 mm
Cover Aluminum housing Polyester housing Stainless steel housing
Flat 219 mm 227 mm 218 mm
High (with sight glass) 240 mm 227 mm 234 mm
