Deltapilot S
Endress+Hauser 31

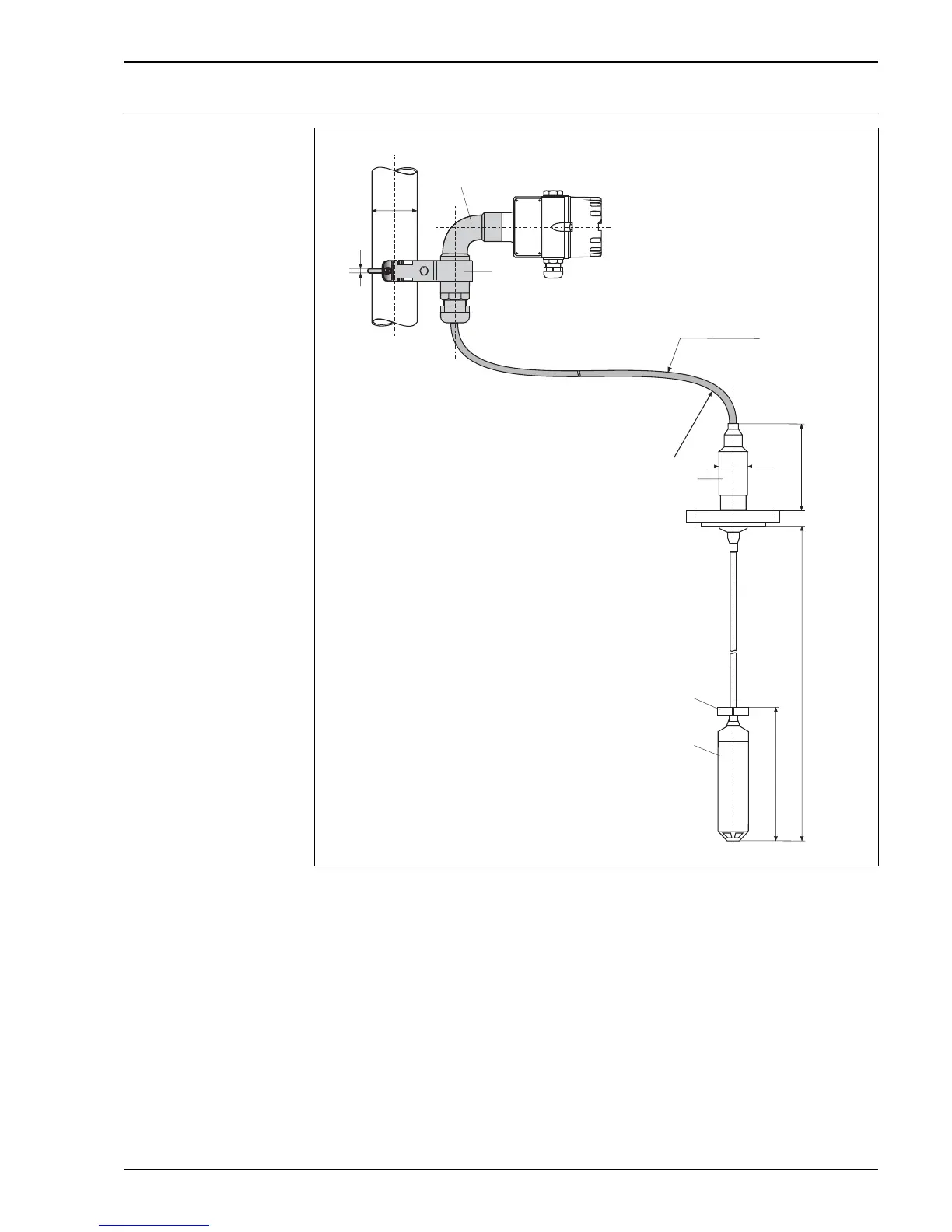

Dimensions of connecting
cable with housing adapter
and mounting bracket
P01-DB5xxxxx-06-xx-xx-xx-013
Connecting cable with housing adapter and mounting bracket, here shown with a DB52
1Pipe bend
2 Mounting bracket for pipe and wall mounting
3 Housing adapter
4 Clamp for clamping fixture
5 Measuring cell tube
LProbe length
Note!
For DB50, DB50L, DB51, DB52, order the housing adapter and the mounting bracket via feature 90
"Additional option" or subsequently as an accessory. See also Page 19 and Page 56, "Housing adapter with
mounting bracket" section.
When using a housing adapter in the EEx ia, FM IS or CSA IS area, the total cable length (connecting cable
(L1) + extension cable (L2)) must not exceed 100 m.
2"
ø6
218
L1 max. 20 m
ø40
257
L2
EEx ia, FM IS, CSA IS:
L1 + L2 100 m (3937 inch)
R 200 mm
