Deltapilot S
Endress+Hauser 25

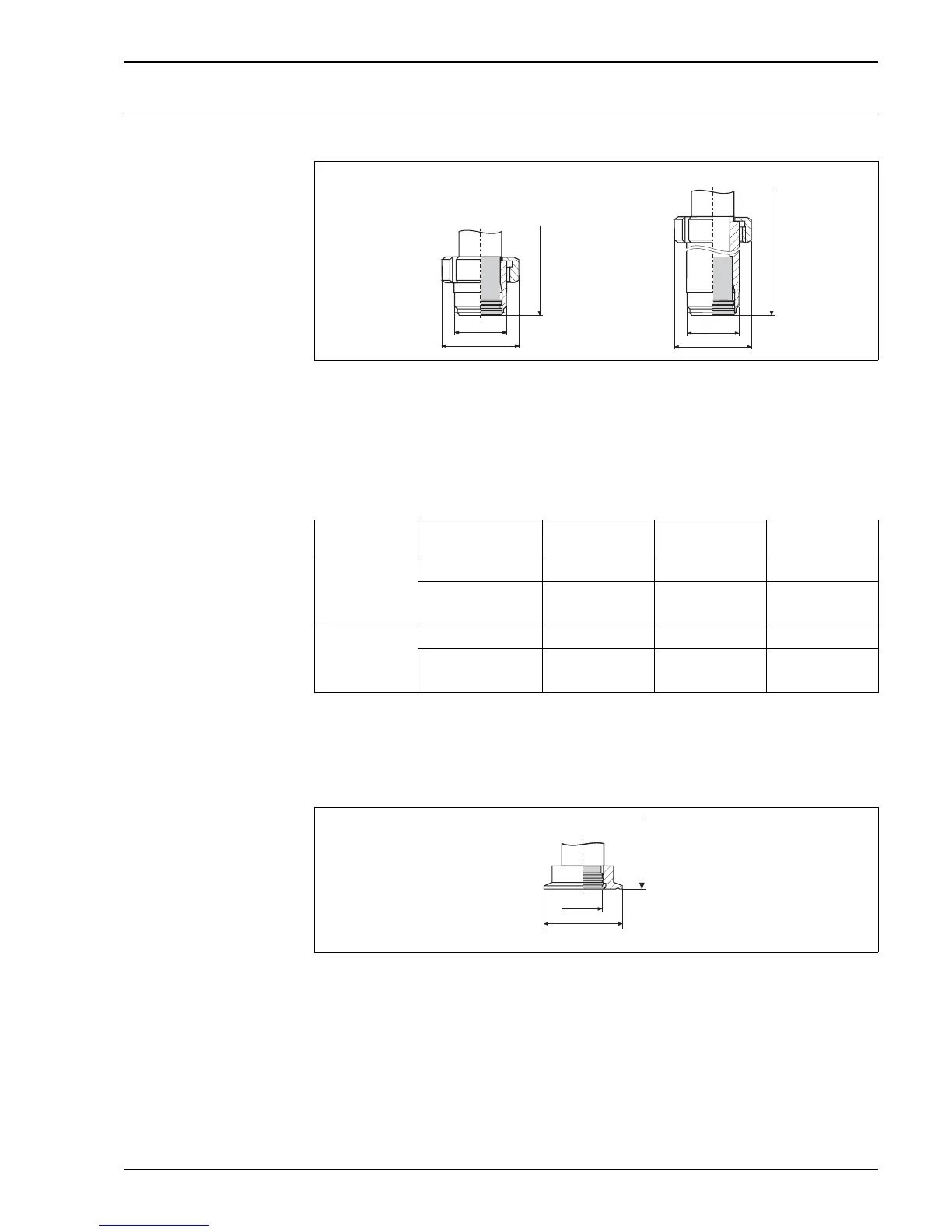

Process connection DB50L
and DB50S (food version)
Universal process adapter
P01-DB5xxxxx-06-xx-xx-xx-021
Process connection DB50L/DB50S, material: AISI 316L/1.4435;
Surface roughness of the surfaces in contact with the medium R
a
≤ 0.8 μm as standard. Lower surface roughness on
request.
1 Version 00: universal process adapter incl. silicone molded seal, 3A
2 Version 57: universal process adapter, extension 6 inch incl. silicone molded seal, 3A
Installation height H, devices with universal process adapter
Tri-Clamp ISO 2852
P01-DB5xxxxx-06-xx-xx-xx-015
Process connection DB50L/DB50S, version 50: Tri-Clamp ISO 2852 DN 40 – DN 51 (2")/DIN 32676 DN 50, EHEDG, 3A;
Material: AISI 316L/1.4435; surface roughness of surfaces in contact with the medium R
a
≤ 0.8 μm as standard. Lower
surface roughness on request.
ø43.5
ø63
➀
ø43.5
ø63
➁
H H
Cover Aluminum housing
[mm]
Polyester housing
[mm]
Stainless steel
housing [mm]
Universal process
adapter
Flat 221 221 209
High (with sight glass)
1
1) Devices with the FHB20 display and operating module are always supplied with a high cover or with a cover with a
sight glass.
232 221 225
Universal process
adapter with 6 inch
extension
Flat 318 318 306
High (with sight glass) 329 318 322
H
ø35.8
ø64
