Deltapilot S
28 Endress+Hauser

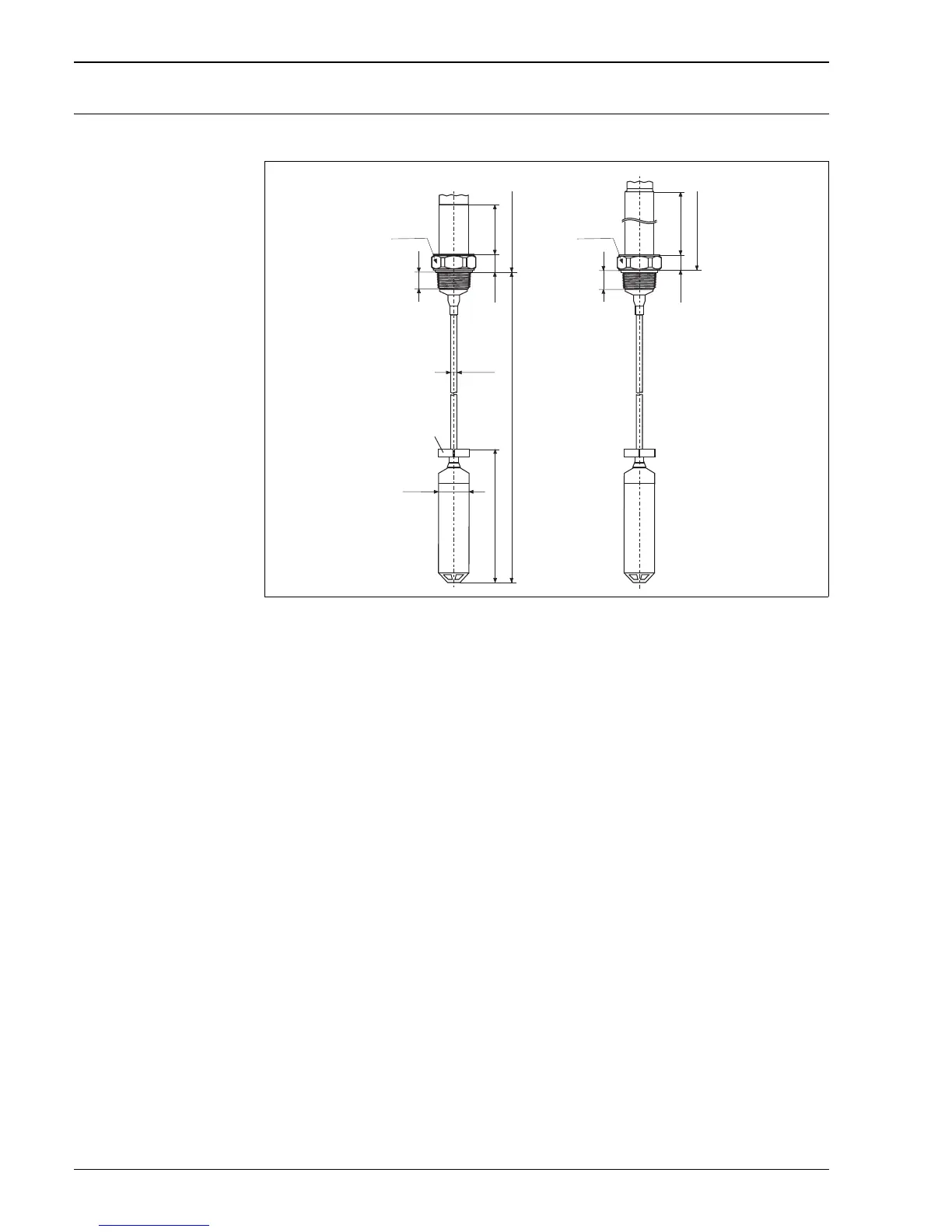

Dimensions of Deltapilot S
DB52 and DB52A (cable
version)
Threaded connection ISO 228 and NPT
P01-DB5xxxxx-06-xx-xx-xx-028
DB52(A), cable version with thread
1 DB52(A), thread G 1 1/2 and 1 1/2 NPT without flame barrier
2 DB52(A), thread G 1 1/2 and 1 1/2 NPT with flame barrier
(flame barrier for use in hazardous areas, Zone 0)
3 Clamp for clamping fixture
H For installation height H, see Page 22
LProbe length:
Without approval, EEx nA II T6: 0.5 to 200 m (20 to 7874 inch)
EEx ia IIC T6, FM IS, CSA IS: 0.5 to 100 m (20 to 3937 inch)
➀
46.7
22.5
25
ø10.4
ø42.5
257
L
H
➂
SW 60
➁
146
22.5
25
H
SW 60
