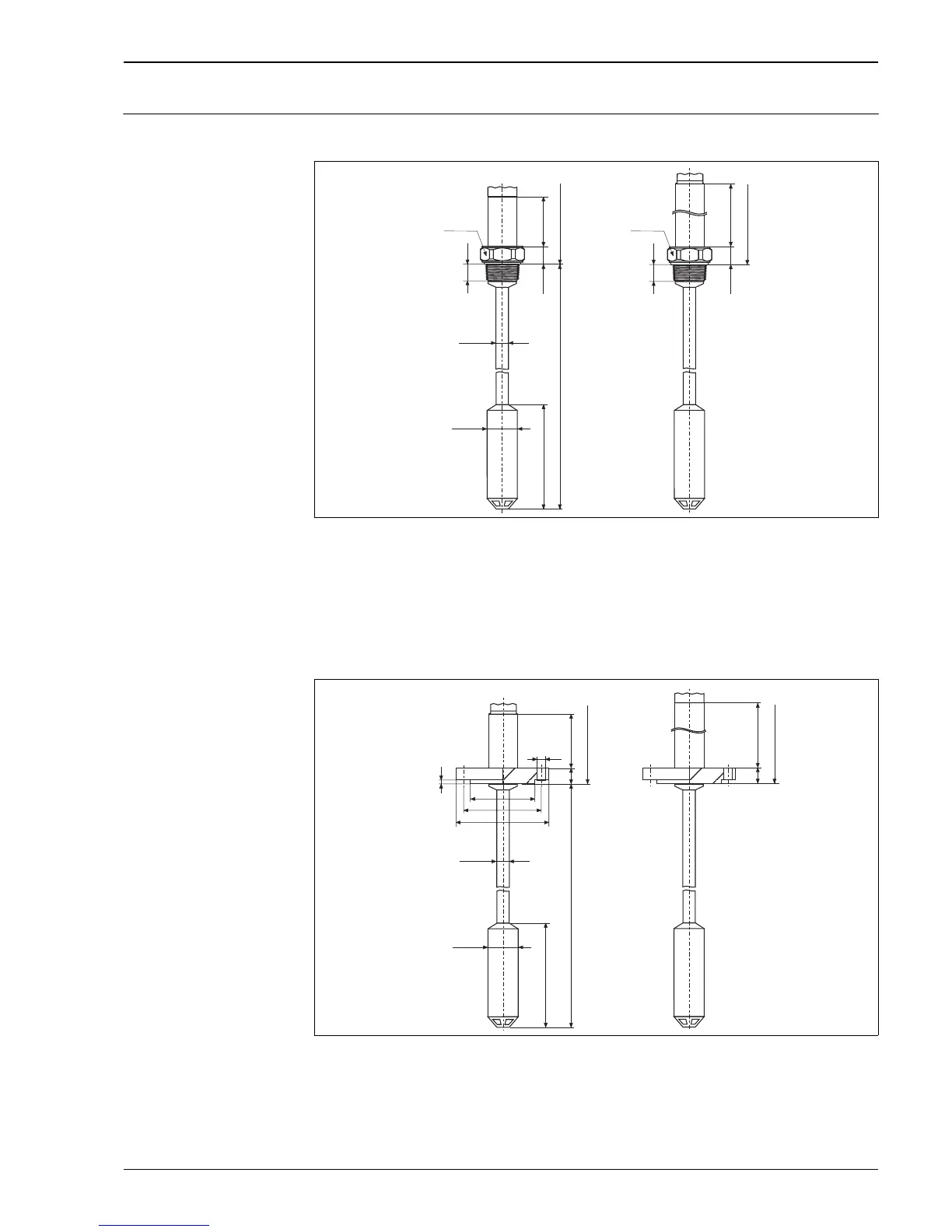

Process connections DB51 and
DB51A (rod/pipe version)
Threaded connection ISO 228 and NPT
P01-DB5xxxxx-06-xx-xx-xx-026
DB51(A), rod version with thread
1 DB51(A), thread G 1 1/2 or 1 1/2 NPT without flame barrier
2 DB51 (A), thread G 1 1/2 or 1 1/2 NPT with flame barrier
(flame barrier for use in hazardous areas, Zone 0)
H For installation height H, see Page 22
EN/DIN, ANSI and JIS flanges
P01-DB5xxxxx-06-xx-xx-xx-027
DB51(A), rod version with flange
1 DB51(A), flange without flame barrier
2 DB51(A), flange with flame barrier
(flame barrier for use in hazardous areas, Zone 0)
H For installation height H, see Page 24
→ For process connection dimensions, see Page 23 ff.
➁
146
22.5
25
H
SW 60
ø42.5
➀
46.7
22.5
25
H
ø17.2
230
DB 51: L = 400…4000 mm
DB 51 A: L = 16…160 inch
SW 60
➁
185
b
H
➀
k
D
f
g
2
55.7
b
H
g
ø42.5
ø17.2
230
DB 51: L = 400…4000 mm
DB 51 A: L = 16…160 inch
