Appendix Ecograph T, RSG35
150 Endress+Hauser

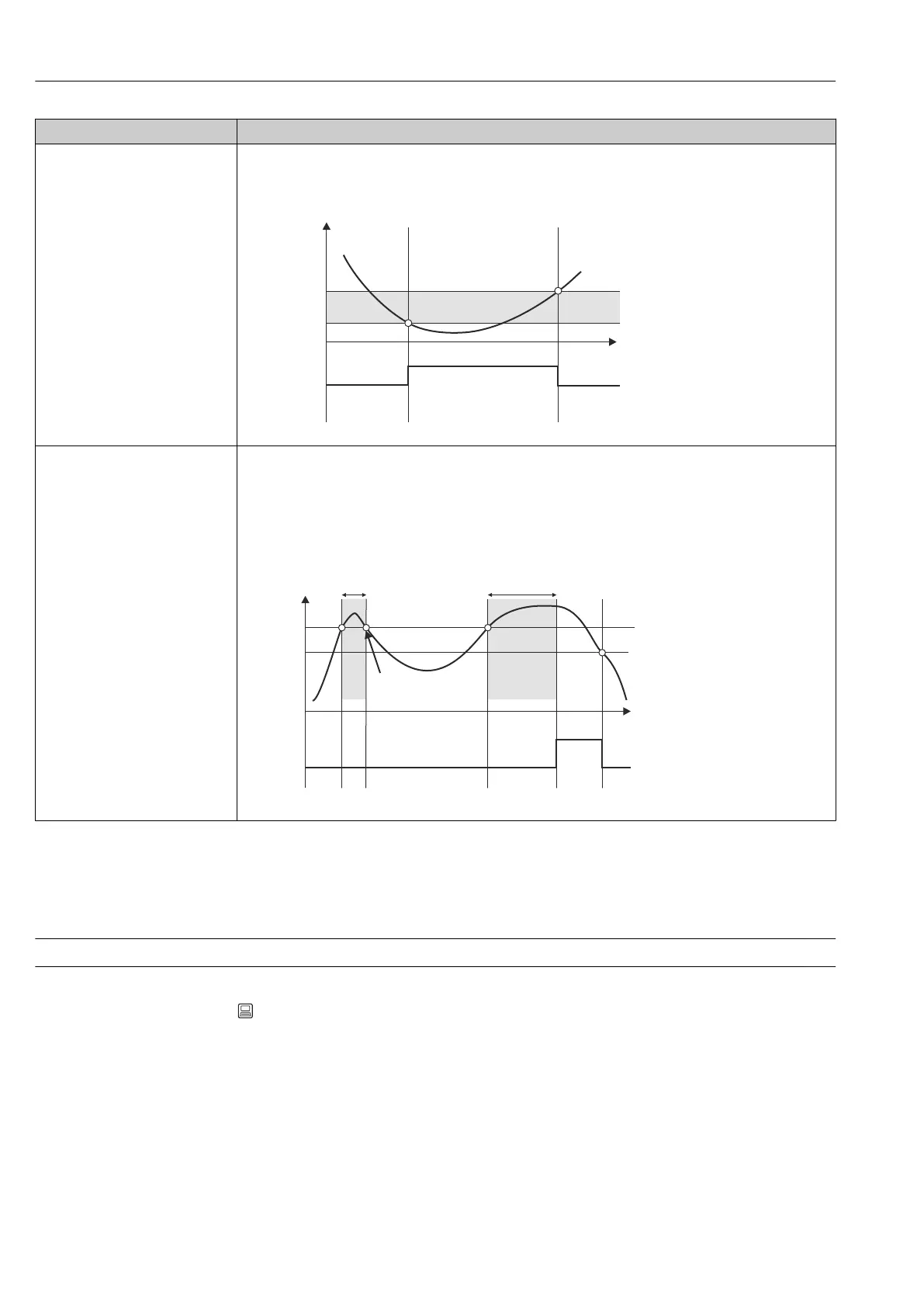

Set point type/function Description
Lower set point The limit is active if the value drops below the configured value. The limit value is switched off if the limit value,
including hysteresis, is exceeded.
t
Measured value
Threshold
“off”
Hysteresis
Setpoint
Setpoint “on”
Setpoint “off”
A0010186-EN
Special case: Hysteresis and delay
for one limit value
In the special case that hysteresis and limit value delay are activated, one limit value is switched according to
the following principle. If hysteresis and limit value delay are activated, the delay becomes active when a limit
value is exceeded and measures the time from which the value is exceeded. If the measured value falls below
the limit value, the delay is reset. This also occurs if the measured value falls below the limit value, but
continues to be higher than the set hysteresis value. When the limit value is exceeded again, the time delay
once more becomes active and starts measuring from 0.
t
Measured
value
Hysteresis
Setpoint
Delay
Delay time
is reset
Delay
Setpoint
active
Setpoint
not active
A0010193-EN
Factory setting Switched off
Identifier
Navigation Expert → Application → Limits → Limit x → Identifier
Direct access code: 450015-0xx
Examples: Set point 1: 450015-000; Set point 30: 450015-029
Description Name of the set point for identification purposes.
User entry Text (max. 16 characters)
Factory setting Limit x
