Installation Smartec S CLD134
20 Endress+Hauser
Post mounting
A mounting kit for installing the housing on horizontal or vertical posts or pipes (max. Ø 60 mm /
Ø 2.36") is available as an accessory (see chapter "Accessories").
a0004902

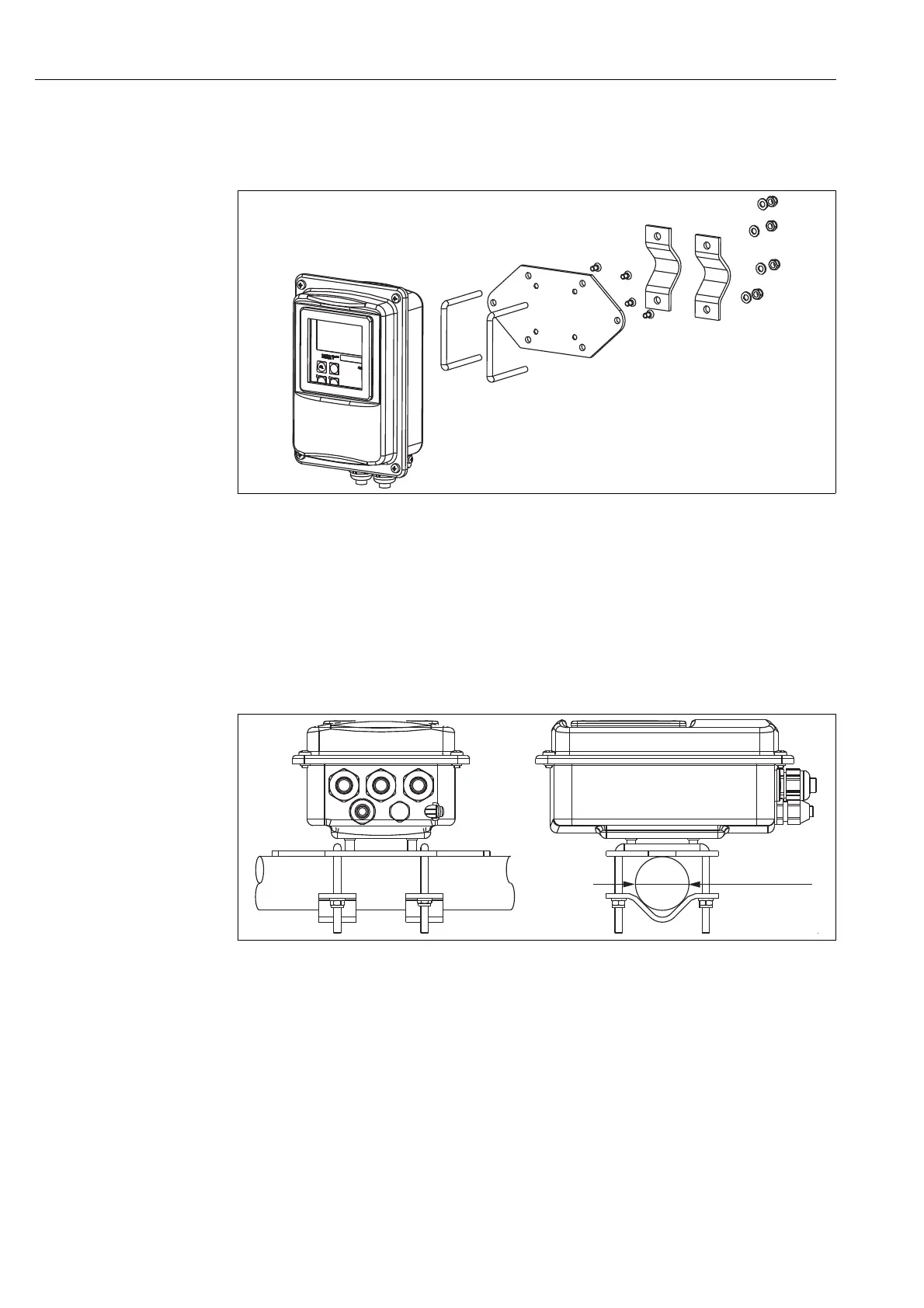

Fig. 15: Mounting kit for installing the CLD134 separate version on posts
!
Note!
For use in hygienic sensitive areas, shorten the threads as much as possible.
1. Remove the mounting plate.
2. Insert the holding bars through the pre-drilled holes of the mounting plate and screw the
mounting plate onto the transmitter.
3. Use the brackets to install the Smartec S on the post or pipe (Fig. 16).
a0005634
Fig. 16: Post mounting of CLD134 separate version
