EnGenius ECB3500 User Manual

11b/g Wireless Long Range Multi-function 7+1 AP Version 1.1
105

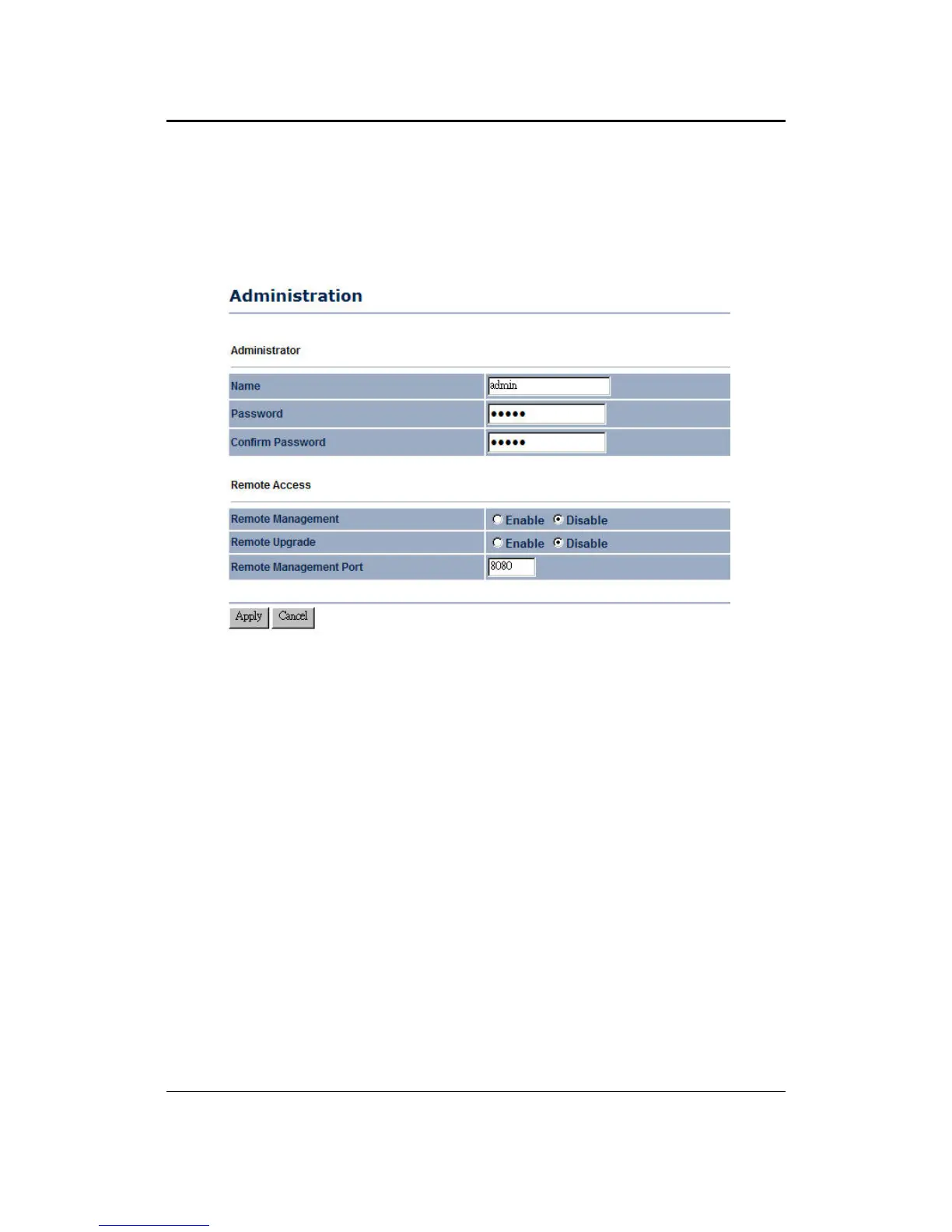

9.6.1 Administration
 Click on the Administration link under the Management menu. This option allows
you to create a user name and password for the device. By default, this device is
configured without a user name and password admin. For security reasons it is
highly recommended that you create a new user name and password.
 Name: Specify a user name into the first field.
 Password: Specify a password into this field and then re-type the password into the
Confirm Password field.
 Remote Management: Choose to enable or disable remote management.
 Remote Upgrade: Choose to enable or disable remote firmware upgrade.
 Remote Management Port: Specify a port for remote management. For example, if
you specify 8080, then you will need to specify <ip address>:<port>
192.168.1.1:8080 to connect to the web interface of the device.
 Click on the Apply button to save the changes.
9.6.2 SNMP Settings
 Click on the SNMP Settings link under the Management menu. This option allows
you to assign the contact details, location, community name and trap settings for
SNMP. This is a networking management protocol used to monitor network-attached
devices. SNMP allows messages (called protocol data units) to be sent to various
parts of a network. Upon receiving these messages, SNMP-compatible devices
(called agents) return data stored in their Management Information Bases. .

EnGenius ECB3500 Specifications

General

Modulation	16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, QPSK
Frequency band	2.4 GHz
Channels quantity	13 channels
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	108 Mbit/s
Wireless technology	802.11 b/g
Antenna features	Detachable antenna
Antennas quantity	2
Antenna connector type	TNC
Antenna gain level (max)	5 dBi
Internal	No
Certification	FCC, CE
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	1
Security algorithms	128-bit WEP, 152-bit WEP, 64-bit WEP, 802.1x RADIUS, SSID, WPA, WPA-AES, WPA-PSK, WPA-TKIP
Operating temperature (T-T)	0 - 45 °C
Storage relative humidity (H-H)	-20 - 70 %
Operating relative humidity (H-H)	5 - 95 %
Flash memory	4 MB
Internal memory	32 MB
Input current	1 A
AC input voltage	12 V

Weight and Dimensions

Dimensions (WxDxH)	120 x 120 x 50 mm
